CYLINDER

DR-Z400S 2009 (K9) USA (E03) DRZ400S DR Z400S

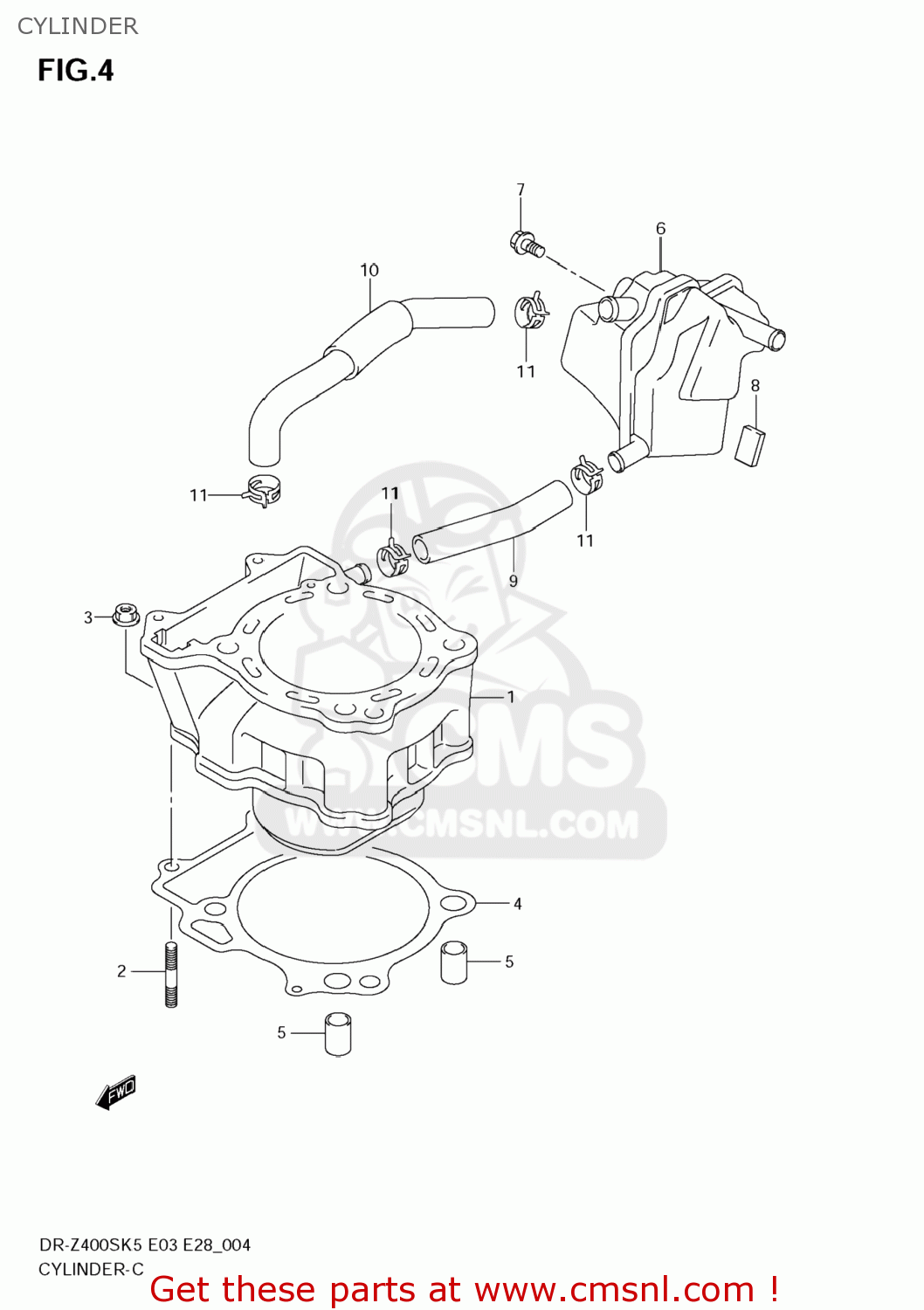

Cylinder diagram DR-Z400S 2009 (K9) USA (E03) DRZ400S DR Z400S

CYLINDER DR-Z400S 2009 (K9) USA (E03) DRZ400S DR Z400S

CYLINDER DR-Z400S 2009 (K9) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

1121029F200F0
ref: 1

CYLINDER

€ 467.00

2

014210625B
ref: 2

BOLT,STUD

€ 2.50

3

083161006B
ref: 3

NUT

€ 2.50

4

1124129F11
ref: 4

GASKET,CYLINDER (NAS)

€ 19.00

5

0421113189
ref: 5

PIN

€ 2.50

6

1133029F00
ref: 6

TANK,OIL RETURN

€ 35.00

7-1

0155006103
ref: 7-1
01550-0610A

BOLT

€ 2.50

7-2

015500610A
ref: 7-2

BOLT

€ 2.00

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

1133229F00
ref: 9

HOSE,BREATHER

€ 9.00

10

1133329F00
ref: 10

HOSE,BREATHER

€ 17.00

11

0940115404
ref: 11

CLIP

€ 2.50
