TAIL LAMP

DR-Z400S 2009 (K9) USA (E03) DRZ400S DR Z400S

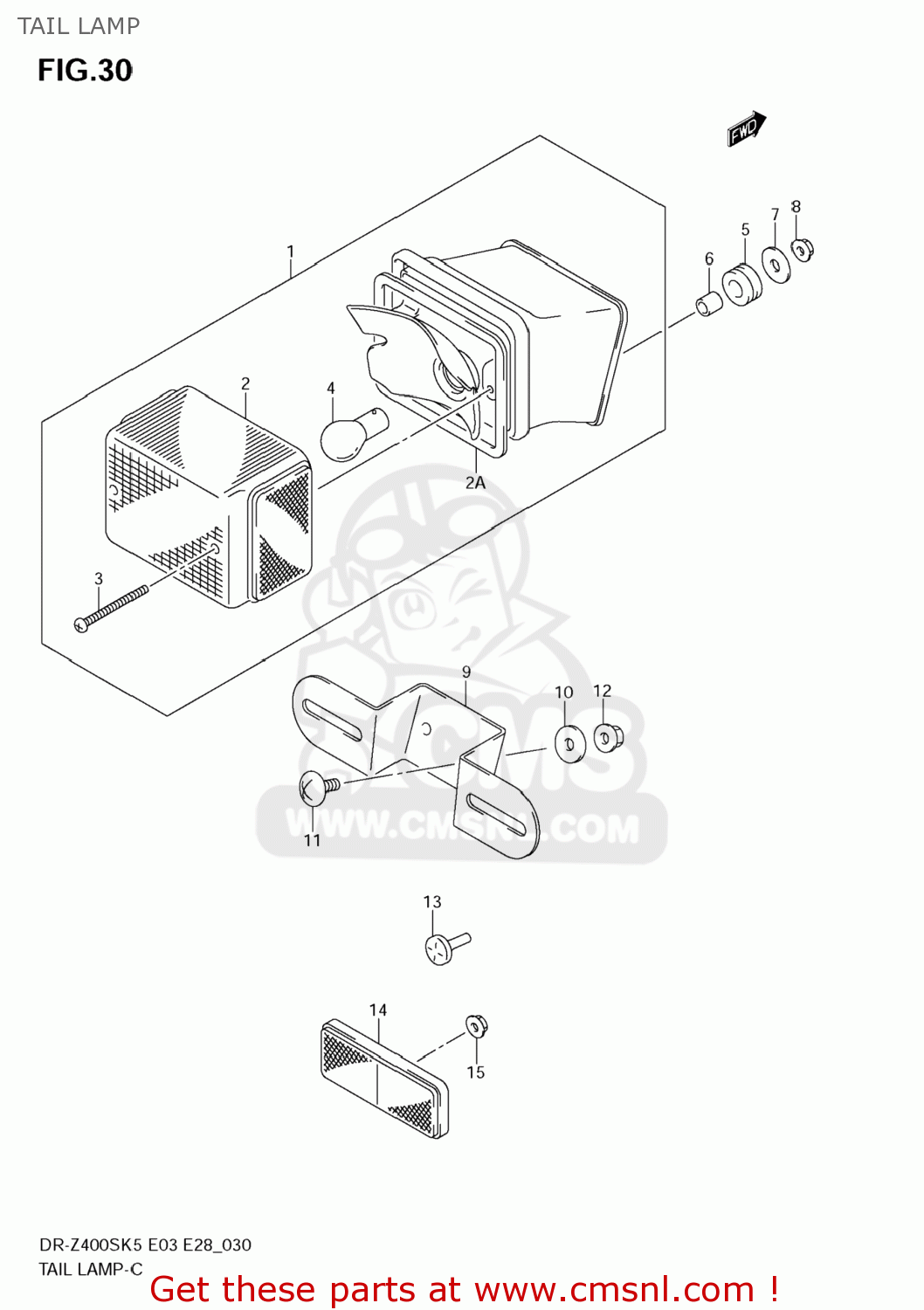

Tail lamp diagram DR-Z400S 2009 (K9) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

3571029F30
ref: 1

LAMP ASSY,RR COMBINATION

€ 120.00

3571242A30
ref: 2

LENS

€ 26.00

3571314D30
ref: 2A

GASKET,LENS (NAS)

€ 5.00

0912504501
ref: 3

SCREW(4X45)

€ 3.00

0947112083
ref: 4
09471-12128

BULB(12V21/5W)

€ 6.00

0932010501
ref: 5

CUSHION

€ 5.50

0918006310
ref: 6

SPACER(6.5X10X10)

€ 2.00

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

083161006B
ref: 8

NUT

€ 2.50

3592729F10
ref: 9

BRACKET,LICENSE PLATE

€ 6.50

0916006088
ref: 10

WASHER(6.5X20X1.6)

€ 2.00

021420612B
ref: 11

SCREW

€ 2.00

083161006B
ref: 12

NUT

€ 2.50

0932106026
ref: 13

CUSHION

€ 3.50

3597007F01
ref: 14

REFLECTOR ASSY,RR

€ 20.50

083161005B
ref: 15

NUT

€ 2.50
