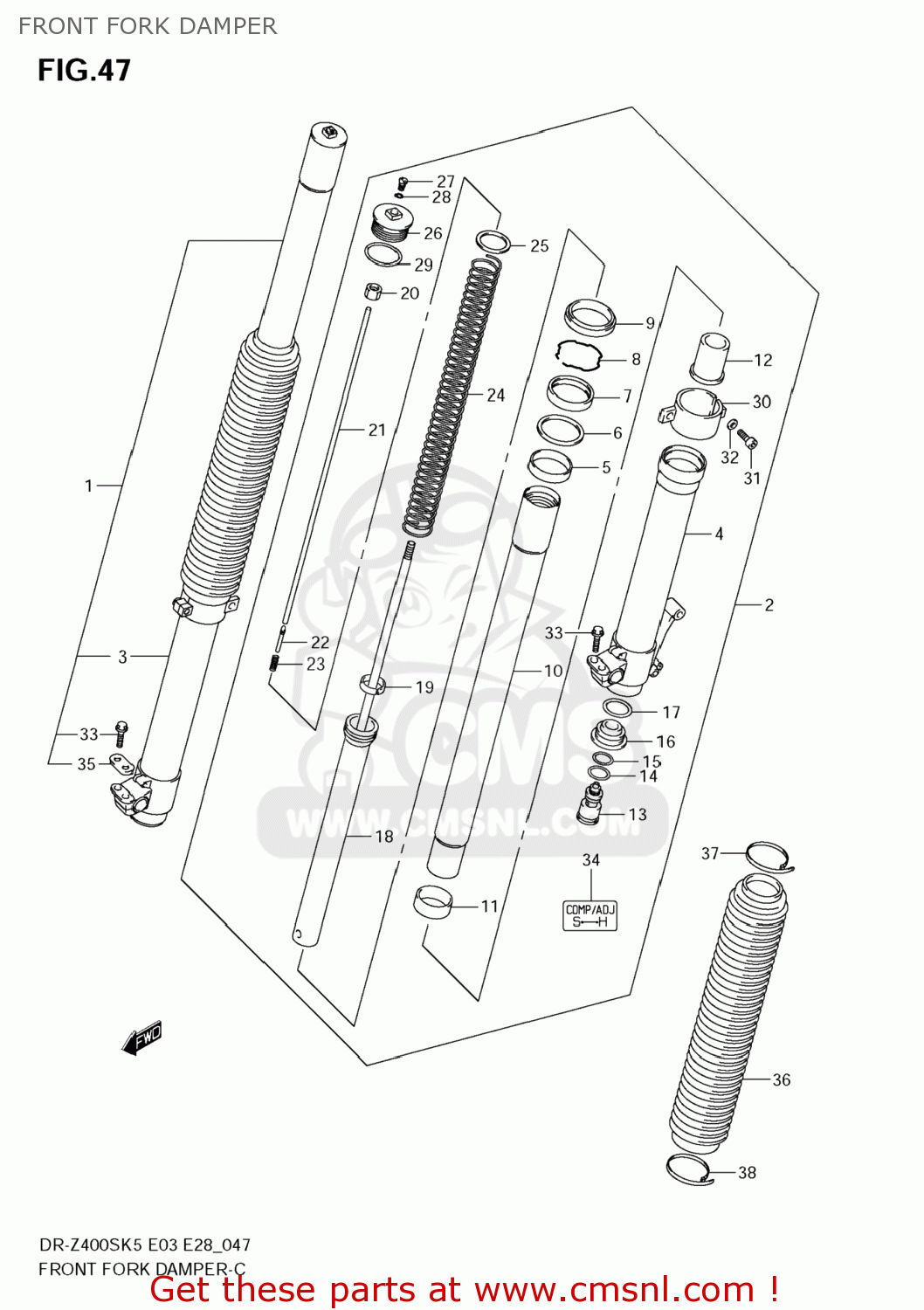

FRONT FORK DAMPER

ref

part #

description

quantity

1

5110329F60
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,146.50

2

5110429F60
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,146.50

3

5113029F60
ref: 3

TUBE,OUTER,R

€ 749.00

4

5114029F60
ref: 4

TUBE,OUTER,L

€ 814.00

5

5116736E80
ref: 5

BUSH,GUIDE

€ 14.00

6

5115836E00
ref: 6

SPACER,SEAL

€ 5.00

7

5115336E00
ref: 7

SEAL,OIL

€ 19.00

8

5115636E00
ref: 8

RING,STOPPER

€ 4.50

9

5117336E00
ref: 9

SEAL,DUST

€ 19.50

10

5111029F00
ref: 10

TUBE,INNER

€ 489.00

11

5112136E40
ref: 11

BUSH,SLIDE

€ 19.00

12

5119529F00
ref: 12

PIECE,OIL LOCK

€ 53.00

13

5117029F00
ref: 13

BOLT,CTR

€ 196.50

14

5117529F00
ref: 14

O RING

€ 3.50

15

5117429F00
ref: 15

O RING

€ 3.50

16

5120529F00
ref: 16

PLATE,END

€ 44.00

17

5111727C40
ref: 17

O RING

€ 3.50

18

5119029F00
ref: 18

ROD,FR DAMPER

€ 490.00

19

5112229F00
ref: 19

BUSH,SLIDE

€ 14.50

20

5182733E00
ref: 20

NUT

€ 11.00

21

5119129F00
ref: 21

ROD,PUSH

€ 13.50

22

5119205D80
ref: 22

NEEDLE

€ 11.00

23

5119328E00
ref: 23

SPRING,PUSH ROD

€ 3.50

24

5117129F60
ref: 24

SPRING,FR(K=8.63N/0.88KG)

€ 69.00

25

5119236E00
ref: 25

JOINT,SPRING

€ 5.50

26

5135129F00
ref: 26

BOLT,FORK

€ 117.50

27

5135728E30
ref: 27

BOLT,PLUG

€ 8.00

28

5135828E30
ref: 28

O RING,PLUG

€ 2.50

29

5111736E00
ref: 29

O RING

€ 3.50

30

5120329F00
ref: 30

HOLDER,BOOT

€ 31.00

31

0713005207
ref: 31

BOLT

€ 2.00

32

0916005044
ref: 32

WASHER(5.5X10X1)

€ 1.50

33

5132127C40
ref: 33

BOLT,HANDLE HOLDER(8X35)

€ 3.00

34

5114929E40
ref: 34

LABEL

€ 3.50

35

5151629F00
ref: 35

COVER,AXLE HOLDER

€ 7.00

36

5157129F00019
ref: 36

BOOT

€ 57.50

37

5157529F00
ref: 37

BAND,BOOT UPR

€ 10.50

38

5157629F00
ref: 38

BAND,BOOT LWR

€ 6.50
