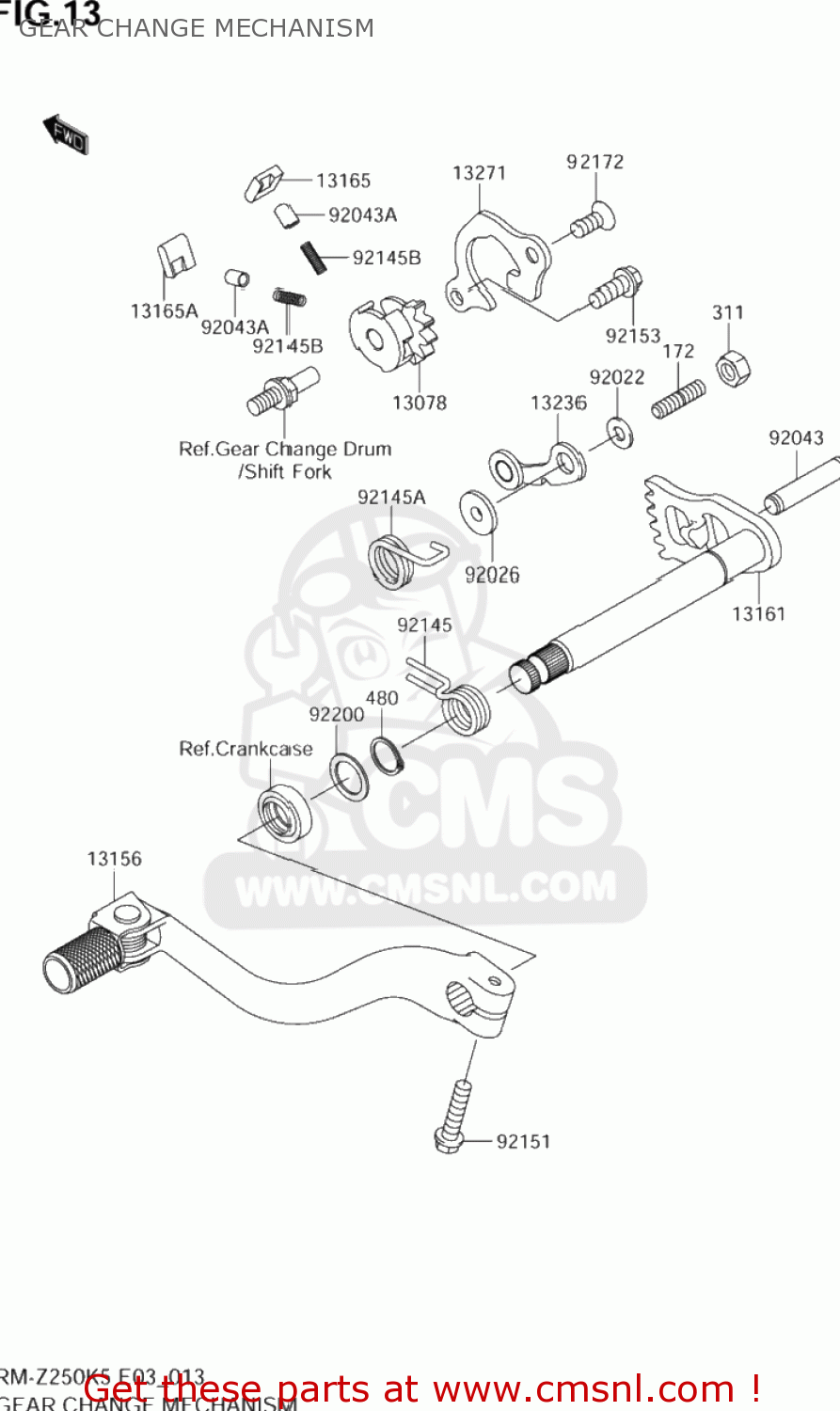

GEAR CHANGE MECHANISM

ref

part #

description

quantity

172

KK172G0612
ref: 172
K172B-A0612

BOLT-STUD,6X12

€ 1.50

311

KK311G0600
ref: 311
K311B-A0600

NUT-HEX,6MM

€ 1.50

480

KK480J1400
ref: 480

CIRCLIP-TYPE-C,14MM

€ 1.00

13078

K130780003
ref: 13078

RATCHET

€ 37.50

13156

K131560041
ref: 13156

LEVER-CHANGE,PEDAL

€ 54.50

13161

K131610016
ref: 13161

LEVER,CHANGE S

€ 47.50

13165

K131651162
ref: 13165

PAWL

€ 7.00

13165A

K131651163
ref: 13165A

PAWL

€ 7.00

13236

K132360041
ref: 13236

LEVER

€ 6.50

13271

K132710061
ref: 13271
K1327-10681

PLATE,PAWL GUI

€ 13.50

92022

K920221827
ref: 92022

WASHER,6X12.8X1.2

€ 2.50

92026

K920261217
ref: 92026

SPACER

€ 3.00

92043

K920430017
ref: 92043

PIN,8X39

€ 5.00

92043A

K920431676
ref: 92043A

PIN,PLUNGER

€ 6.50

92145

K921450052
ref: 92145

SPRING,RETURN

€ 8.00

92145A

K921450154
ref: 92145A

SPRING

€ 7.50

92145B

K921451490
ref: 92145B

SPRING

€ 2.50

92151

K921511930
ref: 92151

BOLT

€ 2.50

92153

K921530825
ref: 92153

BOLT,6X16

€ 1.50

92172

K921720110
ref: 92172

SCREW,6X14

€ 1.50

92200

K922000029
ref: 92200

WASHER,14.2X20X1

€ 2.50
