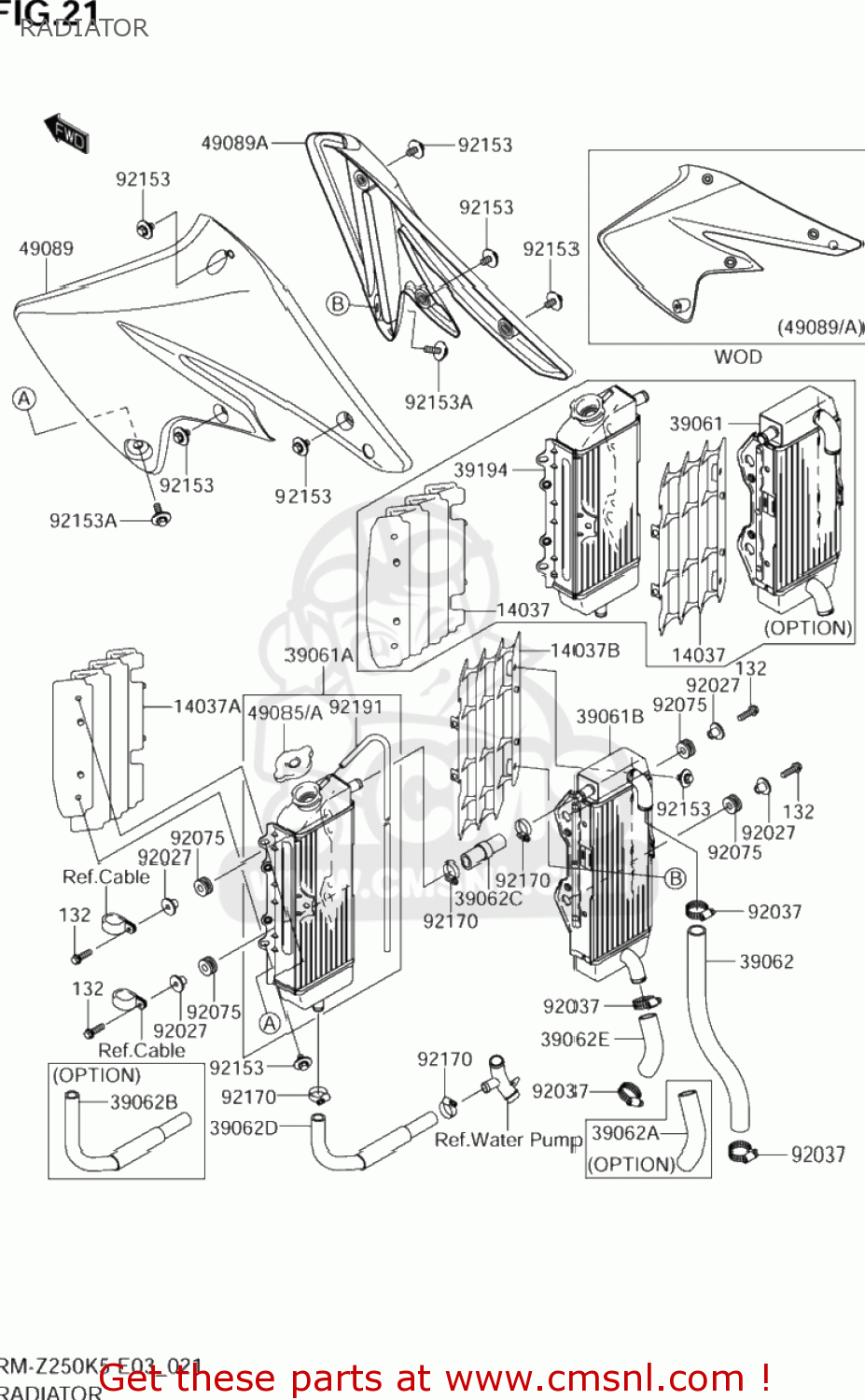

RADIATOR

ref

part #

description

quantity

132

KK132L0620
ref: 132
K132B-B0620

BOLT-FLANGED-SMALL,6X20

€ 2.50

14037

KK140370012RZ
ref: 14037

SCREEN

€ 17.50

14037A

KK140370029RZ
ref: 14037A

SCREEN,LH

€ 17.00

14037B

KK140370030RZ
ref: 14037B

SCREEN,RH

€ 19.00

39061

K390610004
ref: 39061

RADIATOR-ASSY,RH

€ 188.50

39061A

K390610044
ref: 39061A

RADIATOR-ASSY

€ 214.50

39061B

K390610045
ref: 39061B

RADIATOR-ASSY,RH,CORE:260MM

€ 219.00

39062

K390620012
ref: 39062

HOSE-COOLING,HEAD-RADIATOR RH

€ 22.00

39062A

K390620040
ref: 39062A

HOSE-COOLING,RADIATOR RH-P/W

€ 9.50

39062B

K390620041
ref: 39062B

HOSE-COOLING,RADIATOR LH-P/W

€ 17.50

39062C

K390620044
ref: 39062C

HOSE COOLING,RADIATOR L-R HIGH

€ 4.00

39062D

K390620076
ref: 39062D

HOSE-COOLING,CORE:260MM

€ 18.50

39062E

K390620082
ref: 39062E

HOSE,COOLING,CORE:260MM

€ 13.50

39194

K391940006
ref: 39194

RADIATOR-ASSY(SUB)

€ 357.50

49085

K490851070
ref: 49085

CAP-ASSY-PRESSURE,P1.1

€ 25.00

49085A

K490851073
ref: 49085A

CAP-ASSY-PRESSURE,P1.6

€ 47.50

49089

K490890022267
ref: 49089

SHROUD ENGINE,LH,C.YELLOW

€ 44.00

49089A

K490890023267
ref: 49089A

SHROUD ENGINE,RH,C.YELLOW

€ 40.00

92027

KK92027194
ref: 92027

COLLAR,L=11.1

€ 3.00

92037

K920371589
ref: 92037

CLAMP,COOLING HOSE

€ 10.00

92075

KK92075209
ref: 92075

DAMPER

€ 4.00

92153

K921530503
ref: 92153

BOLT,6X12

€ 1.50

92153A

K921530864
ref: 92153A

BOLT,6X20

€ 5.50

92170

K921701283
ref: 92170

CLAMP

€ 8.00

92191

K921911211
ref: 92191

TUBE,6X9X700

€ 6.00
