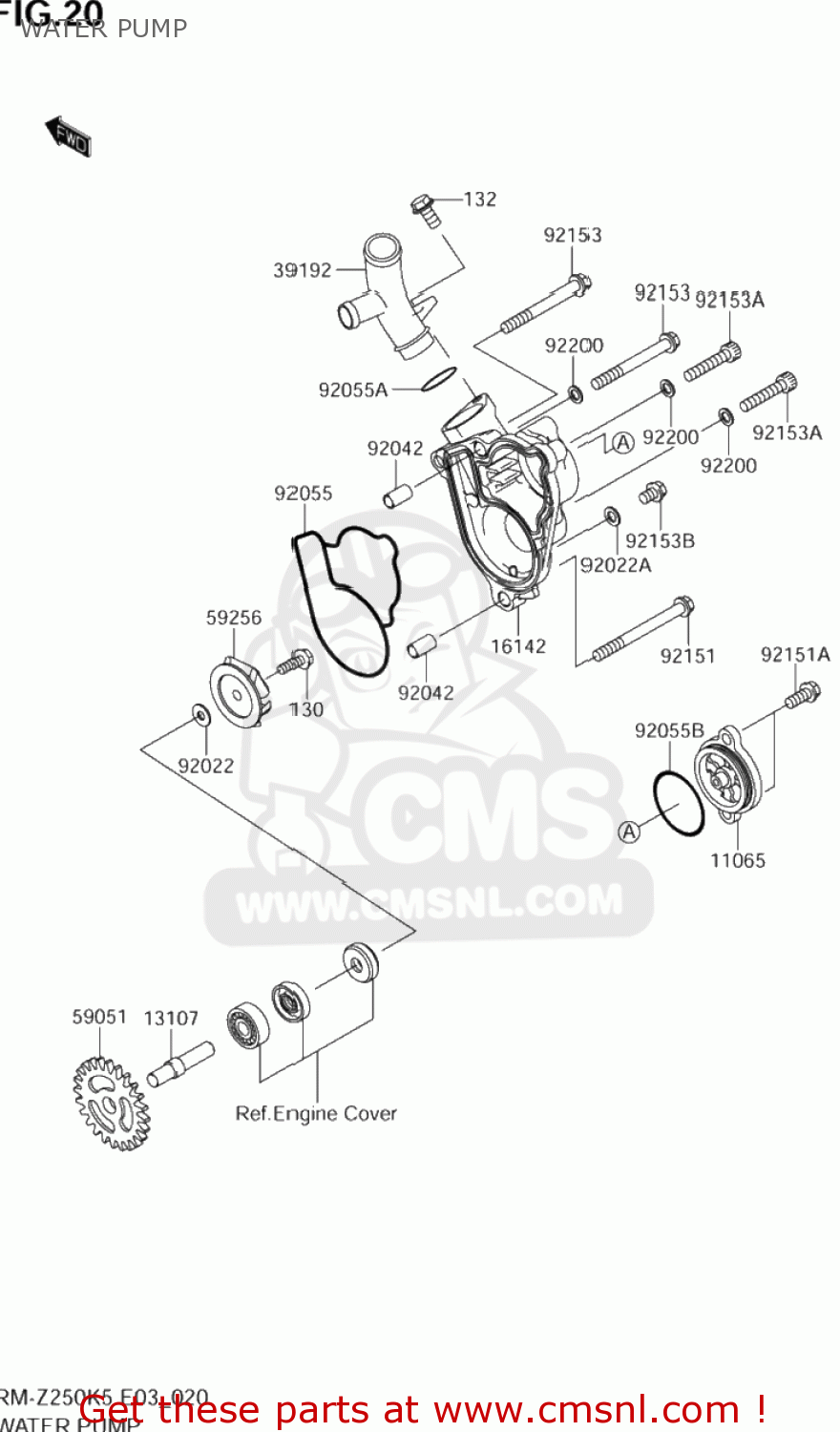

WATER PUMP

ref

part #

description

quantity

130

KK130Z0514
ref: 130
K130C-D0514

BOLT-FLANGED

€ 1.50

132

KK132L0612
ref: 132
K132B-B0612

BOLT-FLANGED-S

€ 1.00

11065

K110650087
ref: 11065

CAP

€ 9.00

13107

K131070032
ref: 13107

SHAFT,WATER PUMP

€ 17.00

16142

K161420020
ref: 16142

COVER-PUMP,WATER

€ 119.00

39192

K391920037
ref: 39192

PIPE-WATER

€ 23.50

59051

K590510010
ref: 59051

GEAR-SPUR,WATER PUMP

€ 28.50

59256

K592561065
ref: 59256

IMPELLER

€ 28.50

92022

K920221380
ref: 92022

WASHER,5.2X13X1

€ 3.50

92022A

KK92022304
ref: 92022A

WASHER,6.2X11X1

€ 5.50

92042

KK92042007
ref: 92042

PIN,DOWEL,6.3X8X14

€ 5.00

92055

K920550010
ref: 92055

RING-O,WATER PUMP

€ 6.00

92055A

K920551308
ref: 92055A

RING-O,19MM

€ 4.50

92055B

KK92055520
ref: 92055B

RING-O

€ 4.50

92151

K921511199
ref: 92151
K9215-30697

BOLT,6X65

€ 2.00

92151A

K921511423
ref: 92151A

BOLT,6X14

€ 2.00

92153

K921530696
ref: 92153

BOLT

€ 3.50

92153A

K921530844
ref: 92153A

BOLT,6X30

€ 1.50

92153B

K921530860
ref: 92153B

BOLT,6X8

€ 2.00

92200

K922000190
ref: 92200

WASHER,6.1X10.0X1.0

€ 2.00
