MAGNETO

RM-Z250 2014 (L4) USA (E03) RMZ250 RM Z250

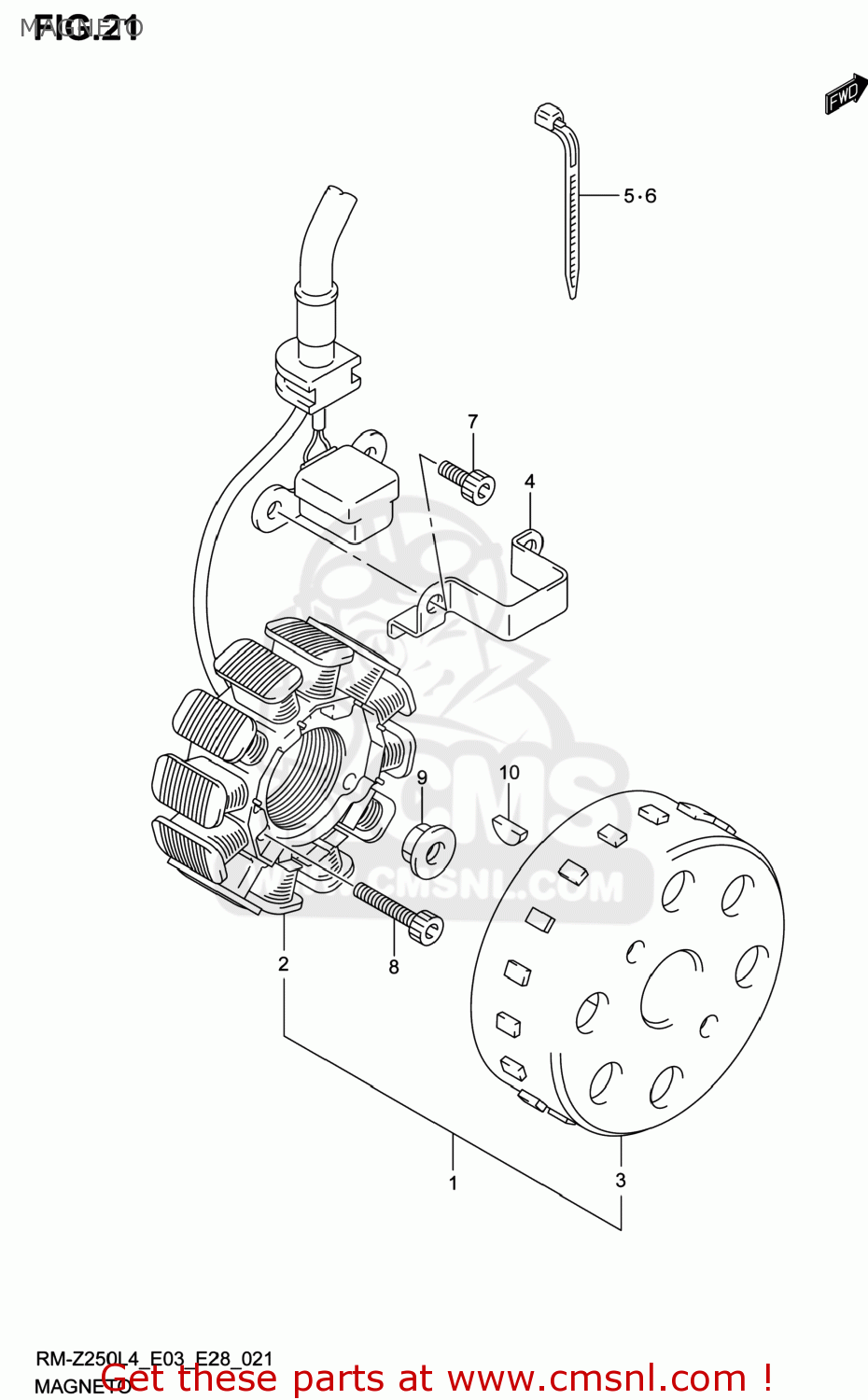

Magneto diagram RM-Z250 2014 (L4) USA (E03) RMZ250 RM Z250

MAGNETO RM-Z250 2014 (L4) USA (E03) RMZ250 RM Z250

MAGNETO RM-Z250 2014 (L4) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1

3210028HA0
ref: 1

MAGNETO ASSY

€ 693.50

2

3210128HA0
ref: 2

STARTER ASSY

€ 333.00

3

3210228HA0
ref: 3

ROTOR ASSY

€ 365.00

4

3237135G00
ref: 4

CLAMP,MAGNETO LEAD

€ 5.00

5

0940718402
ref: 5

CLAMP(L:165)

€ 2.50

6

0940725401
ref: 6

CLAMP(L:235)

€ 4.00

7

071300512A
ref: 7

BOLT

€ 2.50

8

071300525A
ref: 8

BOLT

€ 1.50

9

083161012B
ref: 9

NUT

€ 2.00

10

0834131039
ref: 10

KEY

€ 2.00
