WATER PUMP

RM-Z250 2014 (L4) USA (E03) RMZ250 RM Z250

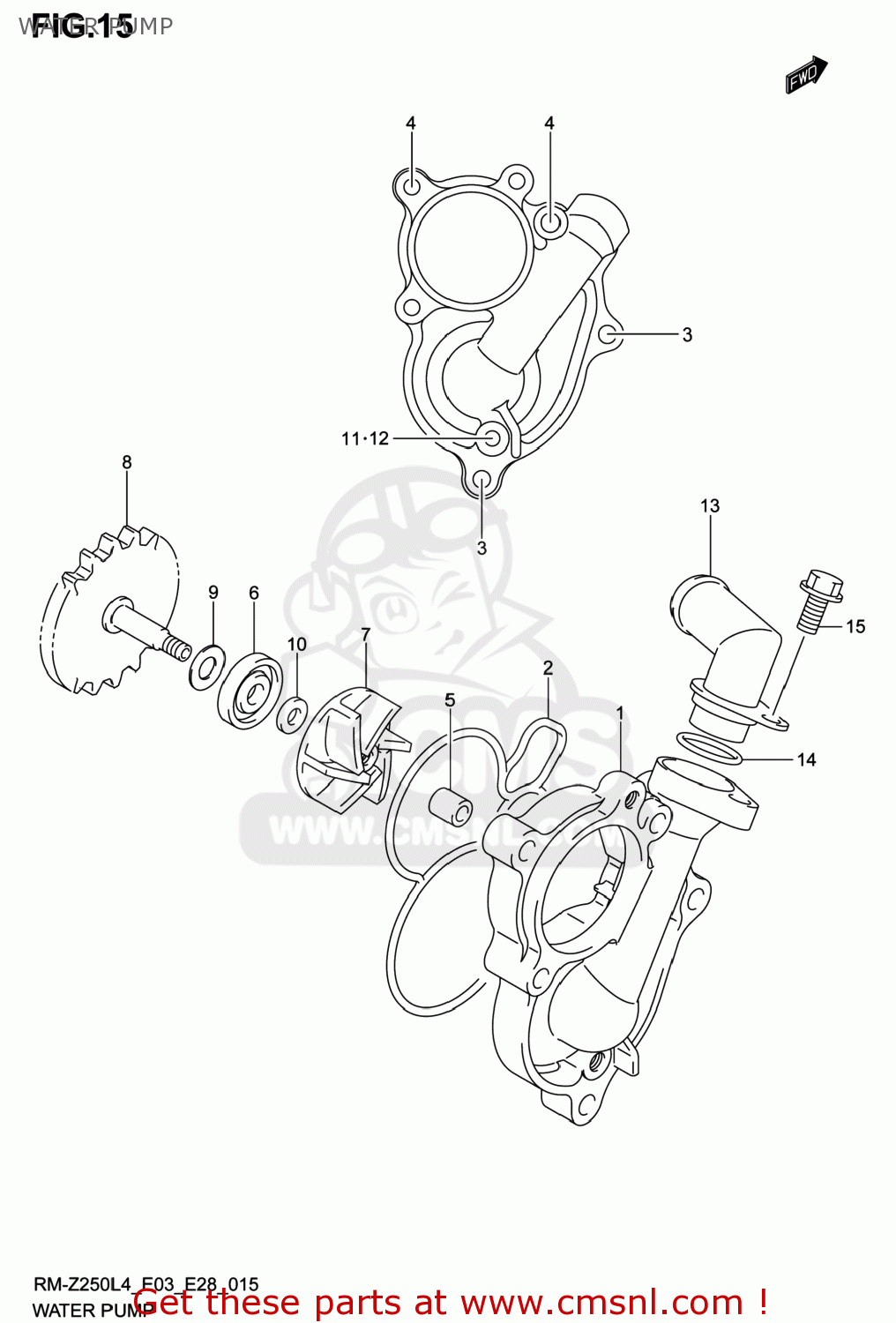

Water pump diagram RM-Z250 2014 (L4) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1741110H10
ref: 1

CASE,WATER PUMP

€ 46.50

1743110H00
ref: 2

O RING,WATER PUMP CASE

€ 7.50

015470660A
ref: 3

BOLT

€ 2.50

015470665A
ref: 4

BOLT

€ 2.50

0421109109
ref: 5

PIN

€ 2.00

1746137F00
ref: 6

SEAL,WATER PUMP OIL

€ 5.00

1749110H00
ref: 7

IMPELLER,WATER PUMP

€ 13.00

1751010H10
ref: 8

SHAFT,WATER PUMP

€ 50.00

0918108186
ref: 9

SHIM(8X18X0.5)

€ 1.50

0918106003
ref: 10

SHIM(6X14X1)

€ 2.00

071200610A
ref: 11

BOLT

€ 2.00

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

1785749H00
ref: 13

JOINT,WATER PUMP

€ 18.50

0928017010
ref: 14

O RING(D:2.4,ID:16.8)

€ 2.00

015470612A
ref: 15

BOLT

€ 2.00
