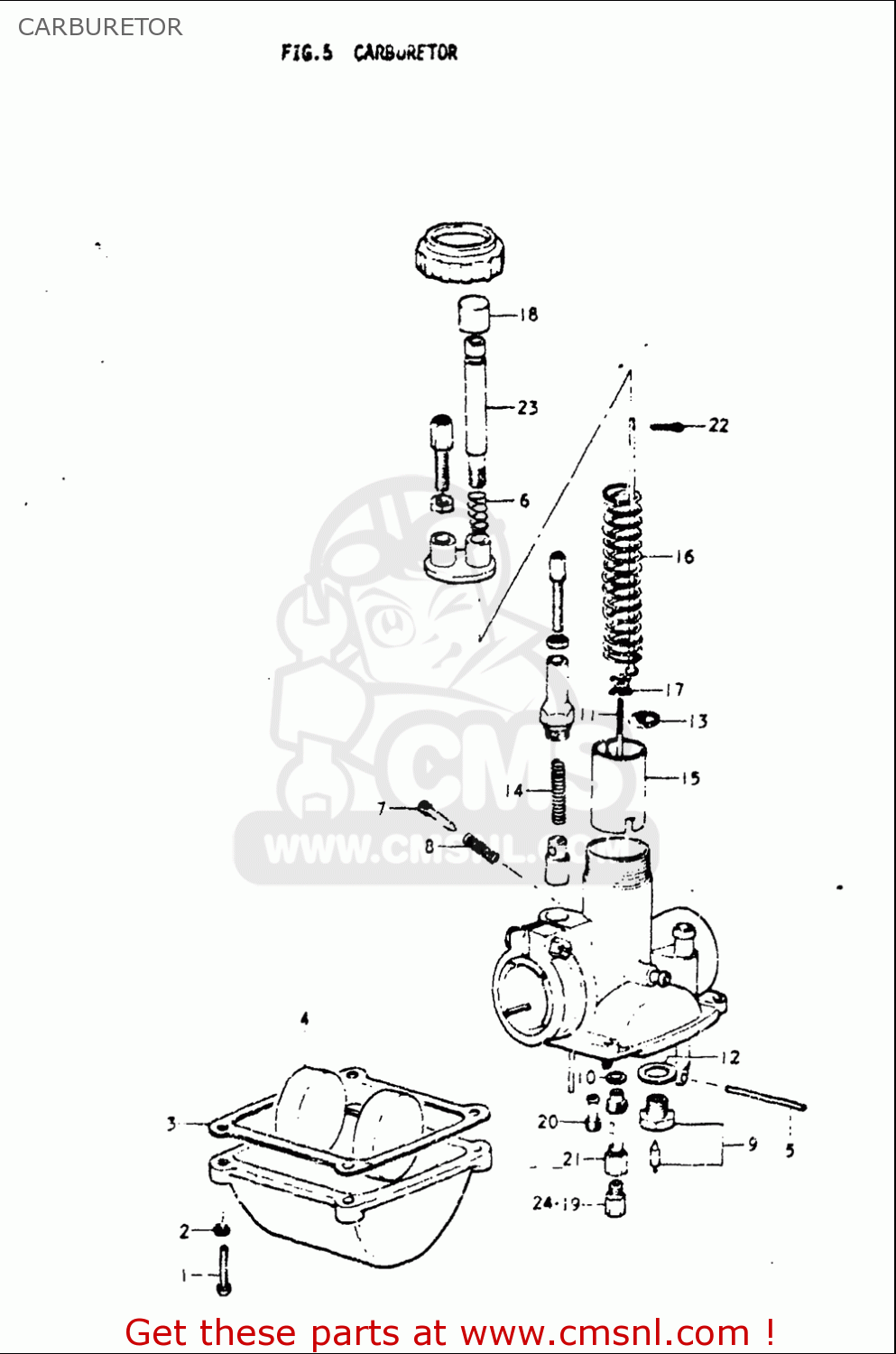

CARBURETOR

ref

part #

description

quantity

0

1320012603
ref: 0

CARBURETOR ASSY

€ 166.50

1

0211204203
ref: 1

SCREW

€ 1.00

2

0832101043
ref: 2

WASHER,LOCK

€ 2.00

3

1325109211
ref: 3

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

4

1325209210
ref: 4

FLOAT

€ 23.00

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1326805010
ref: 6

SPRING,THROTTLE STOP SCREW

€ 5.50

7

1326901010
ref: 7

SCREW,PILOT AIR

€ 14.50

8

1326801010
ref: 8

SPRING

€ 3.50

9

1337009211
ref: 9

VALVE ASSY,NEEDLE

€ 55.00

10

1338203110
ref: 10

WASHER

€ 2.50

11

1338312011
ref: 11

NEEDLE,JET

€ 12.50

12

1339201010
ref: 12

GASKET,NEEDLE VALVE (NAS)

€ 2.50

13

1339440D00
ref: 13

CLIP,NEEDLE

€ 3.00

14

1341701010
ref: 14

SPRING

€ 3.50

16

1357336110
ref: 16

SPRING,THROTTLE VALVE

€ 3.00

17

1358109210
ref: 17

STOPPER,NEEDLE CLIP

€ 5.50

18

1368808010
ref: 18

CAP,THROTTLE VALVE STOP SCREW

€ 4.00

19

0949175001
ref: 19

JET,MAIN

€ 6.50

20

0949235004
ref: 20

JET,PILOT(35)

€ 7.50

21

0949400029
ref: 21

JET,NEEDLE

€ 17.50

22

0411112108
ref: 22

PIN 12X10

€ 2.00

23

1326705010
ref: 23

SCREW,THROTTLE STOP

€ 10.50

24-1

0949170001
ref: 24-1

JET,MAIN

€ 6.00

24-2

0949180001
ref: 24-2

JET,MAIN (80)

€ 12.00

24-4

0949190001
ref: 24-4

JET,MAIN (90)

€ 6.50

24-4

0949190001
ref: 24-4

JET,MAIN (90)

€ 6.50

24-5

0949195001
ref: 24-5

JET,MAIN (95)

€ 11.50

all assemblies
