FRONT FORK
A100 1976 1977 (A) (B) USA (E03)

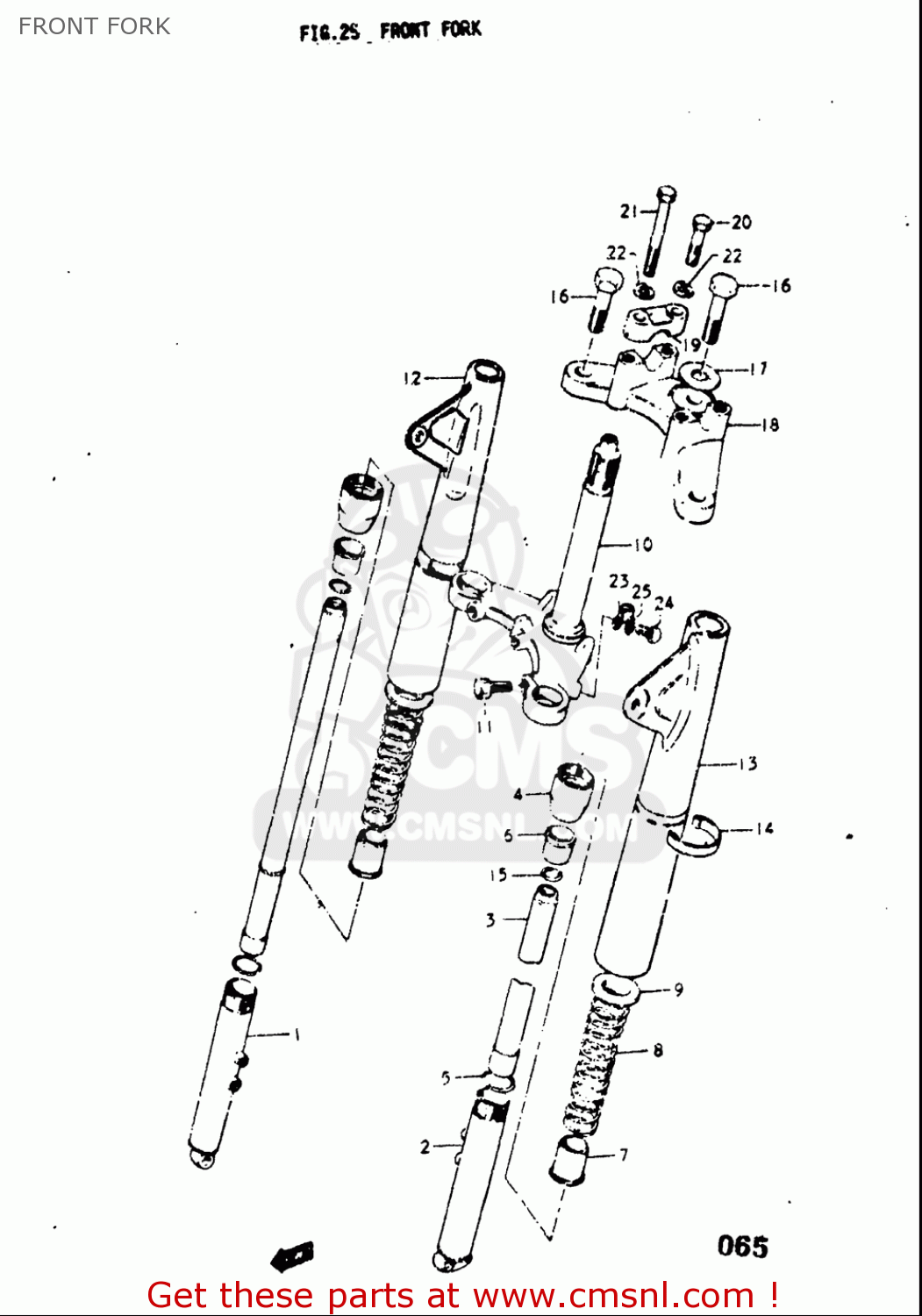

Front fork diagram A100 1976 1977 (A) (B) USA (E03)
FRONT FORK A100 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
5111023010
ref: 3
TUBE,FORK,INNER
€ 71.50
4
5115003011
ref: 4
NUT,FORK OUTER TUBE
€ 16.00
6
5115203011
ref: 6
GUIDE,FORK INNER TUBE
€ 6.50
7
5117301210
ref: 7
GUIDE,FRONT FORK SPRING
€ 8.50
8
5117124900
ref: 8
SPRING
€ 20.50
11
0150010303
ref: 11
BOLT
€ 3.00
12-1
5150023850126
ref: 12-1
BRACKET SET,HEADLAMP
€ 106.00
12-2
5150023850126
ref: 12-2
BRACKET SET,HEADLAMP
€ 106.00
13-1
5150023850126
ref: 13-1
BRACKET SET,HEADLAMP
€ 106.00
13-2
5150023850126
ref: 13-2
BRACKET SET,HEADLAMP
€ 106.00
15
5118122011
ref: 15
O RING
€ 3.00
17
5135622012
ref: 17
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
19
5621127100
ref: 19
HOLDER,HANDLEBAR
€ 12.50
20
0120408757
ref: 20
BOLT
€ 2.50
22
0832101087
ref: 22
WASHER,LOCK
€ 2.00
23
5145303010
ref: 23
CLIP,BRAKE CABLE
€ 5.00
24
0211206107
ref: 24
SCREW
€ 1.50
25
0832101067
ref: 25
WASHER,LOCK
€ 2.50
