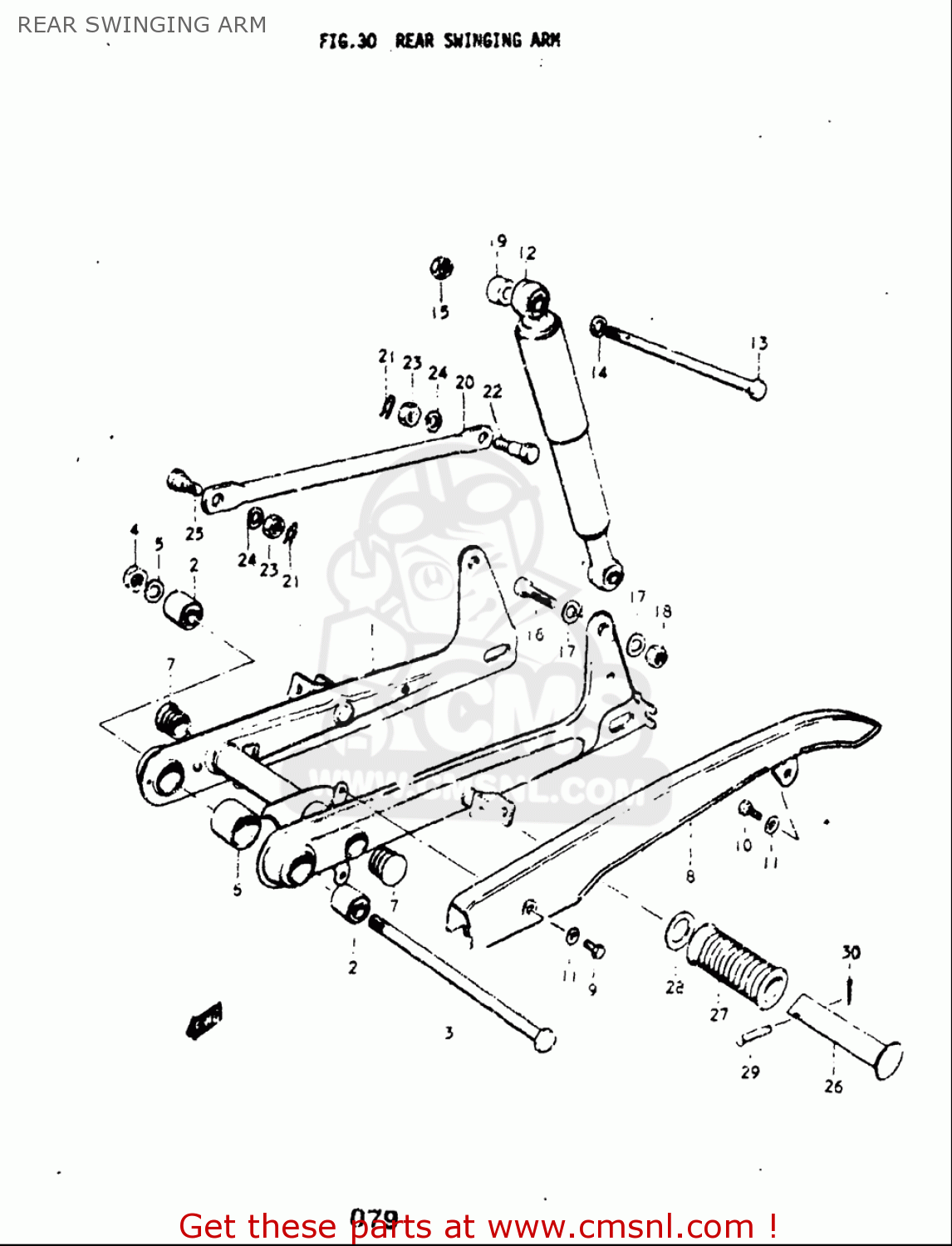

REAR SWINGING ARM

ref

part #

description

quantity

2

0931910009
ref: 2

BUSHING(10X23X35)

€ 7.50

3

6121120002
ref: 3

SHAFT,RR SWINGINGARM PIVOT

€ 11.00

4

0831000107
ref: 4

NUT

€ 2.50

5

0832101107
ref: 5

WASHER,LOCK

€ 2.00

6

0932022001
ref: 6

CUSHION

€ 2.00

7

0925022002
ref: 7

CAP(OD:26)

€ 2.00

10

0910006067
ref: 10

BOLT(6X14)

€ 2.50

11

0832201067
ref: 11

WASHER

€ 2.00

12-1

621002321005H
ref: 12-1

ABSORBER ASSY,RR SHOCK

€ 112.50

12-2

621002321005H
ref: 12-2

ABSORBER ASSY,RR SHOCK

€ 112.50

13

6121125001
ref: 13

SHAFT,RR SHOCK ABSORBER UPR

€ 12.00

14

0832201107
ref: 14

WASHER

€ 2.50

15

0914010012
ref: 15

NUT

€ 2.50

16

0910010046
ref: 16

BOLT(10X43)

€ 2.00

17

0832201107
ref: 17

WASHER

€ 2.50

18

0831310107
ref: 18

NUT

€ 2.50

21

0938510005
ref: 21

CLIP

€ 1.50

22

0911108013
ref: 22

BOLT(8X26.5)

€ 3.00

23

0914008008
ref: 23

NUT

€ 1.50

24

0832101087
ref: 24

WASHER,LOCK

€ 2.00

25

0911108012
ref: 25

BOLT(8X22.5)

€ 3.00

26

4361003001
ref: 26

BAR,FOOTREST RUBBER

€ 5.50

27

4361203001
ref: 27

RUBBER,PILLION FOOTREST

€ 3.50

28

0916019024
ref: 28

WASHER(19.5X32X2)

€ 2.00

29

0920006010
ref: 29

PIN

€ 2.50

30

041112020A
ref: 30

PIN

€ 1.50
