HEADLAMP
A100 1976 1977 (A) (B) USA (E03)

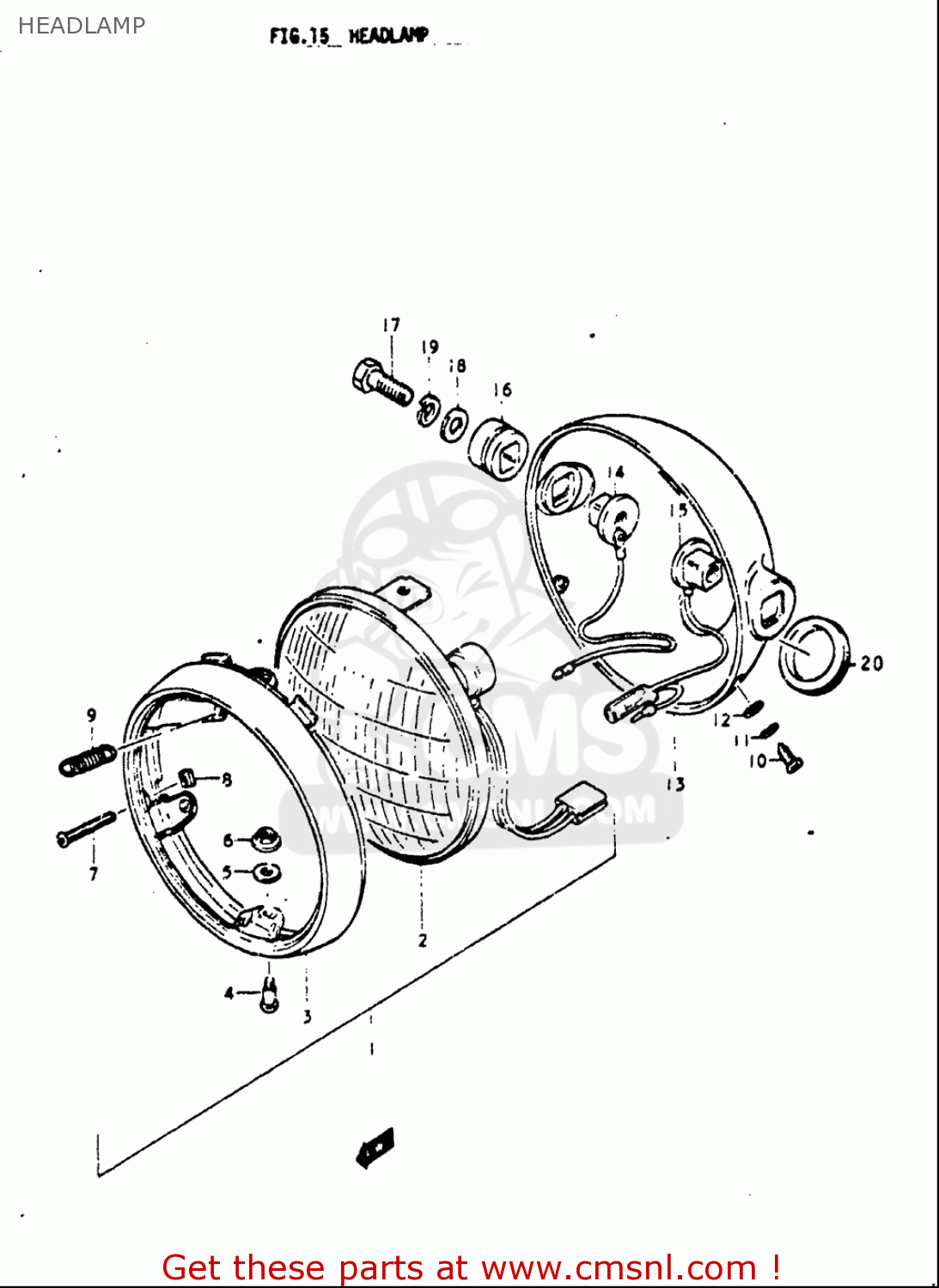

Headlamp diagram A100 1976 1977 (A) (B) USA (E03)
HEADLAMP A100 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
35121256V0
ref: 2
UNIT,HEADLAMP
€ 40.00
4
3513635400
ref: 4
SCREW,HEAD LAMP RIM
€ 4.00
6
083161005A
ref: 6
NUT
€ 2.50
7
3515106020
ref: 7
SCREW,HEADLAMP ADJUST
€ 2.50
8
3515501321
ref: 8
NUT,HEADLAMP ADJUSTER
€ 2.50
10
0211204123
ref: 10
SCREW
€ 1.50
11
0832101043
ref: 11
WASHER,LOCK
€ 2.00
12
0832201047
ref: 12
WASHER
€ 2.00
14
5182136200
ref: 14
SPACER,HEADLAMP HOUSING
€ 7.50
16
5182727302
ref: 16
CUSHION,HEADLAMP HOUSING
€ 3.00
17
0120408207
ref: 17
BOLT
€ 3.00
18
0832201087
ref: 18
WASHER
€ 2.00
19
0832101087
ref: 19
WASHER,LOCK
€ 2.00
20
5184531031
ref: 20
GROMMET,HEADLAMP HOUSING
€ 4.00
