FUEL PUMP (MODEL K2/K3)
DL1000 VSTROM 2002 (K2) USA (E03)

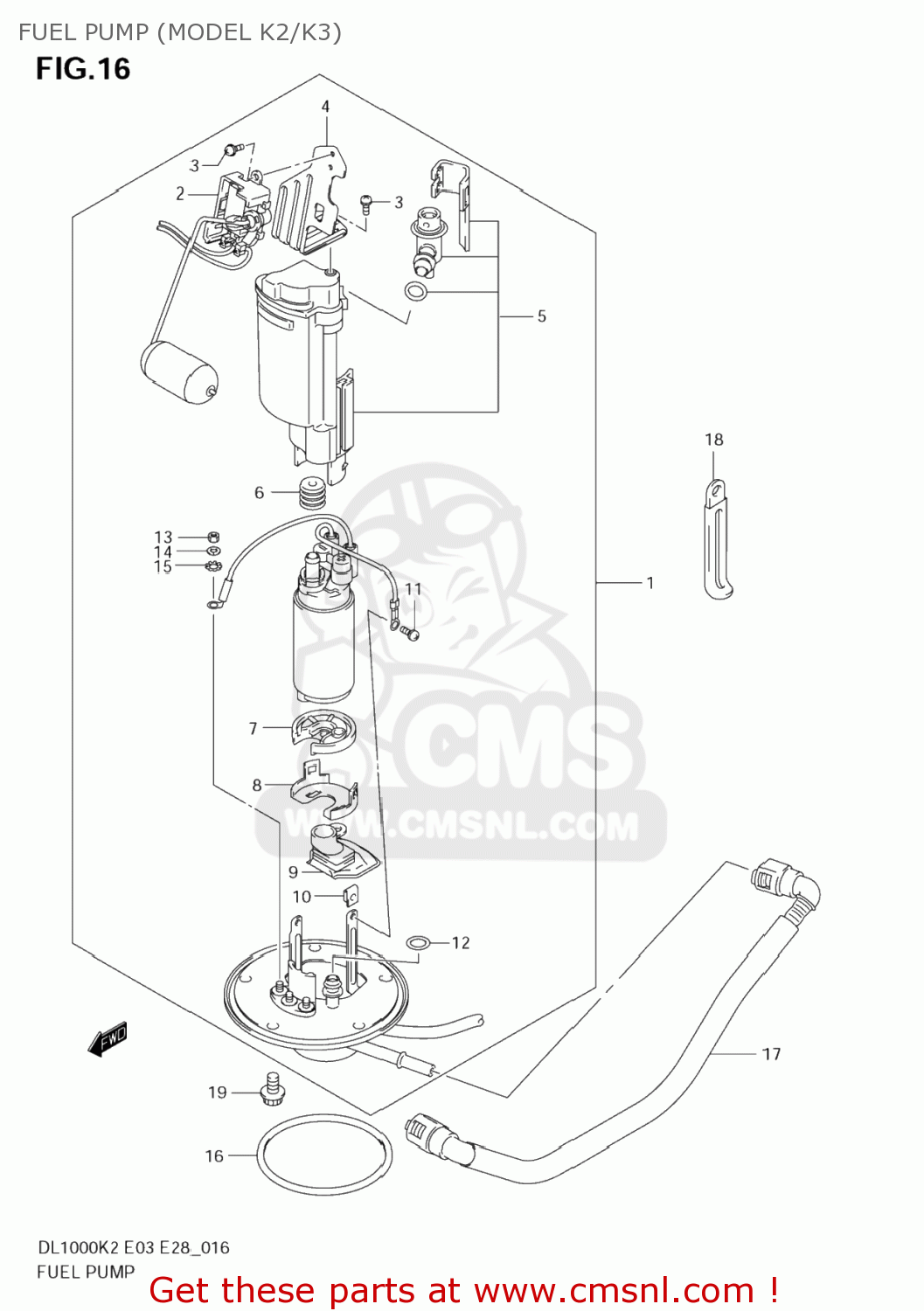

Fuel pump (model k2/k3) diagram DL1000 VSTROM 2002 (K2) USA (E03)
FUEL PUMP (MODEL K2/K3) DL1000 VSTROM 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510006G00
ref: 1
PUMP ASSY,FUEL
€ 1,009.00
2
3481006G00
ref: 2
GAUGE ASSY,FUEL LEVER
€ 220.50
3
1511635F10
ref: 3
SCREW
€ 6.50
4
1518106G00
ref: 4
BRACKET,FUEL GAUGE
€ 43.00
5
1541024FB0
ref: 5
FILTER,FUEL
€ 322.00
6
1511435F00
ref: 6
BUSH,FUEL PUMP
€ 19.00
7
1511135F00
ref: 7
CUSHION
€ 9.50
8
1511242F00
ref: 8
HOLDER,FUEL PUMP
€ 20.00
9
1542035F01
ref: 9
STRAINER,FUEL PUMP
€ 60.00
10
1511535F00
ref: 10
NUT
€ 11.00
11
1511635F10
ref: 11
SCREW
€ 6.50
12
1511335F00
ref: 12
O RING
€ 8.50
13
1517335F00
ref: 13
NUT
€ 5.50
14
1517235F00
ref: 14
WASHER,SPRING
€ 5.00
15
1517135F00
ref: 15
WASHER
€ 7.00
16
1520135F00
ref: 16
O RING,FUEL PUMP
€ 26.00
17
1581006G00
ref: 17
15810-06G01
HOSE COMP,FUEL
€ 82.00
18
0940406432
ref: 18
CLAMP(L:65)
€ 3.00
19
0712006123
ref: 19
07120-0612B
BOLT
€ 4.00
