WIRING HARNESS (MODEL K4/K5/K6)

DL1000 VSTROM 2002 (K2) USA (E03)

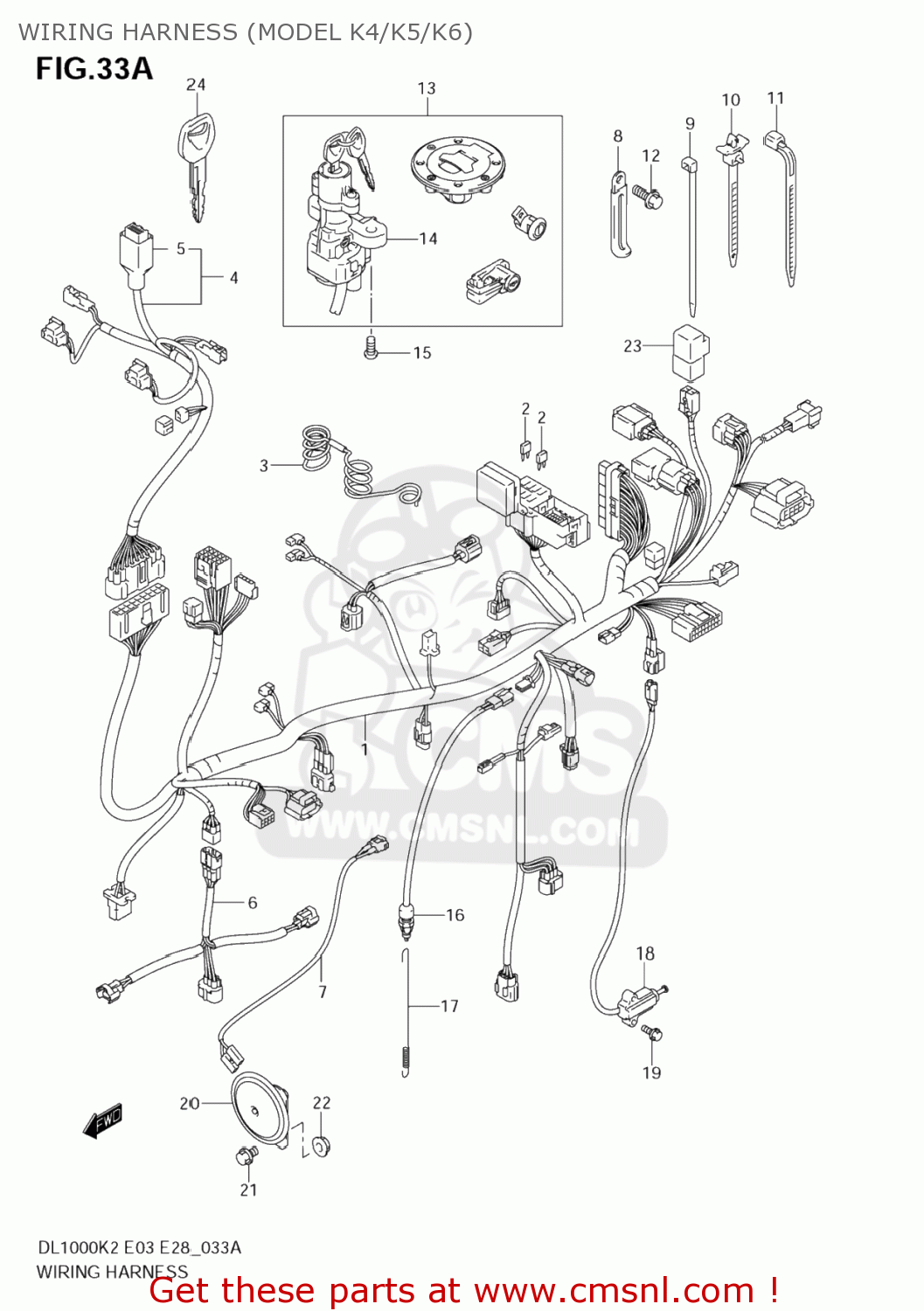

Wiring harness (model k4/k5/k6) diagram DL1000 VSTROM 2002 (K2) USA (E03)

WIRING HARNESS (MODEL K4/K5/K6) DL1000 VSTROM 2002 (K2) USA (E03)
WIRING HARNESS (MODEL K4/K5/K6) DL1000 VSTROM 2002 (K2) USA (E03)
WIRING HARNESS (MODEL K4/K5/K6) DL1000 VSTROM 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661006G50
ref: 1-1
HARNESS,WIRING NO.1
€ 0.00
1-2
3661006G70
ref: 1-2
HARNESS,WIRING NO.1
€ 717.00
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
3661906G01
ref: 3
GUIDE,WIRING HARNESS
€ 17.50
4
3662027G30
ref: 4
HARNESS,WIRING NO.2
€ 135.50
5
3661818G10
ref: 5
COVER,CONNECTOR
€ 8.00
6
3685906G00
ref: 6
WIRE,INJECTOR LEAD
3685906G00
€ 40.00
7
3685206G00
ref: 7
WIRE,HORN LEAD
3685206G00
€ 16.00
8-1
0940406429
ref: 8-1
CLAMP(L:45)
€ 2.50
8-2
0940406433
ref: 8-2
CLAMP(L:80)
0940406433
€ 3.00
9
0940714407
ref: 9
CLAMP(L:145)
0940714407
€ 4.00
10
0940717401
ref: 10
09407-17402
CLAMP
0940717401
€ 5.00
11-1
0940711401
ref: 11-1
CLAMP(L:95)
0940711401
€ 2.50
11-2
0940714403
ref: 11-2
CLAMP(L:125)
0940714403
€ 2.50
12
0154706103
ref: 12
01547-0610B
BOLT
0154706103
€ 3.00
13-1
3700006860
ref: 13-1
LOCK SET
3700006860
€ 584.50
13-2
3700006870
ref: 13-2
LOCK SET
€ 0.00
14
3710006G00
ref: 14
LOCK ASSY,STEERING
3710006G00
€ 183.50
15
0913908016
ref: 15
BOLT(8X20)
0913908016
€ 3.50
16-1
3774031D00
ref: 16-1
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
16-2
3774045D00
ref: 16-2
37740-31D00
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.50
17
4325906G00
ref: 17
SPRING,STOP LAMP SWITCH
4325906G00
€ 12.50
18
3784006G00
ref: 18
SWITCH ASSY,SIDE STAND
3784006G00
€ 67.00
19
0155006163
ref: 19
01550-0616A
BOLT
0155006163
€ 2.50
20
3850041F00
ref: 20
HORN ASSY
€ 83.50
21
0155008123
ref: 21
01550-0812A
BOLT
0155008123
€ 3.50
22
0831610083
ref: 22
08316-1008B
NUT
0831610083
€ 3.00
23
3874024X50
ref: 23
RELAY ASSY
3874024X50
€ 37.50
24
3714633E00
ref: 24
KEY,BLANK
3714633E00
€ 13.00
