SEAT TAIL COVER (MODEL K5)

DL1000 VSTROM 2002 (K2) USA (E03)

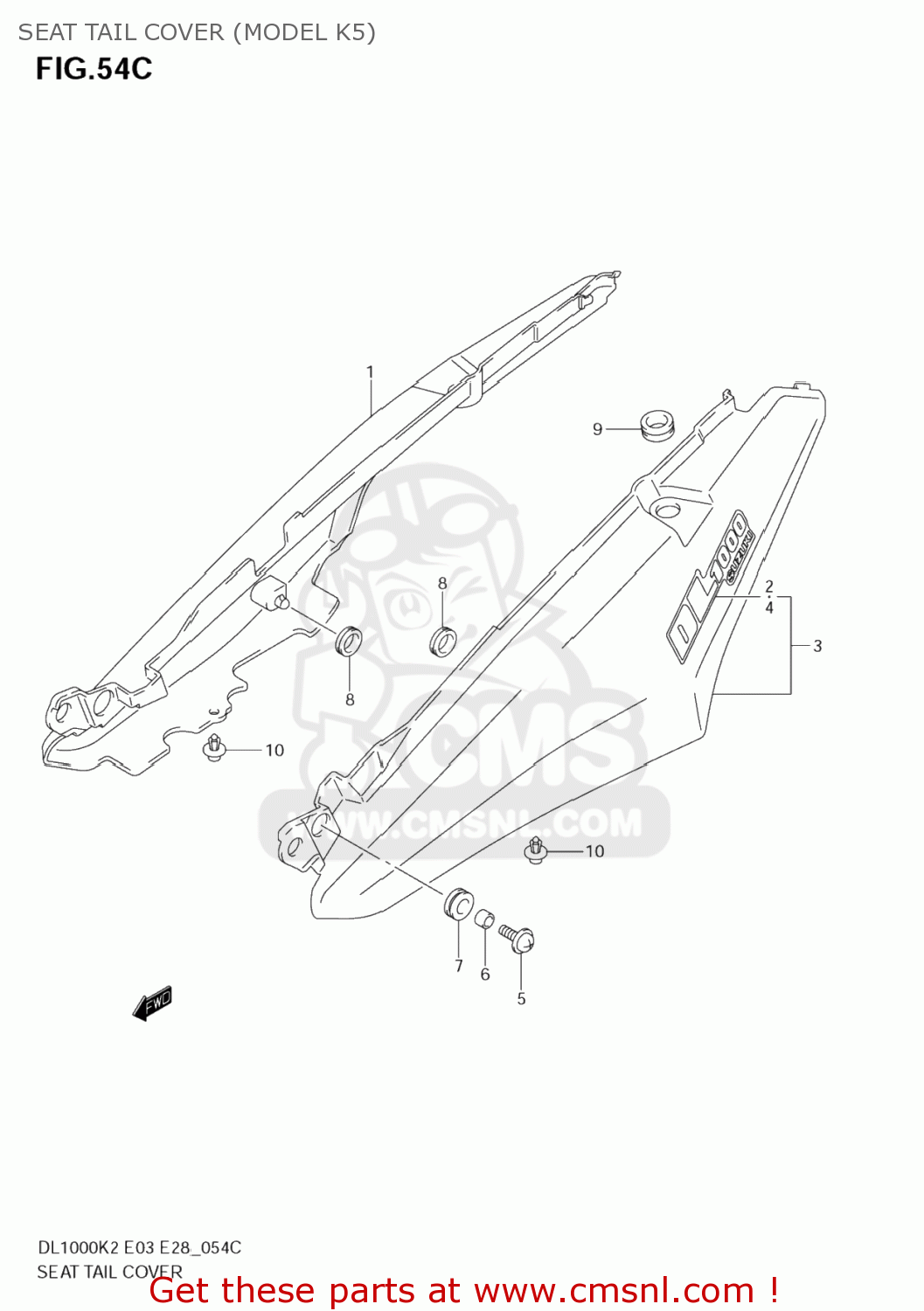

Seat tail cover (model k5) diagram DL1000 VSTROM 2002 (K2) USA (E03)

SEAT TAIL COVER (MODEL K5) DL1000 VSTROM 2002 (K2) USA (E03)

SEAT TAIL COVER (MODEL K5) DL1000 VSTROM 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550106G104CX
ref: 1-1

COVER,SEAT TAI

€ 174.00

1-2

4550106G104DX
ref: 1-2

COVER,SEAT TAIL,R(BLACK)

€ 161.50

1-3

4550106G104EX
ref: 1-3

COVER,SEAT TAIL,R(BLACK)

€ 161.50

2-1

6816106G10BKT
ref: 2-1

EMBLEM,SEAT TAIL COVER

€ 11.00

2-2

6816106G10BKU
ref: 2-2

EMBLEM,SEAT TAIL COVER

€ 9.00

2-3

6816106G10BKV
ref: 2-3

EMBLEM,SEAT TAIL COVER

€ 10.50

3-1

4550206G104CX
ref: 3-1

COVER,SEAT TAIL,L(BLACK)

€ 161.50

3-2

4550206G104DX
ref: 3-2

COVER,SEAT TAIL,L(BLACK)

€ 161.50

3-3

4550206G104EX
ref: 3-3

COVER,SEAT TAIL,L(BLACK)

€ 161.50

4-1

6816106G10BKT
ref: 4-1

EMBLEM,SEAT TAIL COVER

€ 11.00

4-2

6816106G10BKU
ref: 4-2

EMBLEM,SEAT TAIL COVER

€ 9.00

4-3

6816106G10BKV
ref: 4-3

EMBLEM,SEAT TAIL COVER

€ 10.50

5

0913606081
ref: 5

SCREW(6X20)

€ 3.00

6

0918006300
ref: 6

SPACER(6.5X12X9)

€ 5.50

7

0932012068
ref: 7

CUSHION

€ 3.50

8

0932008018
ref: 8

CUSHION

€ 4.00

9

0932015008
ref: 9

CUSHION

€ 3.50

10

09409063145PK
ref: 10

CLIP(BLACK)

€ 3.50
