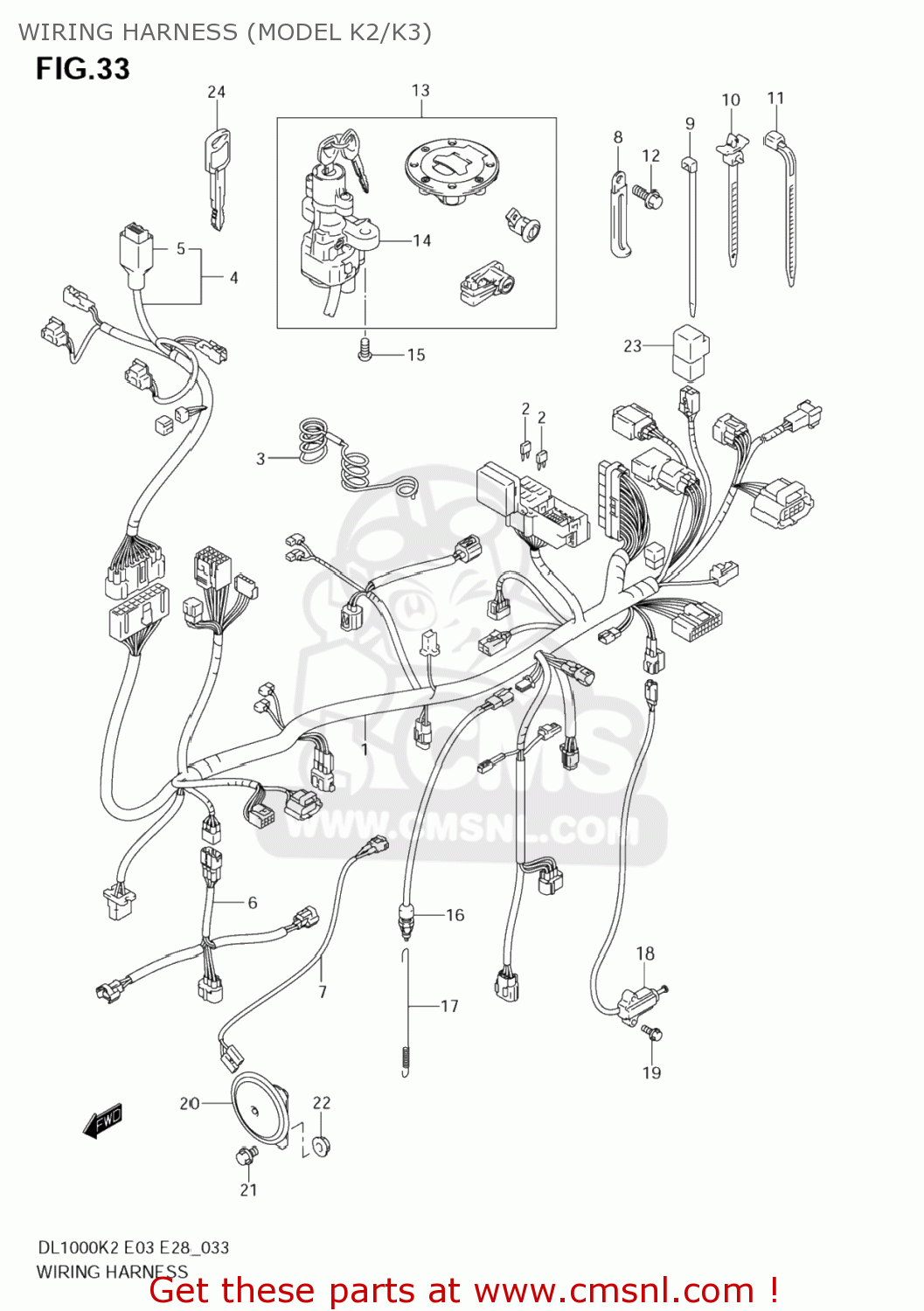

WIRING HARNESS (MODEL K2/K3)

ref

part #

description

quantity

1-1

3661006G10
ref: 1-1

HARNESS, WIRING NO.1

€ 0.00

1-2

3661006G30
ref: 1-2

HARNESS, WIRING NO.1

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661906G00
ref: 3
36619-06G01

GUIDE,WIRING H

€ 17.50

4

3662006G10
ref: 4

HARNESS,WIRING NO.2

€ 0.00

5

3661833E00
ref: 5

COVER,SPEEDOMETER COUPLER

€ 5.50

6

3685906G00
ref: 6

WIRE,INJECTOR LEAD

€ 40.00

7

3685206G00
ref: 7

WIRE,HORN LEAD

€ 16.00

8-1

0940406432
ref: 8-1

CLAMP(L:65)

€ 2.50

8-2

0940406431
ref: 8-2
09404-06432

CLAMP(L:65)

€ 2.50

9

0940714407
ref: 9

CLAMP(L:145)

€ 4.00

10-1

0940714408
ref: 10-1
09407-17402

CLAMP(L:120)

€ 5.00

10-2

0940717401
ref: 10-2
09407-17402

CLAMP

€ 5.00

11

0940714403
ref: 11

CLAMP(L:125)

€ 2.50

12

0155006103
ref: 12
01550-0610A

BOLT

€ 2.50

13-1

3700006860
ref: 13-1

LOCK SET

€ 584.50

13-2

3700006870
ref: 13-2

LOCK SET

€ 0.00

14

3710006G00
ref: 14

LOCK ASSY,STEERING

€ 183.50

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16

3774031D00
ref: 16

SWITCH ASSY,STOP LAMP

€ 20.50

17

4325906G00
ref: 17

SPRING,STOP LAMP SWITCH

€ 12.50

18

3784006G00
ref: 18

SWITCH ASSY,SIDE STAND

€ 67.00

19

0155006163
ref: 19
01550-0616A

BOLT

€ 2.50

20

3850041F00
ref: 20

HORN ASSY

€ 83.50

21

0155008123
ref: 21
01550-0812A

BOLT

€ 3.50

22

0831610083
ref: 22
08316-1008B

NUT

€ 3.00

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

3714633E00
ref: 24

KEY,BLANK

€ 13.00
