CYLINDER

DL1000 VSTROM 2006 (K6) USA (E03)

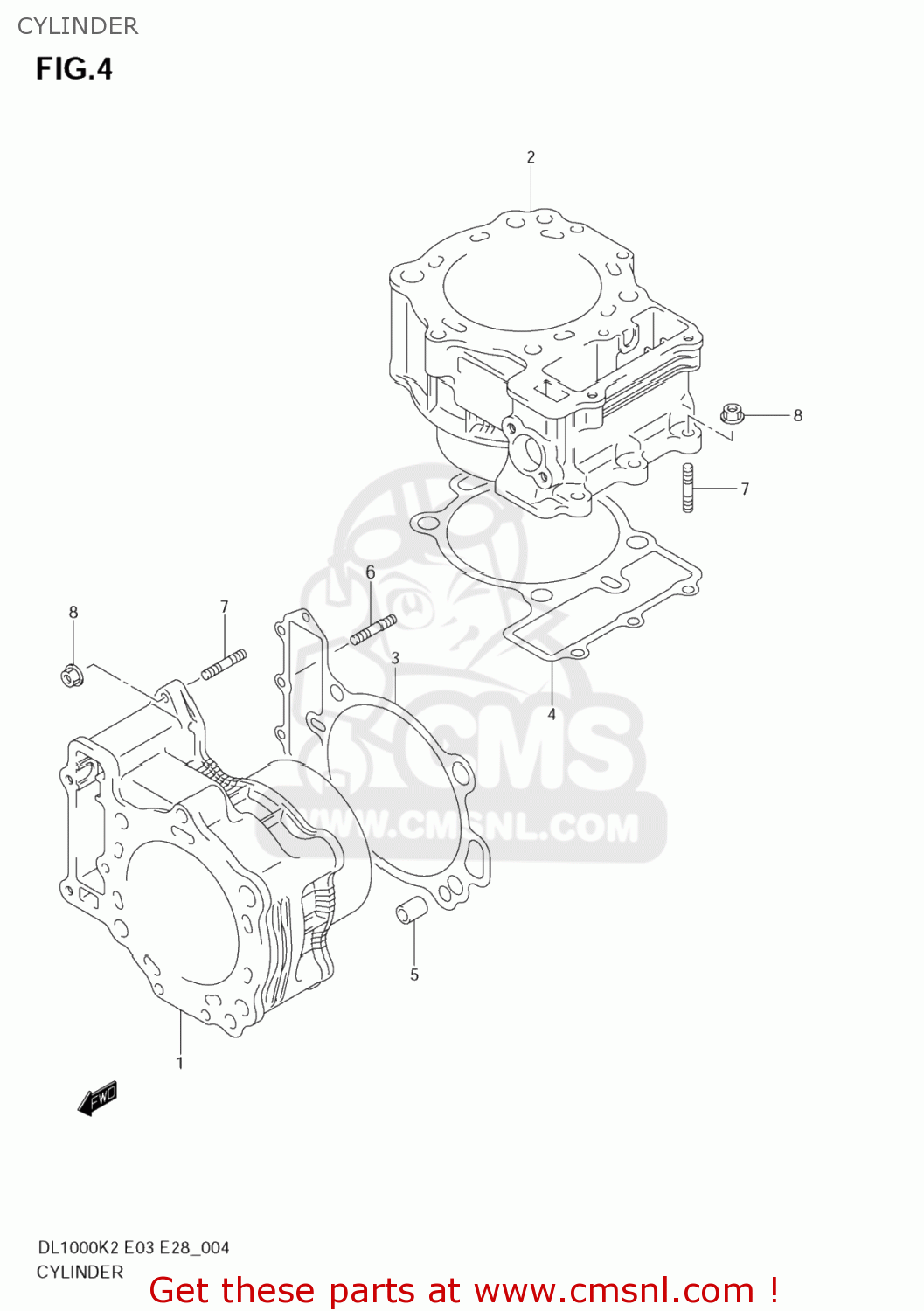

Cylinder diagram DL1000 VSTROM 2006 (K6) USA (E03)

CYLINDER DL1000 VSTROM 2006 (K6) USA (E03)

CYLINDER DL1000 VSTROM 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121106G000F0
ref: 1

CYLINDER,FR

€ 399.00

2

1122106G000F0
ref: 2

CYLINDER,RR

€ 937.50

3

1124102F01
ref: 3

GASKET,CYLINDER FR (NAS)

€ 19.50

4

1124202F01
ref: 4

GASKET,CYLINDER RR (NAS)

€ 19.50

5

0421113189
ref: 5

PIN

€ 2.50

6

0910806118
ref: 6

STUD BOLT (L:20)

€ 2.00

7

0142106203
ref: 7
01421-0620A

STUD,M6X1X32

€ 2.50

8

0831610063
ref: 8
08316-1006B

NUT

€ 2.50
