REAR WHEEL
DL1000 VSTROM 2006 (K6) USA (E03)

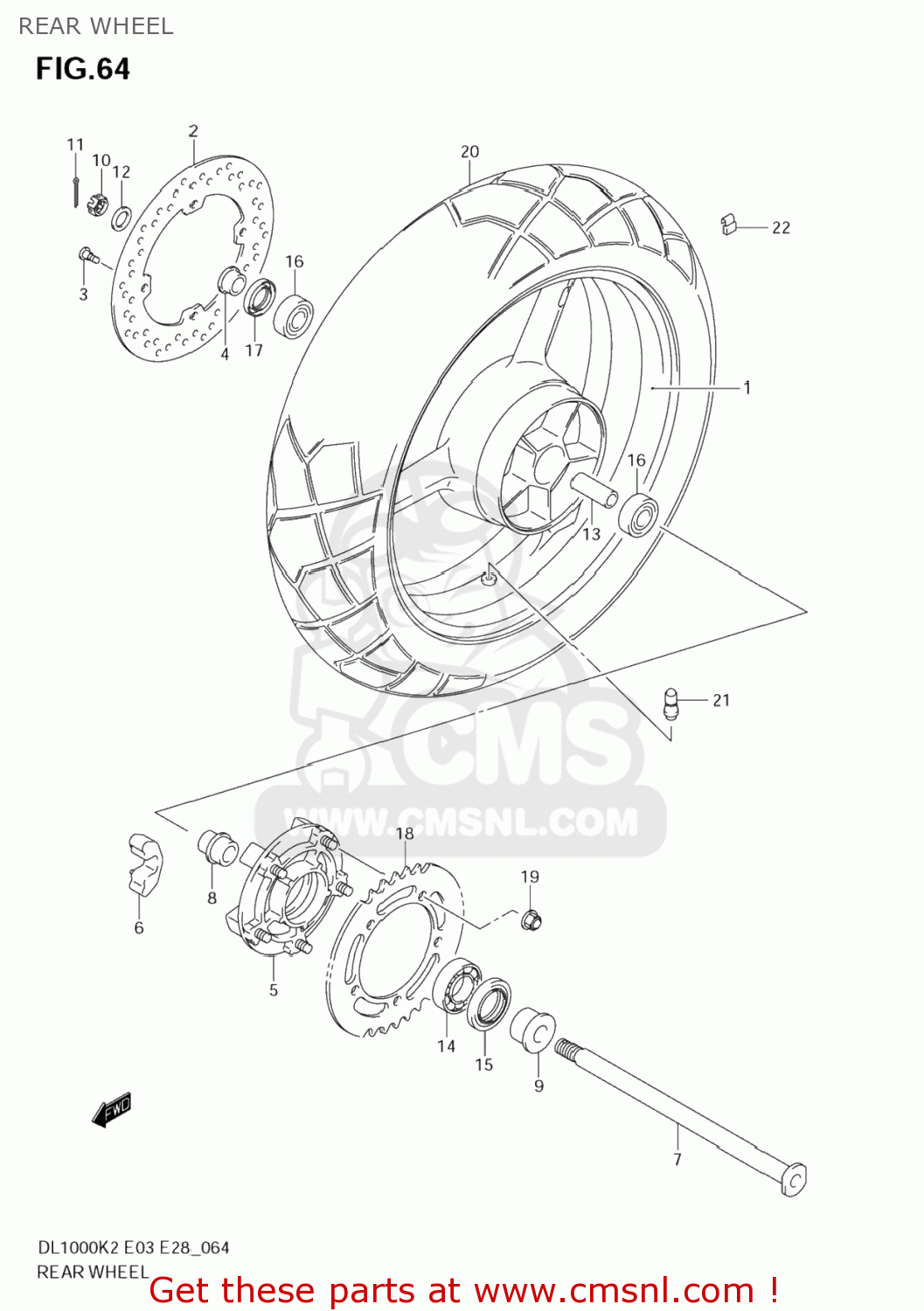

Rear wheel diagram DL1000 VSTROM 2006 (K6) USA (E03)
REAR WHEEL DL1000 VSTROM 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411106G00019
ref: 1
64111-06G01-019
WHEEL,REAR(17M
€ 1,162.00
1
6411106G00019
ref: 1
64111-06G01-019
WHEEL,REAR(17M
€ 1,162.00
2
6921106G00
ref: 2
DISC,RR BRAKE
€ 121.00
3
0910608160
ref: 3
BOLT(8X21)
€ 3.50
4
6474110F00
ref: 4
SPACER,RR AXLE,R
€ 16.00
5
6461006G00
ref: 5
DRUM,RR SPROCKET
€ 314.50
6-1
6465135F00
ref: 6-1
ABSORBER,RR HUB SHOCK
€ 10.00
6-2
6465135F10
ref: 6-2
ABSORBER,RR HUB SHOCK
€ 10.50
7
6471106G10
ref: 7
AXLE,RR
€ 0.00
8
6473306G00
ref: 8
RETAINER,RR SPROCKET DRUM
€ 21.00
9
6475106G00
ref: 9
SPACER,FR AXLE
€ 28.50
10
0831440183
ref: 10
08314-4018A
NUT
€ 4.50
11
0411140308
ref: 11
04111-4030A
PIN,COTTER
€ 1.50
12
0916019022
ref: 12
WASHER(19X32X3.2)
€ 5.00
13
0918020112
ref: 13
SPACER(20.8X27.2X124)
€ 21.00
14
0926232007
ref: 14
09262-32022
BEARING
€ 49.00
15
0928539001
ref: 15
SEAL,OIL(39X65X7)
€ 9.00
16
0812362047
ref: 16
BEARING
€ 17.00
17
0928528001
ref: 17
SEAL,OIL(28X47X7)
€ 11.50
18
6451135F20
ref: 18
SPROCKET,RR(NT:41-525)
€ 62.50
19
0831931107
ref: 19
NUT
€ 3.00
20
6511006G00
ref: 20
TIRE,REAR,150/
€ 175.50
20
6511006G00
ref: 20
TIRE,REAR,150/
€ 175.50
21
4313024A00
ref: 21
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
22-1
4323282000
ref: 22-1
43222-73H10
WEIGHT,WHEEL BALANCE 10G
€ 4.00
22-2
4323482000
ref: 22-2
43224-73H10
WEIGHT,WHEEL BALANCE 20G
€ 5.00
22-3
4323682000
ref: 22-3
43226-73H10
WEIGHT,BAL. 30
€ 6.00
22-4
4322273H10
ref: 22-4
WEIGHT,WHEEL BALANCE 10G
€ 4.00
22-5
4322473H10
ref: 22-5
WEIGHT,WHEEL BALANCE 20G
€ 5.00
22-6
4322673H10
ref: 22-6
WEIGHT,WHEEL BALANCE 30G
€ 6.00
