RADIATOR

DL1000 VSTROM 2006 (K6) USA (E03)

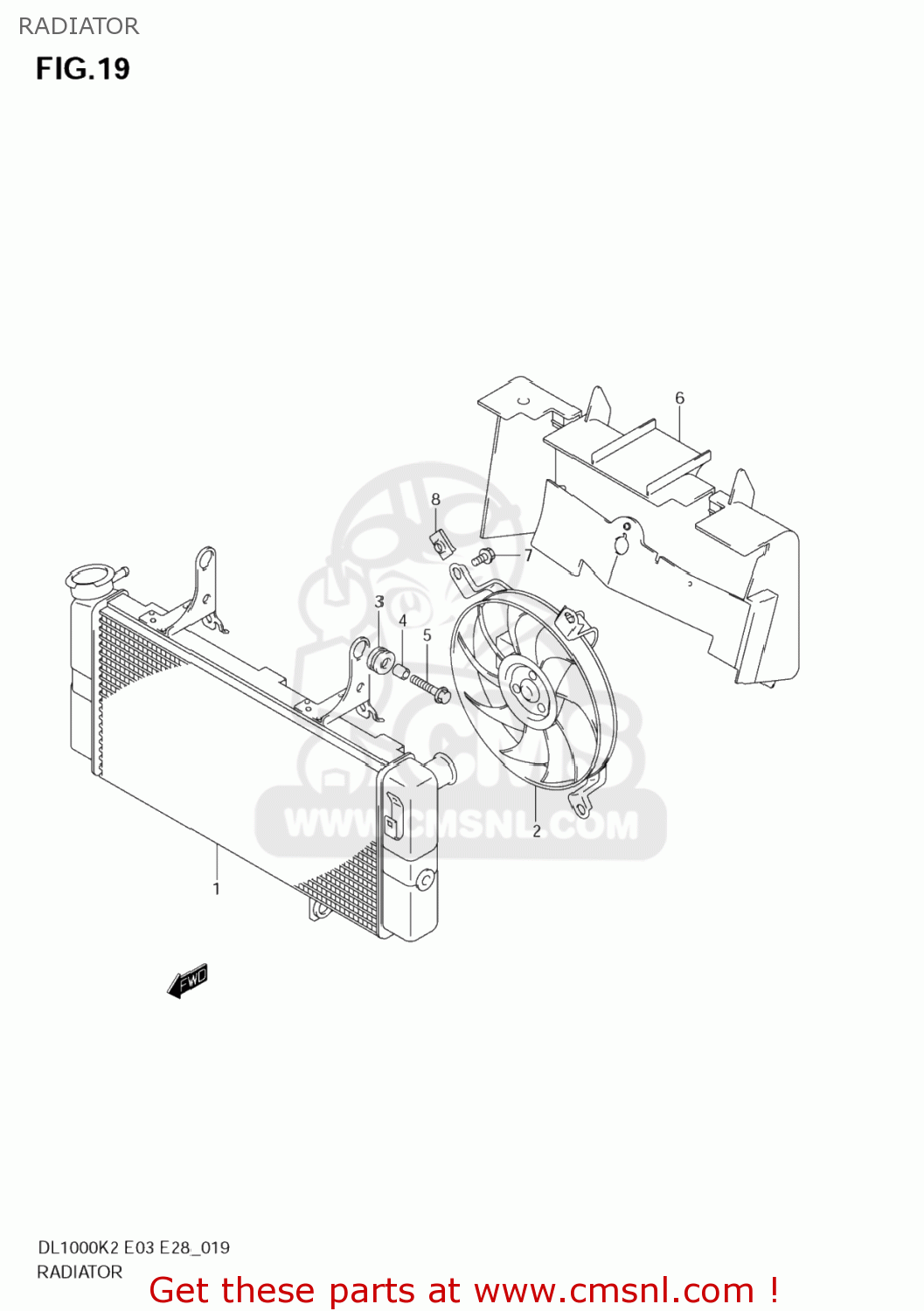

Radiator diagram DL1000 VSTROM 2006 (K6) USA (E03)

RADIATOR DL1000 VSTROM 2006 (K6) USA (E03)

RADIATOR DL1000 VSTROM 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771006G00
ref: 1

RADIATOR ASSY,WATER

€ 937.00

2

1780006G00
ref: 2

FAN ASSY,RADIATOR

€ 855.00

3-1

0932010042
ref: 3-1

CUSHION

€ 4.00

3-2

0932010051
ref: 3-2

CUSHION

€ 3.50

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5

0911806097
ref: 5

BOLT(6X25)

€ 2.50

6

1776006G00
ref: 6

SHIELD,RADIATOR HEAT

€ 47.00

7

1771140F00
ref: 7

BOLT,FAN ASSY

€ 3.50

8

1771240F00
ref: 8

NUT,FAN ASSY

€ 3.50
