AIR CLEANER
DR100 1984 (E) USA (E03)

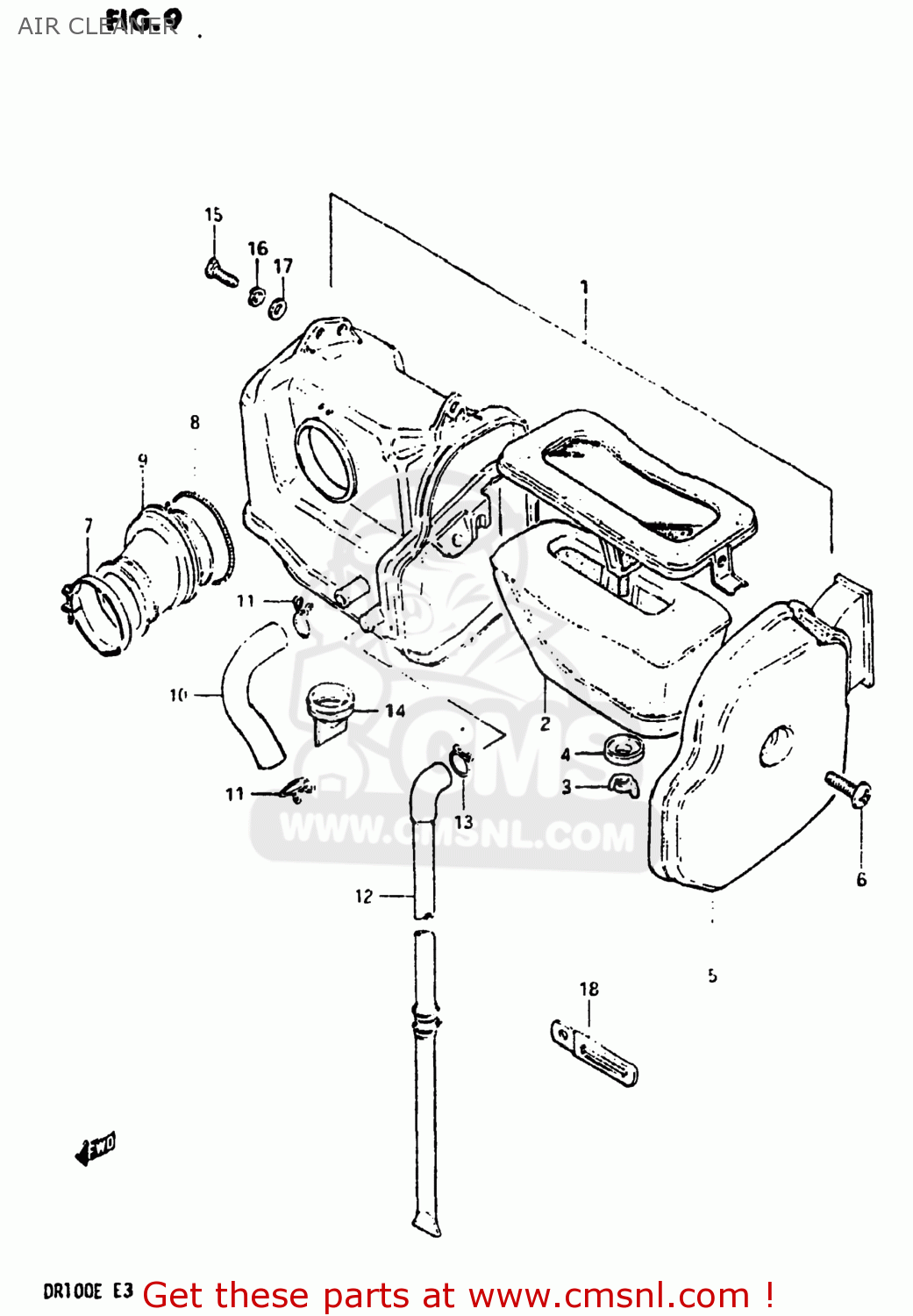

Air cleaner diagram DR100 1984 (E) USA (E03)
AIR CLEANER DR100 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370005230
ref: 1
13700-05231
CLEANER ASSEMBLY,AIR
€ 114.00
2
1378138200
ref: 2
13780-38200
ELEMENT,AIR CLEANER
€ 44.00
3
0831711056
ref: 3
08317-1205A
NUT
€ 2.00
4
1379620400
ref: 4
WASHER
€ 4.00
5
1374005230
ref: 5
CAP,AIR CLEANER
€ 18.50
6
0214206255
ref: 6
09125-06055
SCREW, COVER SIDE
€ 3.00
7
0940246306
ref: 7
09402-46208
CLAMP
€ 4.50
8
1393102100
ref: 8
CLAMP,CLEANER SIDE
€ 4.00
9
1388105200
ref: 9
TUBE,OUTLET
€ 13.50
10
1385305200
ref: 10
TUBE,AIR CLEANER BREATER
€ 7.50
11
0940116301
ref: 11
CLAMP
€ 2.50
12
1387320400
ref: 12
HOSE,AIR CLEANER DRAIN
€ 13.50
13
0940100020
ref: 13
CLAMP
€ 0.00
14
1387000100
ref: 14
13870-21628
DRAIN TUBE
€ 23.50
15
0110706168
ref: 15
01500-06167
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0916006007
ref: 17
09160-06084
WASHER
€ 2.00
18
0940406413
ref: 18
09404-06432
CLAMP
€ 2.50
