DR100 1984 (E) USA (E03)

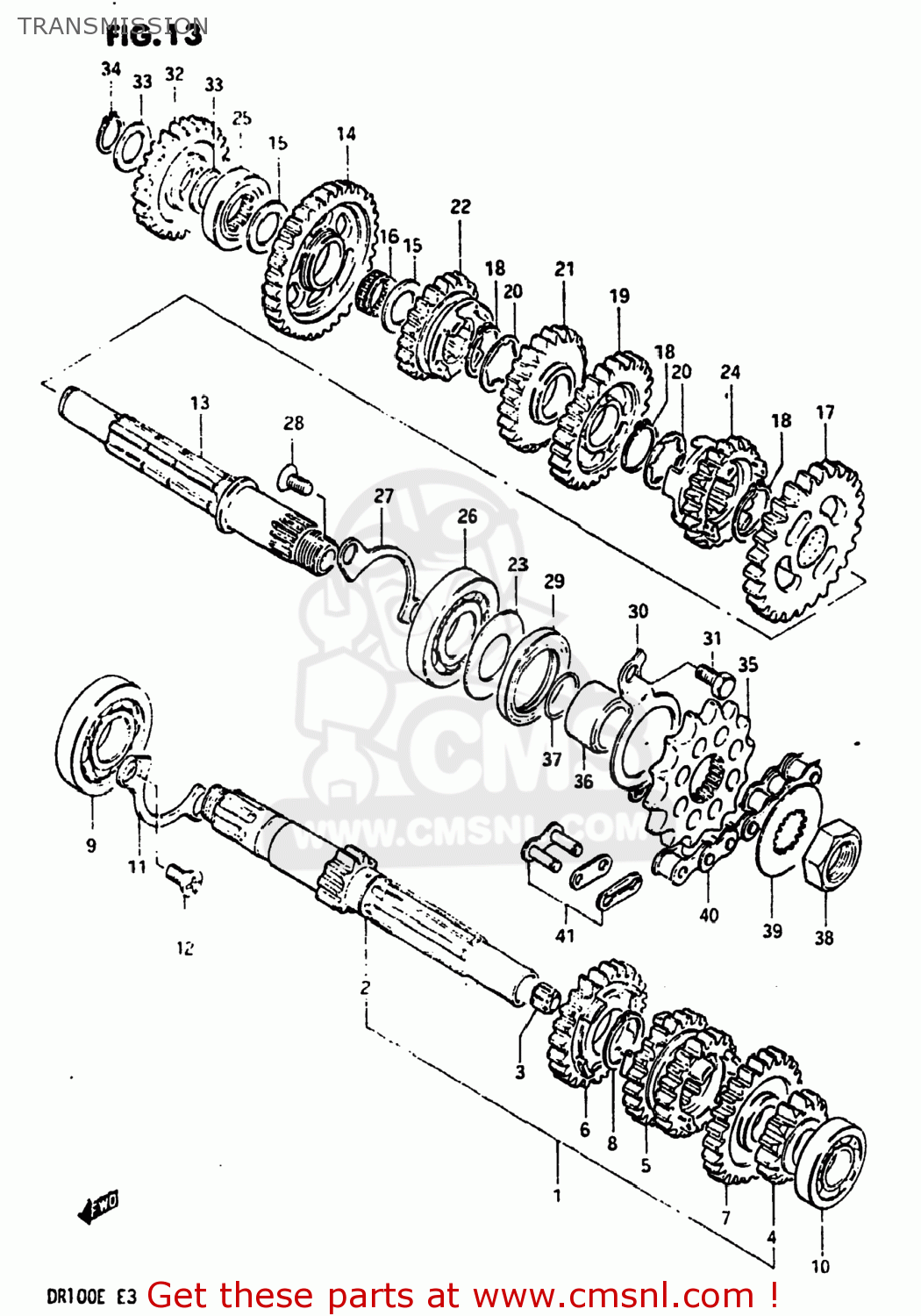

Transmission diagram DR100 1984 (E) USA (E03)
TRANSMISSION DR100 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412005210
ref: 1
24120-05213
SHAFT,COUNTER
€ 132.00
2
2412105210
ref: 2
24121-05211
SHAFT,COUNTER
€ 0.00
3
2412538200
ref: 3
24125-38201
BUSHING
€ 3.50
4
2422105210
ref: 4
24221-05211
GEAR,SECOND DRIVE
€ 13.50
5
2423105201
ref: 5
24231-05203
GEAR,THIRD & FOURTH DRIVE,N
€ 61.50
6
2425105210
ref: 6
24251-05212
GEAR,FIFTH DRIVE
€ 50.00
7
2426105210
ref: 7
24260-44A01
GEAR,SIXTH DRIVE
€ 66.50
8
0938020009
ref: 8
CIRCLIP
€ 2.00
9
0926220062
ref: 9
09262-20069
BEARING
€ 28.00
10
0812360020
ref: 10
08123-60027
BEARING, LH
€ 16.00
11
2474105200
ref: 11
RETAINER,DRIVE SHAFT BEARING
€ 3.50
12
0212206128
ref: 12
02122-06127
SCREW
€ 3.00
13
2413005200
ref: 13
SHAFT,DRIVE
€ 93.00
14
2431105210
ref: 14
GEAR,FIRST DRIVEN
€ 33.00
15
0821115251
ref: 15
WASHER
€ 2.00
16
0926315023
ref: 16
BEARING(15X19X7.8)
€ 10.50
17
2432005210
ref: 17
GEAR,SECOND DRIVEN
€ 35.00
18
0938020009
ref: 18
CIRCLIP
€ 2.00
19
2433105200
ref: 19
24331-05203
GEAR,THIRD DRIVEN
€ 50.00
20
0916720011
ref: 20
WASHER,LOCK
€ 2.50
21
2434105201
ref: 21
24341-05203
GEAR,FOURTH DRIVEN
€ 50.00
22
2435105210
ref: 22
24351-05211
GEAR,FIFTH DRIVEN
€ 50.50
23
2435905200
ref: 23
WASHER,OIL SEALING
€ 4.50
24
2436105210
ref: 24
24361-05211
GEAR,SIXTH DRIVEN
€ 66.50
25
0926315024
ref: 25
BEARING(15X33X12)
€ 50.00
26
0811362040
ref: 26
09262-20069
Bearing
€ 28.00
27
2474105200
ref: 27
RETAINER,DRIVE SHAFT BEARING
€ 3.50
28
0212206128
ref: 28
02122-06127
SCREW
€ 3.00
29
0928327010
ref: 29
SEAL,OIL(27X40X6)
€ 8.00
30
2475105201
ref: 30
24751-05210
PLATE,DRIVESHAFT OIL
€ 3.00
31
0110706108
ref: 31
01500-06107
BOLT
€ 2.00
32
2626005201
ref: 32
GEAR,KICK STARTER IDLE(NT:26)
€ 35.50
33
0821115201
ref: 33
WASHER
€ 2.00
34
0833131159
ref: 34
08331-3115A
CIRCLIP,15MM
€ 2.00
35
2751141701
ref: 35
SPROCKET,ENGINE(NT:13)
€ 20.00
36
2753105200
ref: 36
SPACER
€ 13.50
37
0928019005
ref: 37
O RING(D:2.4,ID:19)
€ 2.00
38
0914016017
ref: 38
NUT
€ 4.00
39
0916720012
ref: 39
WASHER,LOCK
€ 2.50
40
2760026422
ref: 40
27600-20910-112
CHAIN ASSEMBLY,DRIVE
€ 38.00
41-1
2762012020
ref: 41-1
27620-40220
JOINT ASSEMBLY,CHAIN
€ 7.00
41-2
2762020910
ref: 41-2
JOINT,CHAIN
€ 3.00
