CRANKSHAFT
DR100 1984 (E) USA (E03)

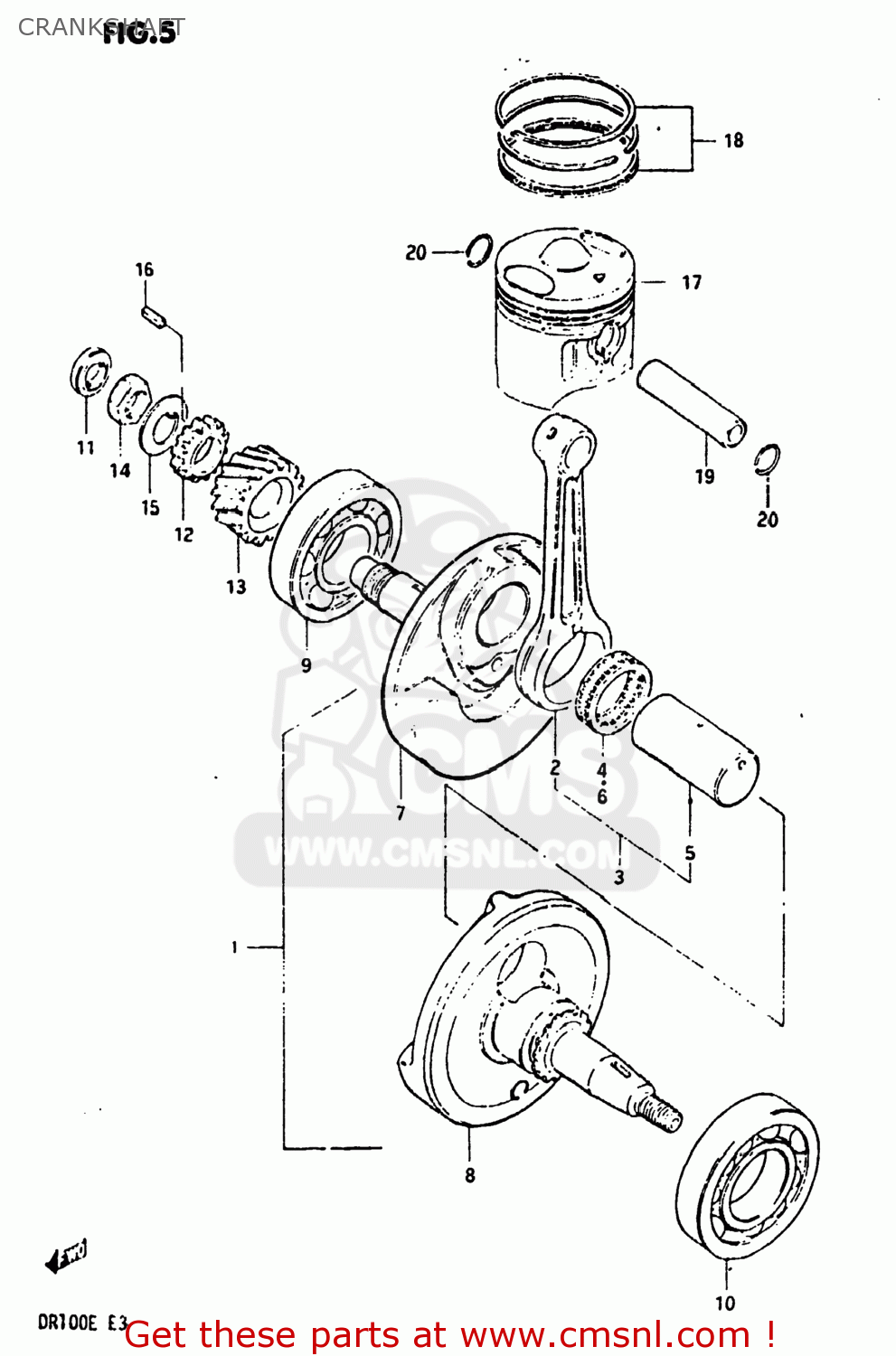

Crankshaft diagram DR100 1984 (E) USA (E03)
CRANKSHAFT DR100 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1220005230
ref: 1-1
12200-05233
CRANKSHAFT ASSEMBLY
€ 195.00
1-2
1220005231
ref: 1-2
12200-05233
CRANKSHAFT ASSEMBLY
€ 195.00
2
1216105220
ref: 2
12105-05821
CONNECTING ROD
€ 163.00
3
1220005850
ref: 3
12105-05821
CRANKSHAFT ASSEMBLY
€ 163.00
4
0926328017020
ref: 4
09263-28027-0B0
BEARING
€ 24.50
5
1221105220
ref: 5
PIN,CRANK
€ 29.50
6
0926328015
ref: 6
09263-28027-0B0
BEARING
€ 24.50
7
1222105230
ref: 7
CRANKSHAFT,RIGHT
€ 82.50
8
1226105230
ref: 8
12261-05231
CRANKSHAFT,LEFT
€ 91.00
9
0926228003
ref: 9
09262-28014
BEARING,MIDDLE
€ 40.00
10
0926235010
ref: 10
09262-35038
BEARING,LEFT
€ 38.00
11
0928212001
ref: 11
09282-12009
OIL SEAL
€ 9.00
12
1632105200
ref: 12
16321-05201
GEAR,OIL PUMP DRIVE
€ 18.00
13
2111105210
ref: 13
GEAR,PRIMARY DRIVE
€ 19.50
14
0914016019
ref: 14
NUT
€ 4.00
15
0916616012
ref: 15
WASHER
€ 1.50
16
0942104004
ref: 16
KEY
€ 3.50
17-1
1211105212
ref: 17-1
PISTON (51.00MM)
€ 0.00
17-2
1211105212050
ref: 17-2
12103-05830-050
PISTON (51.50MM)
€ 20.00
17-3
1211105212100
ref: 17-3
12103-05830-100
PISTON (52.00MM)
€ 51.00
18-1
1214005241
ref: 18-1
RING SET,PISTON
€ 47.50
18-2
1214005241050
ref: 18-2
RING SET,PISTON (OS:0.5)
€ 16.00
18-3
1214005241100
ref: 18-3
RING SET,PISTON (OS:1.0)
€ 16.00
19
1215105210
ref: 19
RING,PISTON
€ 9.50
20
0938114001
ref: 20
RING,SNAP 14MM
€ 1.50
