HEADLAMP HOUSING
DR100 1984 (E) USA (E03)

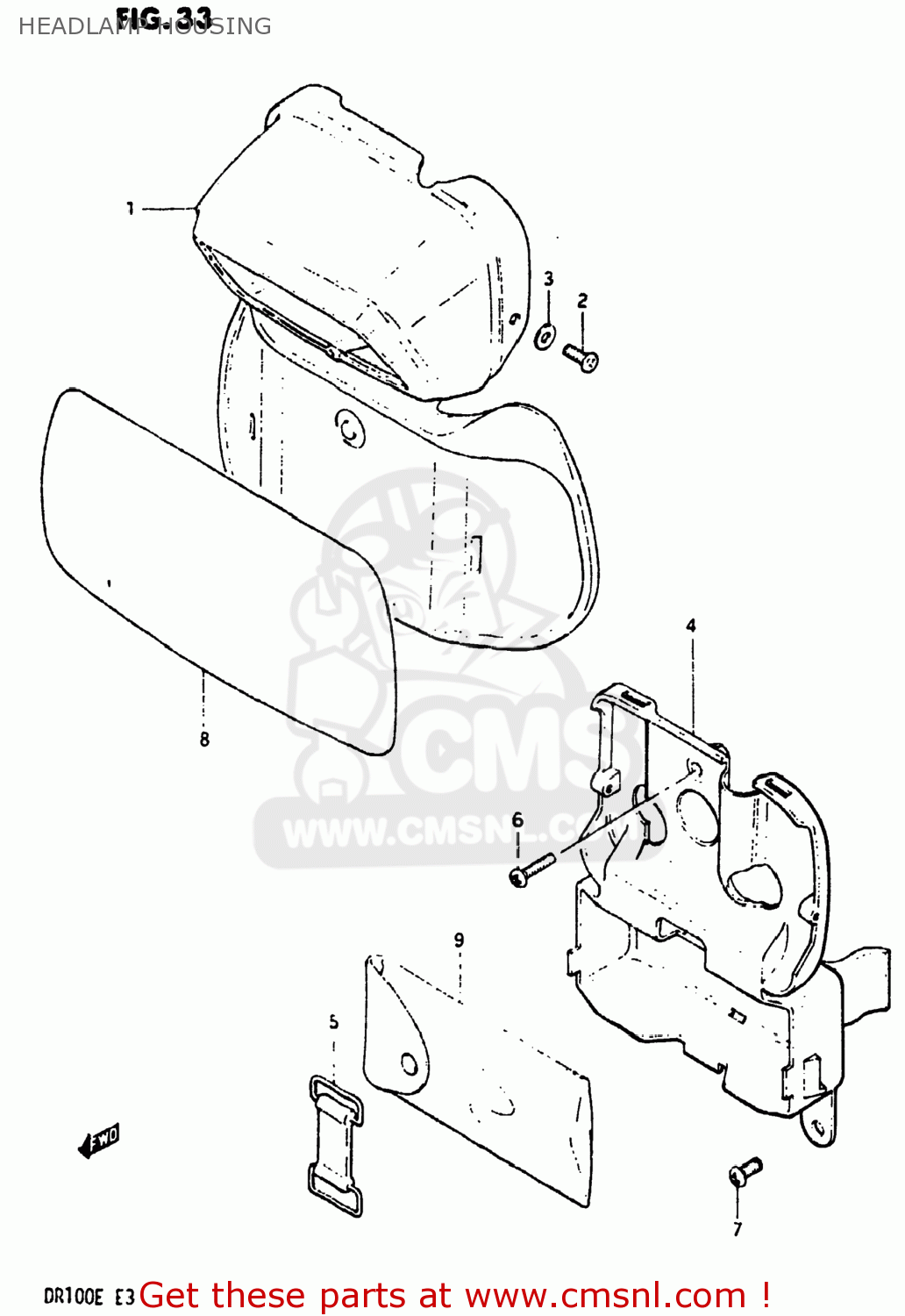

Headlamp housing diagram DR100 1984 (E) USA (E03)
HEADLAMP HOUSING DR100 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
518110520010V
ref: 1
51811-05200-30H
HOUSING,HEADLAMP
€ 20.00
2
0321104128
ref: 2
03142-0412B
TAPPING SCREW
€ 1.50
3
0832221048
ref: 3
08322-01047
WASHER
€ 2.00
4
4155105250
ref: 4
HOLDER,TOOL
€ 0.00
5
0946200017
ref: 5
BAND
€ 13.50
6
0214205208
ref: 6
02142-05207
(5X20) CROSS SCREW
€ 2.00
7
0214206128
ref: 7
02142-06127
SCREW
€ 1.50
8
6816905200
ref: 8
EMBLEM,FRONT NUMBER PLATE
€ 8.00
9
0980000245
ref: 9
09800-21021
TOOL SET
€ 33.00
