CARBURETOR
DR100 1987 (H) USA (E03)

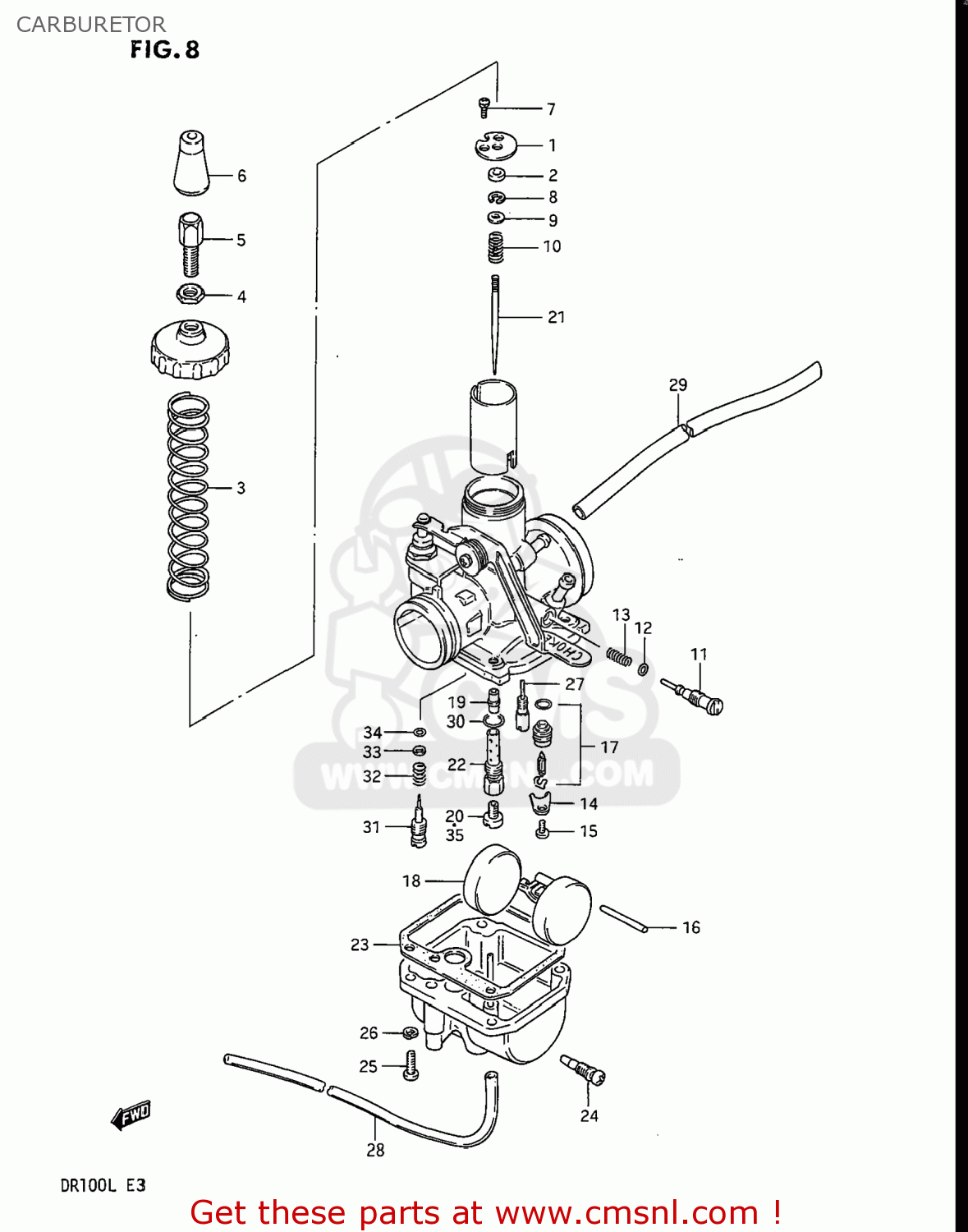

Carburetor diagram DR100 1987 (H) USA (E03)
CARBURETOR DR100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320005220
ref:
CARBURETOR ASSY
€ 0.00
1
1337305230
ref: 1
PLATE,NEEDLE VALVE FITTING
€ 7.00
2
1338747010
ref: 2
RING
€ 7.50
3
1357305230
ref: 3
SPRING,THROTTLE VALVE
€ 0.00
4
1366116600
ref: 4
NUT
€ 5.00
5
1357748110
ref: 5
ADJUSTER,CABLE
€ 8.00
6
1368116600
ref: 6
CAP,RUBBER
€ 7.00
7
1360105230
ref: 7
SCREW
€ 0.00
8
1339410010
ref: 8
CLIP
€ 4.50
9
1338247010
ref: 9
WASHER,JET NEEDLE
€ 3.00
10
1338847010
ref: 10
SPRING
€ 7.00
11
1326736600
ref: 11
SCREW,THROTTLE STOP
€ 8.50
12
1329533010
ref: 12
O RING
€ 4.50
13
1326835010
ref: 13
SPRING
€ 3.00
14
1337346710
ref: 14
PLATE,NEEDLE VALVE FITING
€ 4.50
15
0211203066
ref: 15
02112-0306B
SCREW
€ 2.00
16
1325401010
ref: 16
PIN,FLOAT
€ 3.00
17
1337043250
ref: 17
13370-05320
VALVE ASSEMBLY,NEEDLE
€ 59.50
18
1325005230
ref: 18
FLOAT
€ 24.00
19
0949400409
ref: 19
JET,NEEDLE
€ 0.00
20
0949187005
ref: 20
JET,MAIN(87.5)
€ 6.50
21
1338305220
ref: 21
NEEDLE,JET(5L8-3)
€ 15.50
22
1338547030
ref: 22
PIPE,BLEEDER
€ 25.00
23
1325105230
ref: 23
GASKET,FLOAT CHAMBER
€ 0.00
24
1324702340
ref: 24
PLUG,DRAIN
€ 5.50
25
0211204166
ref: 25
02112-0416A
SCREW
€ 1.00
26
0832121046
ref: 26
08321-0104A
LOCK WASHER
€ 2.00
27
0949222008
ref: 27
JET,PILOT(22.5)
€ 9.50
28
1368418900
ref: 28
09355-30705-600
HOSE
€ 13.50
29
1368422A00
ref: 29
44420-44AR0
HOSE
€ 13.00
30
1324643010
ref: 30
O RING
€ 4.00
31
1327945400
ref: 31
SCREW,PILOT
€ 8.00
32
1326847070
ref: 32
SPRING
€ 5.00
33
1329129900
ref: 33
WASHER
€ 2.00
34
1329529900
ref: 34
O RING,PILOT AIR SCREW
€ 4.00
35-1
0949182003
ref: 35-1
JET,MAIN
€ 8.50
35-2
0949185008
ref: 35-2
JET,MAIN(85)
€ 8.50
35-3
0949190007
ref: 35-3
JET,MAIN(90)
€ 10.50
35-4
0949192004
ref: 35-4
JET,MAIN(92.5)
€ 8.50
35-5
0949195005
ref: 35-5
JET,MAIN(95)
€ 8.50
