CYLINDER
DR100 1987 (H) USA (E03)

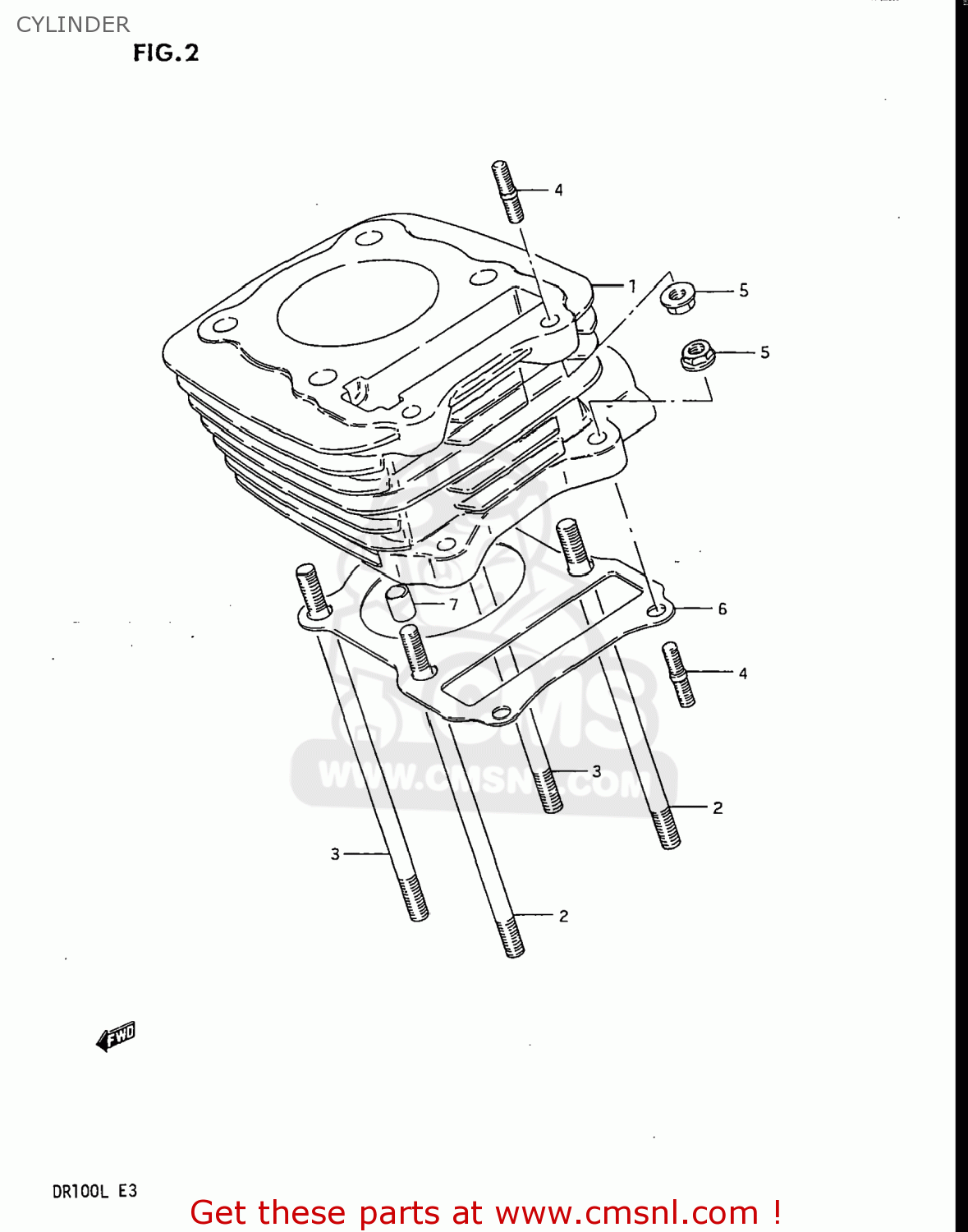

Cylinder diagram DR100 1987 (H) USA (E03)
CYLINDER DR100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121005230
ref: 1-1
11210-05240
CYLINDER
€ 135.00
1-2
1121005240
ref: 1-2
CYLINDER
€ 135.00
1-3
1121005250
ref: 1-3
11210-05240
CYLINDER
€ 135.00
2
0910808062
ref: 2
BOLT,STUD
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
€ 6.00
4
0142106255
ref: 4
01421-0625A
STUD 6X25
€ 2.00
5
0831616064
ref: 5
08316-1006B
NUT 6MM
€ 2.50
6
1124105200
ref: 6
11241-05311
GASKET,CYLINDER (MCA)
€ 4.50
7-1
0421111169
ref: 7-1
PIN
€ 2.00
7-2
0421111149
ref: 7-2
PIN
€ 2.00
