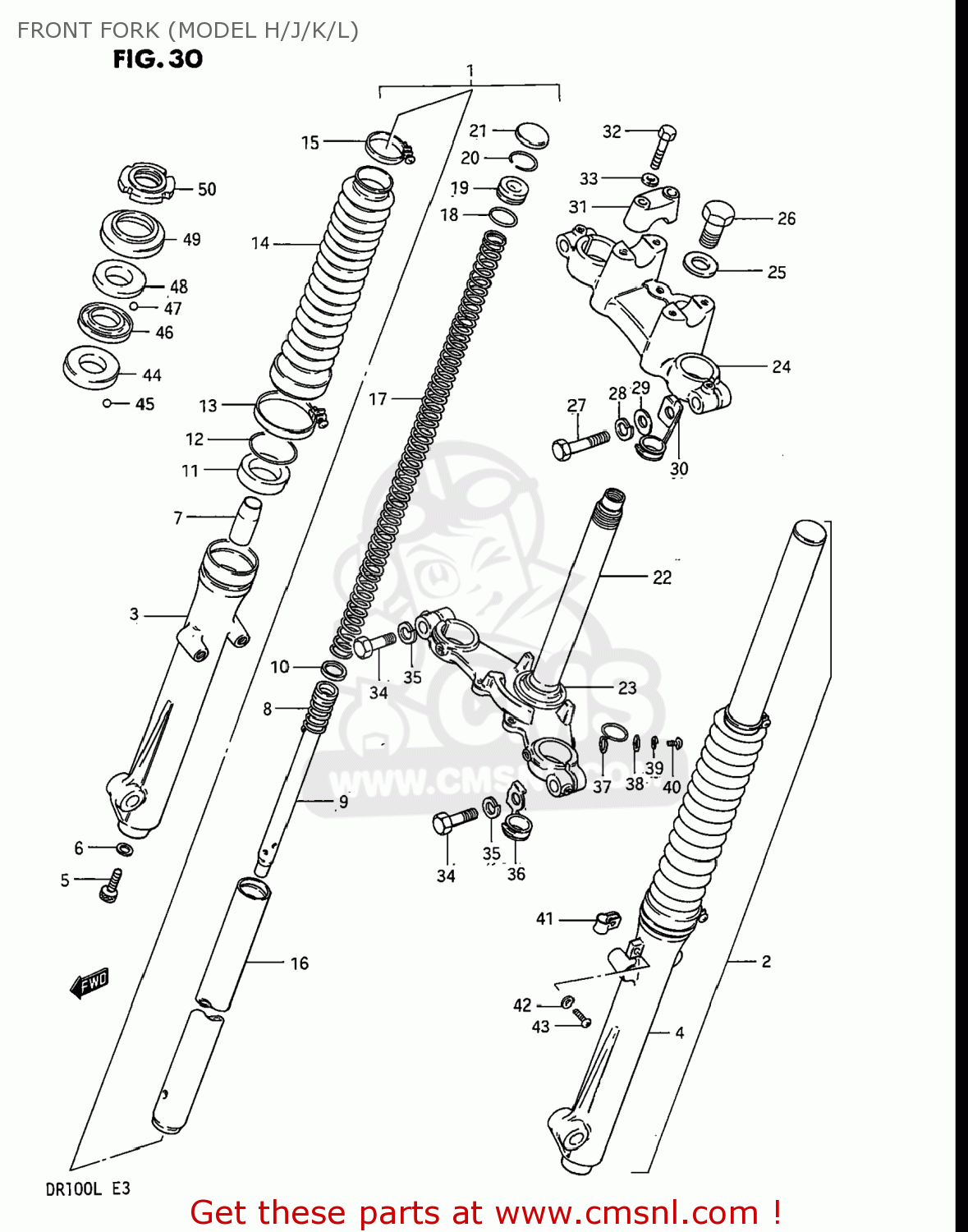

FRONT FORK (MODEL H/J/K/L)

ref

part #

description

quantity

1-1

51103052609CC
ref: 1-1

DAMPER ASSEMBLY,RIGHT

€ 186.00

1-2

51103052609VC
ref: 1-2

DAMPER ASSEMBLY,RIGHT

€ 186.00

1-3

51103052602US
ref: 1-3

DAMPER ASSEMBLY,RIGHT

€ 198.50

1-4

51103052603SC
ref: 1-4

DAMPER ASSEMBLY,RIGHT

€ 198.50

2-1

51104052609CC
ref: 2-1

DAMPER ASSEMBLY,LEFT

€ 186.00

2-2

51104052609VC
ref: 2-2

DAMPER ASSEMBLY,LEFT

€ 186.00

2-3

51104052602US
ref: 2-3

DAMPER ASSEMBLY,LEFT

€ 205.00

2-4

51104052603SC
ref: 2-4

DAMPER ASSEMBLY,LEFT

€ 198.50

3-1

511310526025Y
ref: 3-1

TUBE,OUTER,RIGHT

€ 76.00

3-2

511310526030H
ref: 3-2
51131-05260-13L

TUBE,OUTER,RIGHT

€ 83.50

3-3

511310526013L
ref: 3-3

TUBE,OUTER,RIGHT

€ 83.50

4-1

511410526025Y
ref: 4-1
51141-05260-13L

TUBE,OUTER,LEFT

€ 93.00

4-2

511410526030H
ref: 4-2
51141-05260-13L

TUBE,OUTER,LEFT

€ 93.00

4-3

511410526013L
ref: 4-3

TUBE,OUTER,LEFT

€ 93.00

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114836011
ref: 6

GASKET (NAS)

€ 4.00

7

5119548000
ref: 7

PIECE,OIL LOCK

€ 8.50

8

5117748720
ref: 8

SPRING,REBOUND

€ 3.00

9

5114605240
ref: 9

CYLINDER,FRONT FORK

€ 24.00

10

5119648000
ref: 10

RING

€ 5.50

11

5115348420
ref: 11

SEAL,OIL

€ 11.00

12

5115636030
ref: 12
51156-48730

CIRCLIP,FORK OIL SEAL

€ 2.50

13

5157626515
ref: 13

BAND,FRONT FORK BOOT

€ 3.50

14-1

515712651519F
ref: 14-1

BOOT,FR FORK COVER

€ 35.50

14-2

515712651534S
ref: 14-2
51571-26515-19F

BOOT

€ 35.50

14-3

515712651525Y
ref: 14-3
51571-26515-19F

BOOT

€ 35.50

15

5157526515
ref: 15

BAND,FRONT FORK BOOT

€ 3.50

16

5111005260
ref: 16

TUBE,FORK,INNER

€ 44.50

17

5117105240
ref: 17

SPRING,FRONT FORK

€ 13.00

18

5118133131
ref: 18

O RING

€ 5.00

19

5117548500
ref: 19

SEAT,SPRING

€ 9.00

20

5116948500
ref: 20

RING,STOPPER

€ 2.00

21

5118926515
ref: 21

CAP,FR FORK

€ 10.00

22-1

5141005240291
ref: 22-1
51410-05280-291

STEM,STEERING

€ 223.00

22-2

5141005241291
ref: 22-2
51410-05280-291

STEM,STEERING

€ 223.00

22-3

514100524113L
ref: 22-3
51410-05280-291

STEM,STEERING

€ 223.00

23

5162133001
ref: 23

RACE,STEERING OUTER LWR

€ 10.00

24

5131105240291
ref: 24
51311-26505-291

HEAD,STEERING STEM

€ 124.50

25

5135620900
ref: 25
51356-46030

WASHER

€ 5.00

26

5135220900
ref: 26

BOLT,STEERING STEM HEAD

€ 0.00

27

0110710404
ref: 27
01500-1040A

BOLT

€ 2.50

28

0832121104
ref: 28
08321-0110A

WASHER,LOCK

€ 3.00

29

0832211104
ref: 29
08322-0110A

WASHER 10MM

€ 2.50

30

5145505240
ref: 30

GUIDE,CABLE

€ 5.50

31

5621127200291
ref: 31

HOLDER,HANDLE UPR

€ 13.50

32

0120408354
ref: 32
01204-08357

BOLT

€ 3.50

33

0832121084
ref: 33
08321-0108A

WASHER,LOCK,8.

€ 2.50

34

0110710355
ref: 34
01500-1035B

BOLT

€ 2.50

35

0832121104
ref: 35
08321-0110A

WASHER,LOCK

€ 3.00

36

5145205240
ref: 36

GUIDE,CABLE

€ 0.00

37

5145248500
ref: 37

CLIP

€ 6.00

38

0832221067
ref: 38
08322-01067

WASHER

€ 2.00

39

0832121067
ref: 39
08321-01067

WASHER,LOCK

€ 2.50

40

0211206128
ref: 40
02112-06127

SCREW 6X12

€ 2.00

41

5145246040
ref: 41

CLIP,FR BRAKE CABLE

€ 5.50

42

0832121088
ref: 42
08321-01087

LOCK WASHER

€ 2.00

43

0211204167
ref: 43
02112-0416A

SCREW

€ 1.00

44

5161133002
ref: 44

LACE,STEERING INNER LWR

€ 7.00

45

0611108003
ref: 45

BALL

€ 1.50

46

5161120002
ref: 46

RACE,STEERING INNER UPR

€ 5.50

47

0611106003
ref: 47

BALL

€ 1.50

48

5162128000
ref: 48

RACE,STEERING OUTER UPR

€ 7.00

49

5164325001
ref: 49

DUST SEAL,STEERING UPR

€ 4.50

50

5163128000
ref: 50

NUT,STEERING STEM(25X44X10)

€ 12.50

all assemblies
