CRANKSHAFT
DR100 1987 (H) USA (E03)

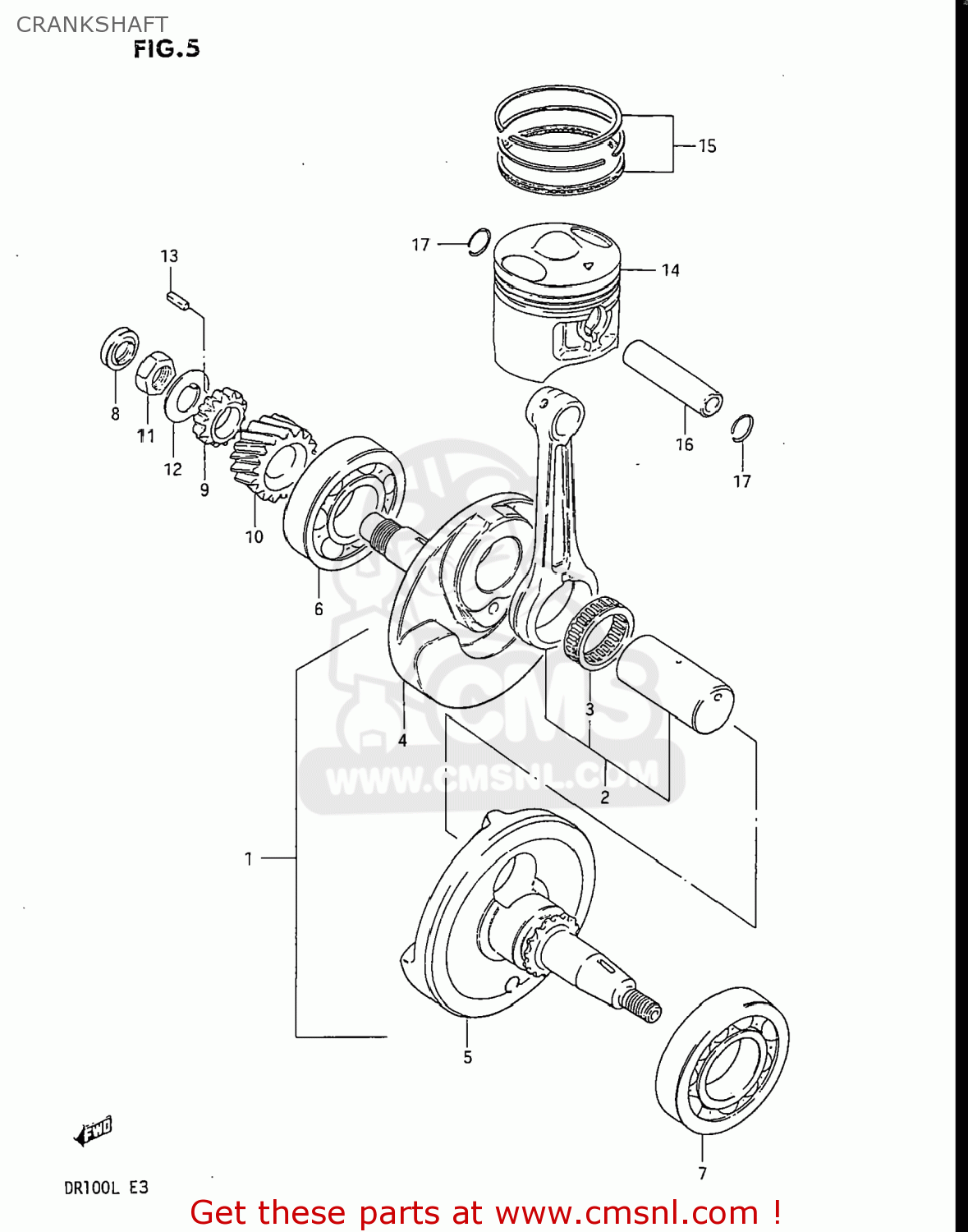

Crankshaft diagram DR100 1987 (H) USA (E03)
CRANKSHAFT DR100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220005233
ref: 1
CRANKSHAFT ASSEMBLY
€ 195.00
2
1220005851
ref: 2
12105-05821
CRANKSHAFT ASSEMBLY
€ 163.00
3
09263280220B0
ref: 3
09263-28027-0B0
BEARING
€ 24.50
4
1222105230
ref: 4
CRANKSHAFT,RIGHT
€ 82.50
5
1226105230
ref: 5
12261-05231
CRANKSHAFT,LEFT
€ 91.00
6
0926228014
ref: 6
BEARING(28X68X18)
€ 40.00
7
0926235038
ref: 7
BEARING(35X72X17)
€ 38.00
8
0928212001
ref: 8
09282-12009
OIL SEAL
€ 9.00
9
1632105200
ref: 9
16321-05201
GEAR,OIL PUMP DRIVE
€ 18.00
10
2111105210
ref: 10
GEAR,PRIMARY DRIVE
€ 19.50
11
0914016019
ref: 11
NUT
€ 4.00
12
0916616012
ref: 12
WASHER
€ 1.50
13
0942104004
ref: 13
KEY
€ 3.50
14-1
1211105212
ref: 14-1
PISTON (51.00MM)
€ 0.00
14-2
1211105212050
ref: 14-2
12103-05830-050
PISTON (51.50MM)
€ 20.00
14-3
1211105212100
ref: 14-3
12103-05830-100
PISTON (52.00MM)
€ 51.00
15-1
1214005241
ref: 15-1
RING SET,PISTON
€ 47.50
15-2
1214005241050
ref: 15-2
RING SET,PISTON (OS:0.5)
€ 16.00
15-3
1214005241100
ref: 15-3
RING SET,PISTON (OS:1.0)
€ 16.00
16
1215105210
ref: 16
RING,PISTON
€ 9.50
17
0938114001
ref: 17
RING,SNAP 14MM
€ 1.50
