CAM SHAFT - VALVE
DR100 1988 (J) USA (E03)

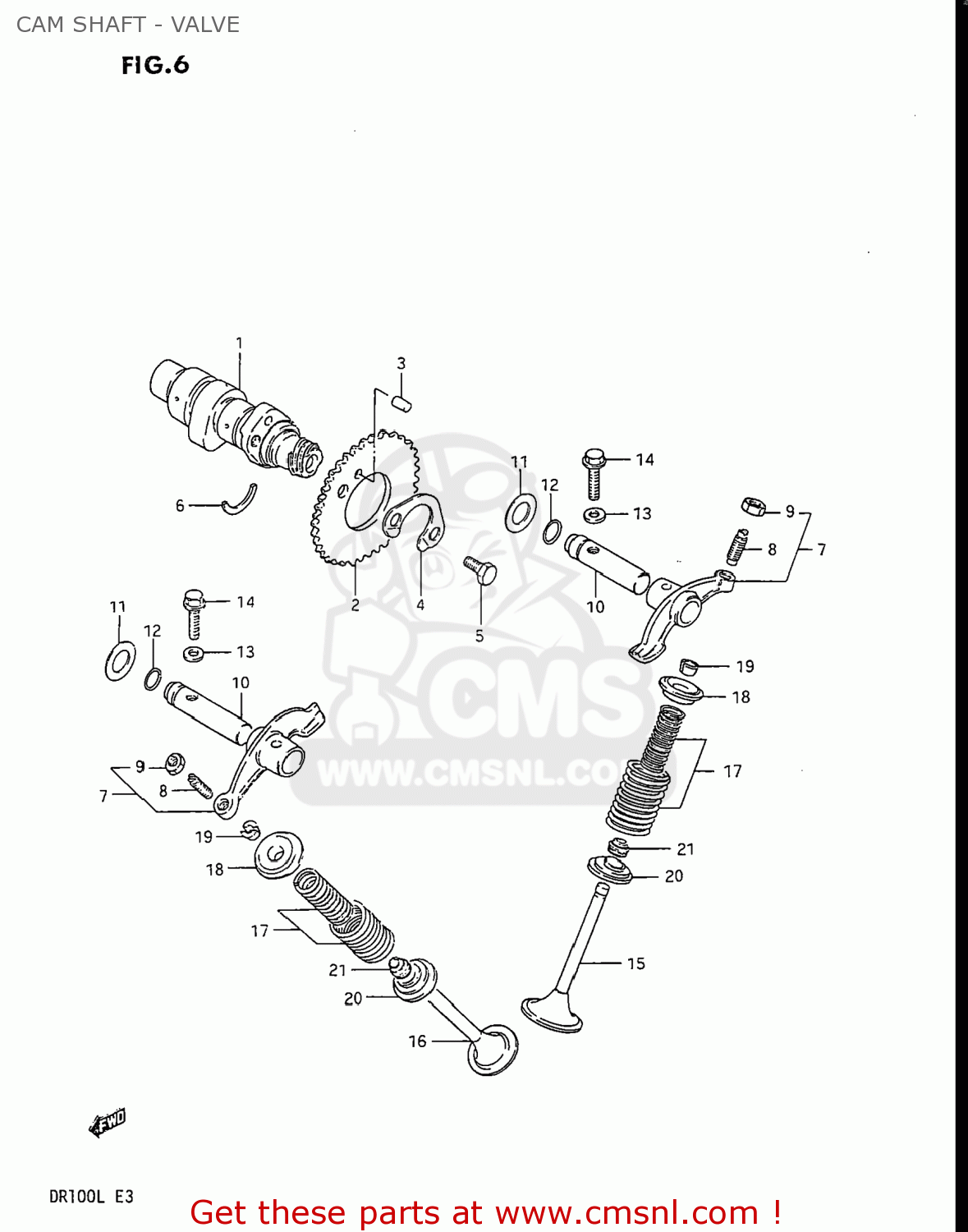

Cam shaft - valve diagram DR100 1988 (J) USA (E03)
CAM SHAFT - VALVE DR100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271105211
ref: 1
CAMSHAFT
€ 44.50
2
1274105201
ref: 2
SPROCKET,CAMSHAFT
€ 14.00
3
0926105005
ref: 3
PIN(5X8)
€ 1.50
4
1274705201
ref: 4
12747-05202
WASHER,SPROCKET
€ 2.00
5
0911106032
ref: 5
BOLT(6X10.5)
€ 2.00
6
0939022002
ref: 6
C RING
€ 2.00
7
1284005200
ref: 7
12850-25C00
ARM,VALVE ROCKER
€ 28.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10
1286105201
ref: 10
SHAFT,VALVE ROCKET
€ 9.50
11
0916412021
ref: 11
WASHER
€ 2.00
12
0928009005
ref: 12
O RING(D:1.9,ID:8.6)
€ 4.00
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
€ 2.00
14
0151706254
ref: 14
01550-0625A
BOLT
€ 2.50
15
1291105230
ref: 15
VALVE,INTAKE
€ 0.00
16
1291205230
ref: 16
VALVE,EXHAUST
€ 0.00
17
1292005230
ref: 17
12920-11C00
SPRING SET,VALVE
€ 7.00
18
1293149200
ref: 18
12931-49201
RETAINER,VALVE SPRING
€ 5.50
19
1293224400
ref: 19
COTTER,VALVE
€ 2.00
20
1293349200
ref: 20
12933-49201
SEAT,VALVE SPRING
€ 4.50
21
0928905003
ref: 21
09289-05015
OIL SEAL
€ 6.50
