HEADLAMP HOUSING

DR100 1988 (J) USA (E03)

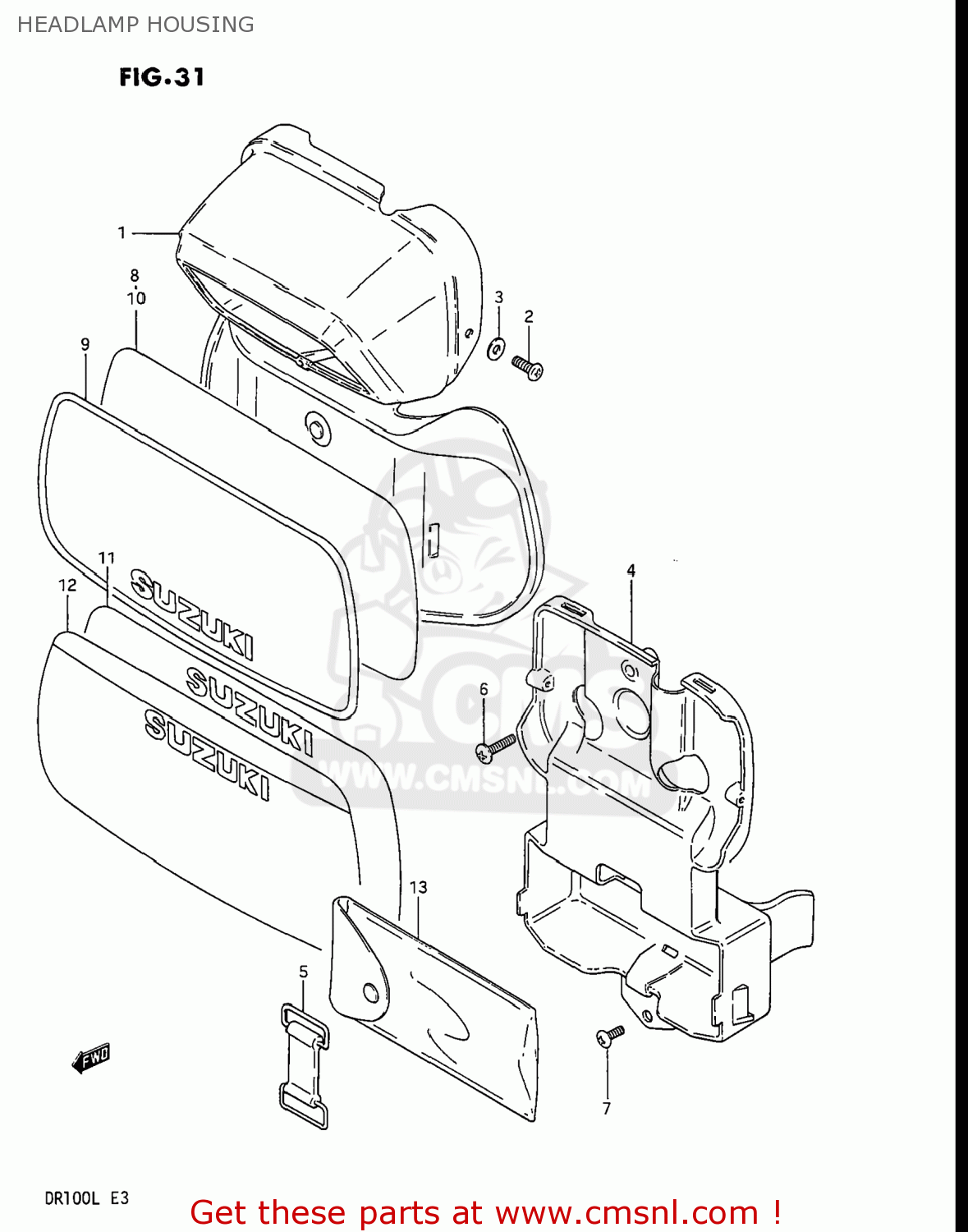

Headlamp housing diagram DR100 1988 (J) USA (E03)

HEADLAMP HOUSING DR100 1988 (J) USA (E03)
HEADLAMP HOUSING DR100 1988 (J) USA (E03)
HEADLAMP HOUSING DR100 1988 (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5181105200163
ref: 1-1
51811-05200-30H
HOUSING,HEADLAMP
€ 20.00
1-2
518110520025Y
ref: 1-2
51811-05200-30H
HOUSING,HEADLAMP
€ 20.00
1-3
518110520030H
ref: 1-3
HOUSING,HEADLAMP
€ 20.00
2
0321104128
ref: 2
03142-0412B
TAPPING SCREW
€ 1.50
3
0832221047
ref: 3
08322-01047
WASHER 4MM
0832221047
€ 2.00
4
4155105250
ref: 4
HOLDER,TOOL
€ 0.00
5
0946200017
ref: 5
BAND
0946200017
€ 13.50
6
0214205207
ref: 6
SCREW
0214205207
€ 2.00
7
0214206127
ref: 7
SCREW 6X12
0214206127
€ 1.50
8
6816905200
ref: 8
EMBLEM,FRONT NUMBER PLATE
€ 8.00
9
681690521073K
ref: 9
EMBLEM,FRONT NUMBER PLATE
€ 9.50
10-1
6816905220765
ref: 10-1
EMBLEM,FRONT NUMBER PLATE
€ 0.00
10-2
681690522033N
ref: 10-2
EMBLEM,FRONT NUMBER PLATE
€ 9.50
11
687250520071Z
ref: 11
EMBLEM,FRONT NUMBER PLATE
€ 11.50
12
687250521097J
ref: 12
68725-05210-3SF
EMBLEM,FRONT NUMBER PLATE
€ 13.00
13
0980000245
ref: 13
09800-21021
TOOL SET
€ 33.00
