FUEL COCK
DR100 1988 (J) USA (E03)

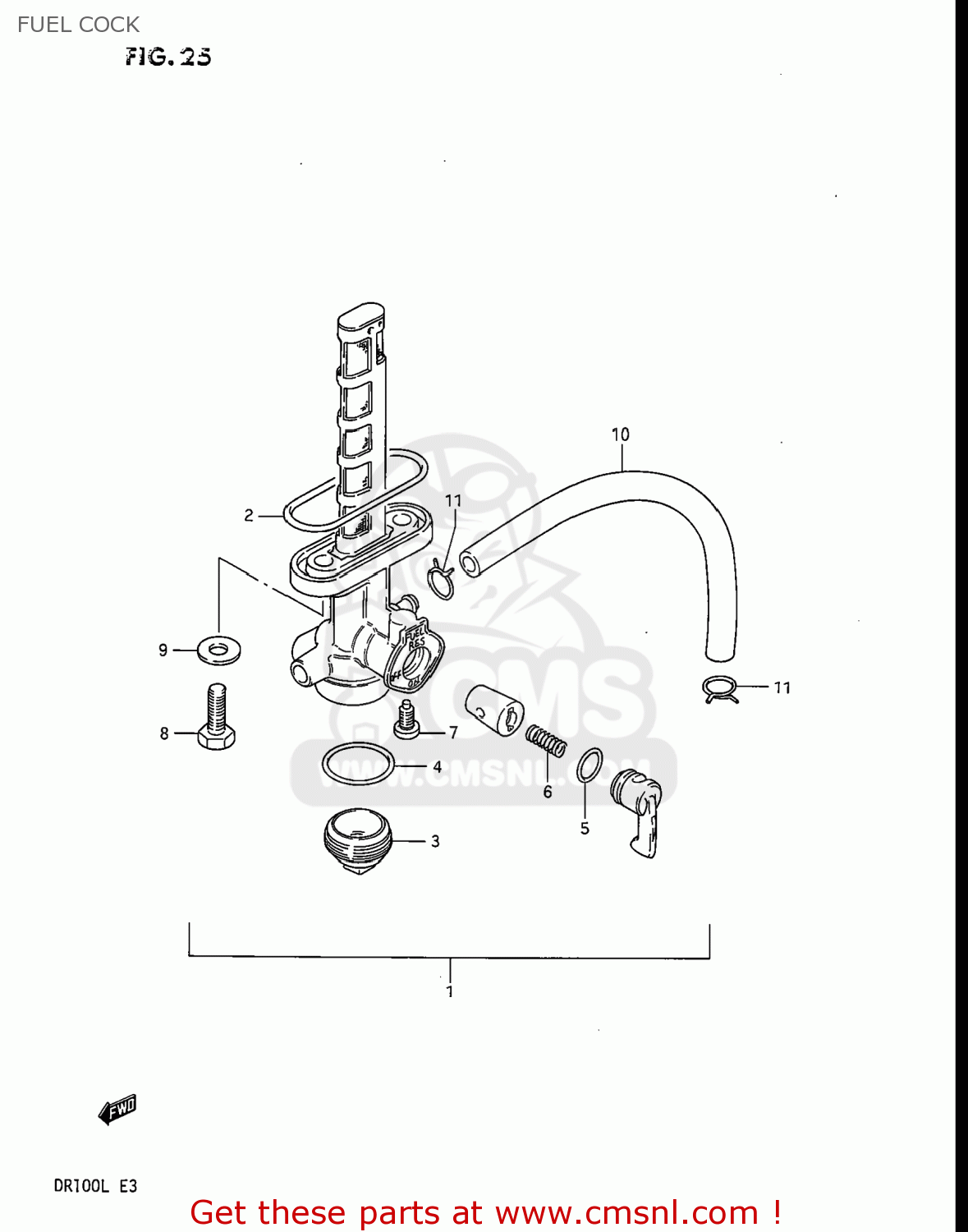

Fuel cock diagram DR100 1988 (J) USA (E03)
FUEL COCK DR100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4430005251
ref: 1
44300-05253
COCK ASSEMBLY,FUEL
€ 31.00
2
4434828070
ref: 2
O RING,FUEL COCK
€ 4.50
3
4434728071
ref: 3
CUP,STRAINER
€ 7.50
4
4434628070
ref: 4
GASKET,FILTER (NAS)
€ 2.50
5
4435332470
ref: 5
44353-12C01
O-RING
€ 7.50
6
4435732470
ref: 6
SPRING
€ 2.00
7
4434341370
ref: 7
SCREW
€ 2.00
8
0912806006
ref: 8
09128-06057
BOLT(6X20)
€ 2.00
9
0916806026
ref: 9
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
10-1
0935250823240
ref: 10-1
44420-44AR0
HOSE
€ 13.00
10-2
0935250823300
ref: 10-2
44420-44AR0
HOSE
€ 13.00
11
0940108401
ref: 11
CLIP
€ 1.50
