OIL PUMP
DR100 1988 (J) USA (E03)

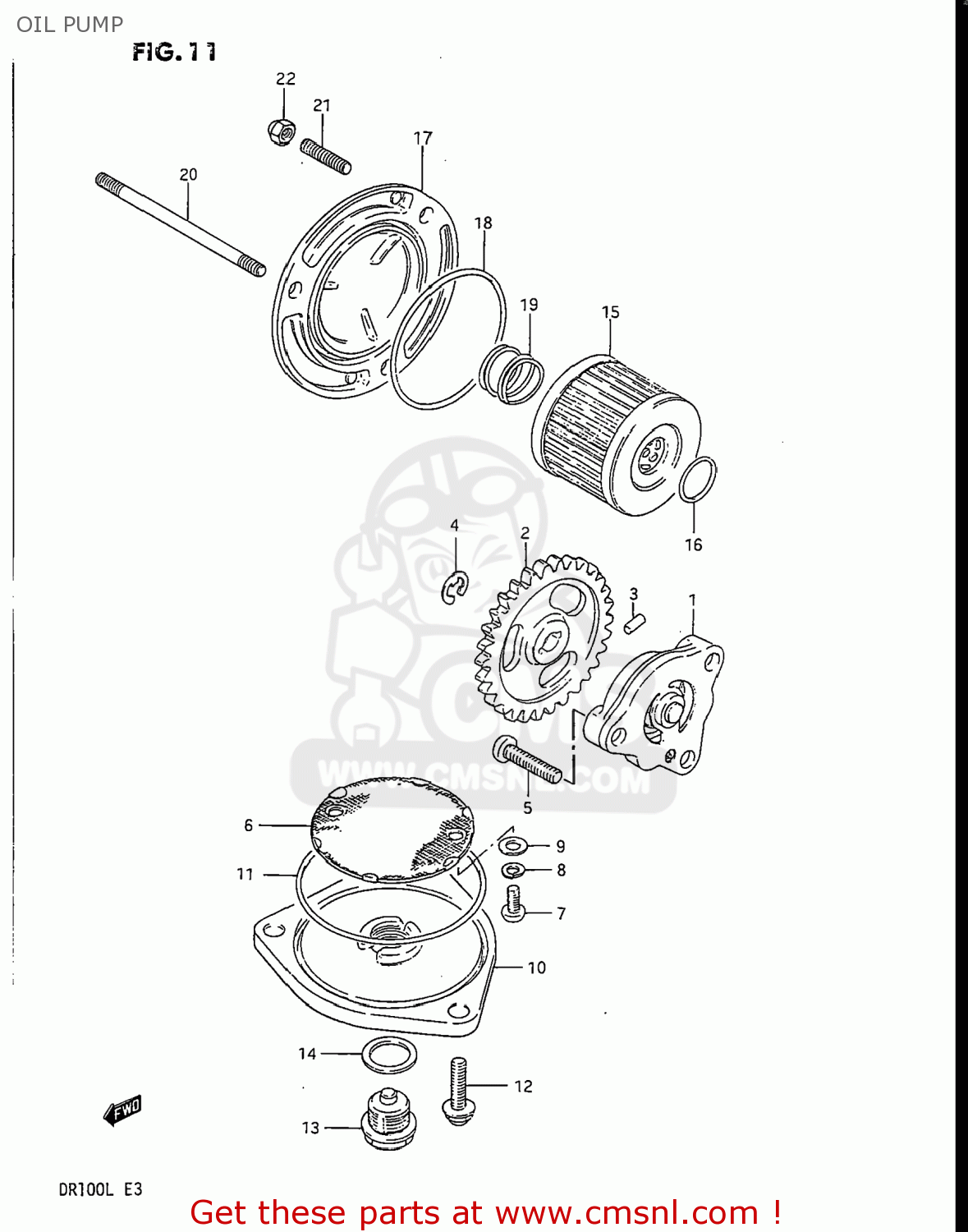

Oil pump diagram DR100 1988 (J) USA (E03)
OIL PUMP DR100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640005200
ref: 1
16400-05201
PUMP ASSEMBLY,OIL
€ 93.00
2
1633105200
ref: 2
GEAR,ENG OIL PUMP DRIVEN(NT:30
€ 21.00
3
0926102008
ref: 3
PIN(2.5X11.8)
€ 1.50
4
0833211068
ref: 4
08332-1106A
E RING 6MM
€ 2.00
5
0211206256
ref: 5
02112-0625A
SCREW
€ 1.50
6
1652005202
ref: 6
STRAINER,ENGINE OIL
€ 4.50
7
0211205126
ref: 7
02112-0512A
SCREW 5X12
€ 1.50
8
0832121056
ref: 8
08321-0105A
LOCK WASHER
€ 3.00
9
0832221056
ref: 9
08322-0105A
WASHER
€ 2.50
10
1652305200
ref: 10
CAP,OIL STRAINER
€ 9.00
11
0928060005
ref: 11
O RING(D:2.4,ID:60.5)
€ 3.00
12
0154706207
ref: 12
BOLT
€ 2.50
13
0924714001
ref: 13
09247-14002
PLUG
€ 5.00
14
0916814004
ref: 14
GASKET(14X19.2X2) (NAS)
€ 2.50
15
1651005240
ref: 15
FILTER ASSY,ENGINE OIL
€ 8.50
16
0928013004
ref: 16
O RING(D:1.9,ID:13)
€ 2.50
17-1
1651205250
ref: 17-1
16512-29B00
CAP,OIL FILTER
€ 14.50
17-2
1651205260
ref: 17-2
16512-29B00
CAP,OIL FILTER
€ 14.50
17-3
1651205900
ref: 17-3
16512-29B00
CAP,OIL FILTER
€ 14.50
18
0928054001
ref: 18
O RING(D:2.4,ID:52.6)
€ 4.00
19-1
0944018002
ref: 19-1
SPRING
€ 1.50
19-2
4828185000
ref: 19-2
09440-18002
SPRING
€ 1.50
20
0142106858
ref: 20
01421-0685A
STUD BOLT, 6X8
€ 2.50
21
0142106128
ref: 21
09108-06128
STUD 6X12
€ 1.50
22
0831311065
ref: 22
08313-1006A
NUT 6MM
€ 2.00
