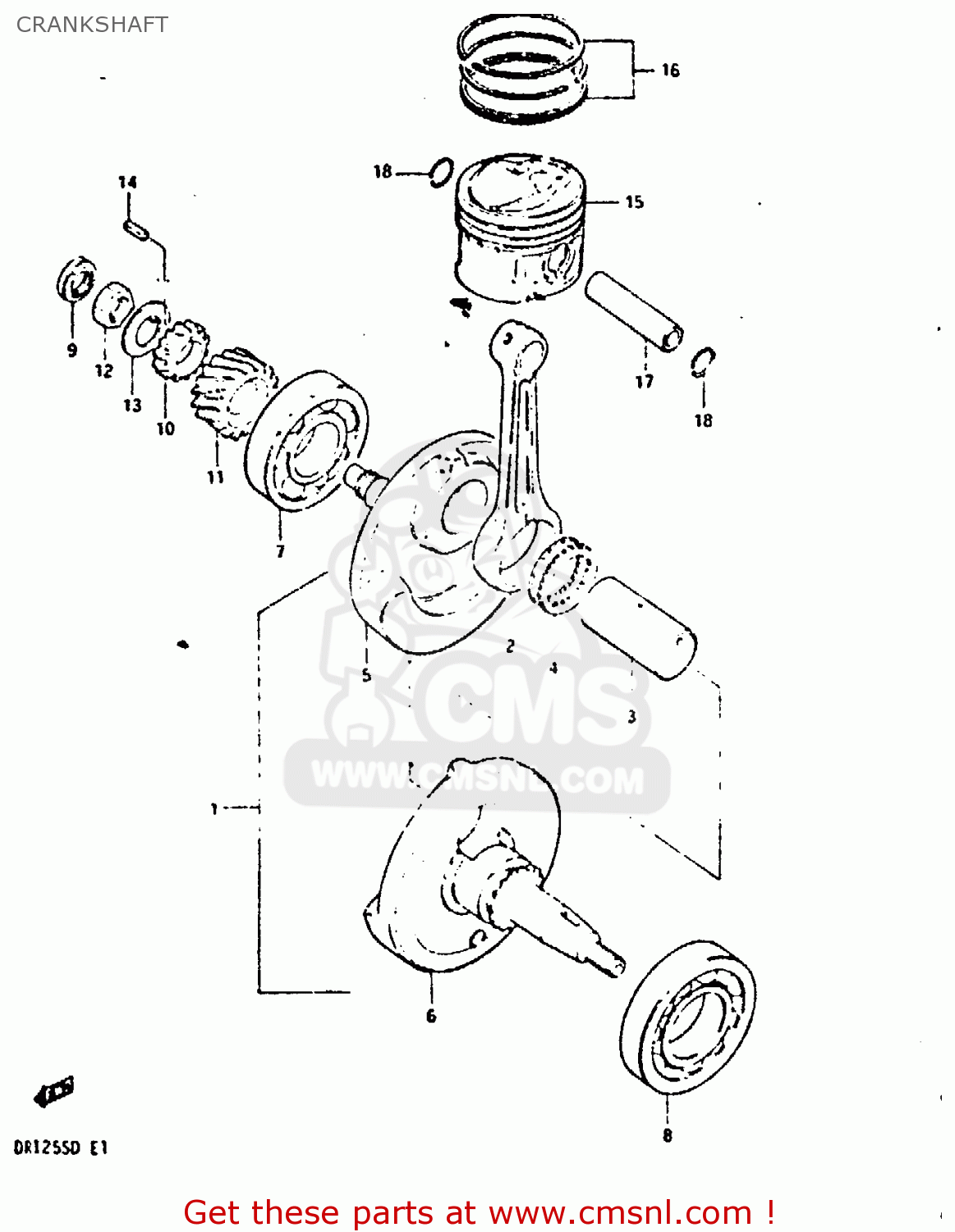

CRANKSHAFT

ref

part #

description

quantity

1-1

1220005200
ref: 1-1
~E.NO. 101281

CRANKSHAFT ASSEMBLY

€ 312.50

1-2

1220005220
ref: 1-2
E.NO. 101282-

CRANKSHAFT ASSEMBLY

€ 312.50

2-1

1216105200
ref: 2-1
-E.NO. 101281

CONNECTING ROD

€ 163.00

2-2

1216105220
ref: 2-2
E. NO. 101282-

CONNECTING ROD

€ 163.00

3-1

1221105201
ref: 3-1
~E.NO. 101281

PIN,CRANK

€ 29.50

3-2

1221105220
ref: 3-2
E.NO. 101282-

PIN,CRANK

€ 29.50

4

0926328015
ref: 4

BEARING

€ 24.50

5

1222105201
ref: 5

CRANKSHAFT

€ 150.50

6

1226105200
ref: 6

CRANKSHAFT,LEFT

€ 156.00

7

0926228003
ref: 7

BEARING,MIDDLE

€ 40.00

8

0926235010
ref: 8

BEARING,LEFT

€ 38.00

9

0928212001
ref: 9

OIL SEAL

€ 9.00

10

1632105200
ref: 10

GEAR,OIL PUMP DRIVE

€ 18.00

11

2111105200
ref: 11

GEAR,PRIMARY DRIVE

€ 33.00

12

0914016019
ref: 12

NUT

€ 4.00

13

0916616012
ref: 13

WASHER

€ 1.50

14

0942104004
ref: 14

KEY

€ 3.50

15-1

1211105201
ref: 15-1
STD, MODEL Z

PISTON (STD)

€ 39.50

15-2

1211105202
ref: 15-2
STD, MODEL D

PISTON (STD)

€ 39.50

15-3

1211105201050
ref: 15-3
OPT, MODEL Z

PISTON (OS:0.5)

€ 70.00

15-4

1211105202050
ref: 15-4
OPT, MODEL D

PISTON (OS:0.5)

€ 70.00

15-5

1211105201100
ref: 15-5
OPT, MODEL Z

PISTON (OS:1.0)

€ 77.00

15-6

1211105202100
ref: 15-6
OPT, MODEL D

PISTON (OS:1.0)

€ 77.00

16-1

1214005211
ref: 16-1
STD

RING SET,PISTON

€ 37.50

16-2

1214005211050
ref: 16-2
OPT

RING SET,PISTON (OS:0.5)

€ 88.00

16-3

1214005211100
ref: 16-3
OPT

RING SET,PISTON (OS:1.0)

€ 39.50

17-1

1215105200
ref: 17-1
~E.NO. 101281

PIN ,PISTON

€ 6.50

17-2

1215105220
ref: 17-2
E.NO. 101282~

PIN,PISTON

€ 6.50

18

0938114001
ref: 18

RING,SNAP 14MM

€ 1.50

all assemblies
