SEAT

DR125S 1982 (Z)

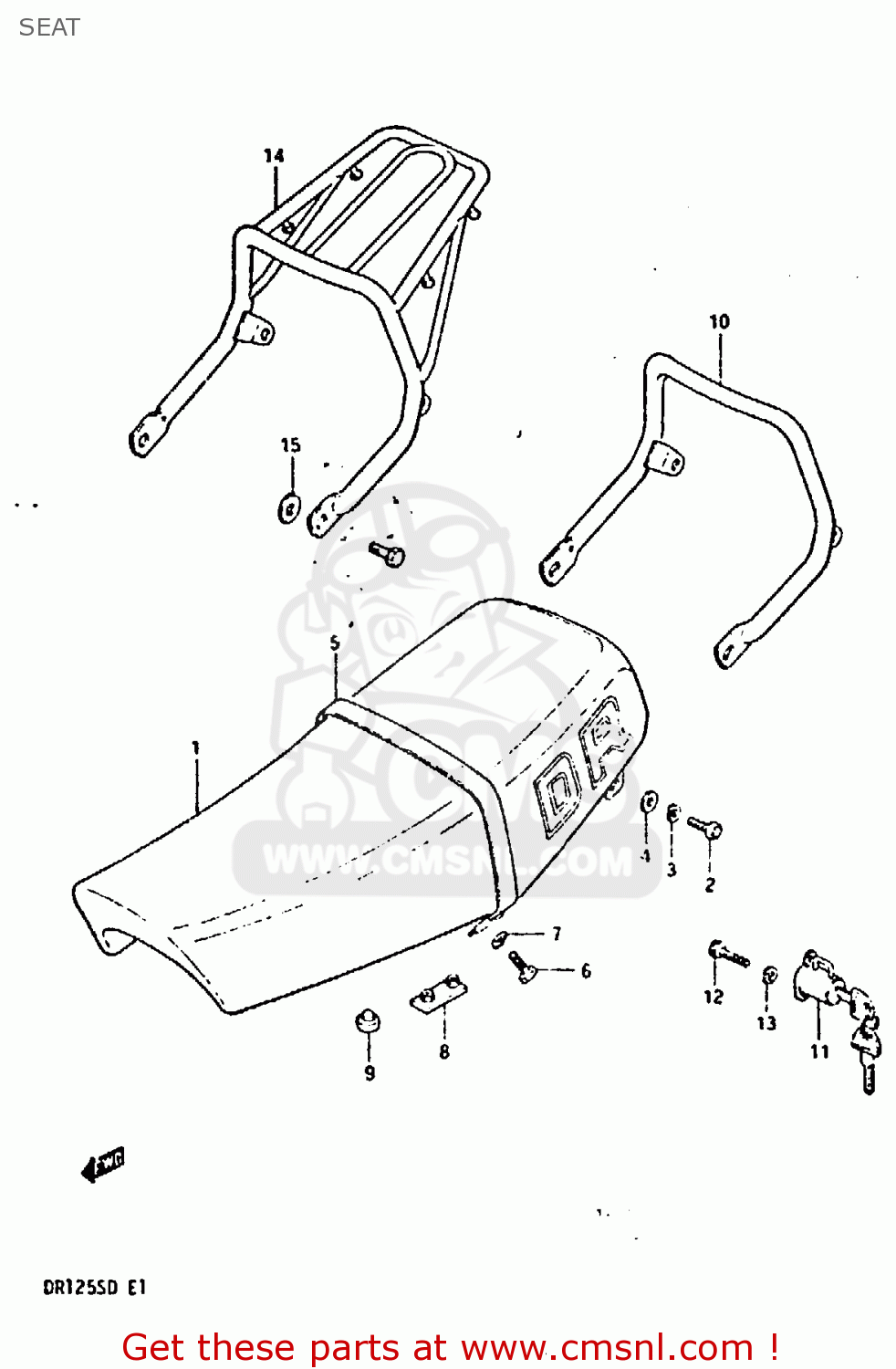

Seat diagram DR125S 1982 (Z)

SEAT DR125S 1982 (Z)
SEAT DR125S 1982 (Z)
SEAT DR125S 1982 (Z)
prices are in EUR
ref
part #
description
quantity
1-1
451000521047U
ref: 1-1
MODEL Z
SEAT ASSEMBLY
€ 126.00
1-2
451000521049R
ref: 1-2
MODEL D
SEAT ASSEMBLY
€ 126.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0110708168
ref: 2
BOLT
€ 2.00
3
0832121088
ref: 3
LOCK WASHER
0832121088
€ 2.00
4
0832211088
ref: 4
WASHER
0832211088
€ 2.00
5
4518005200
ref: 5
BAND,SEAT
€ 8.00
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
0832121088
€ 2.00
8
0932108009
ref: 8
CUSHION
0932108009
€ 4.00
9
0932110007
ref: 9
CUSHION
0932110007
€ 4.50
10-1
NOTUSED
ref: 10-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
9570035821
ref: 11
LOCK ASSEMBLY,HELMET
9570035821
€ 57.50
12
0910606024
ref: 12
BOLT 6X11
0910606024
€ 2.50
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
4631005210
ref: 14
OPT
CARRIER
4631005210
€ 66.50
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
0151708258
ref: 16
OPT
BOLT
0151708258
€ 2.50
