DR125S 1982 (Z)

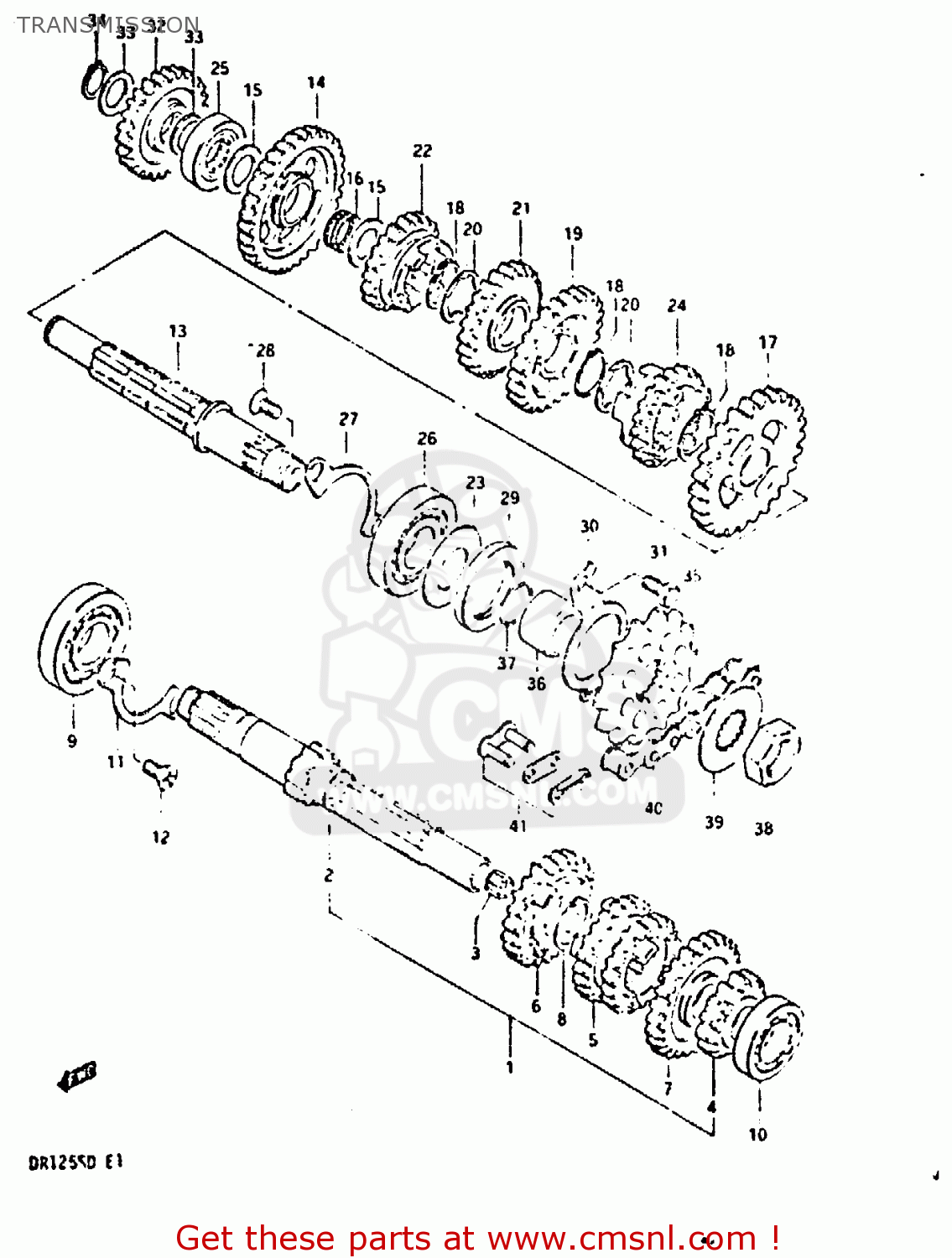

Transmission diagram DR125S 1982 (Z)
TRANSMISSION DR125S 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
2412005200
ref: 1
SHAFT,COUNTER
€ 132.00
2
2412105200
ref: 2
SHAFT,COUNTER
€ 97.00
3
2412538200
ref: 3
BUSHING
€ 3.50
4
2422105200
ref: 4
GEAR,SECOND DRIVE
€ 46.00
5
2423105201
ref: 5
GEAR,THIRD & FOURTH DRIVE,N
€ 61.50
6
2425105201
ref: 6
GEAR,FIFTH DRIVE
€ 54.50
7
2426105201
ref: 7
GEAR,SIXTH DRIVE
€ 31.50
8
0938020009
ref: 8
CIRCLIP
€ 2.00
9
0926220062
ref: 9
BEARING
€ 28.00
10
0812360020
ref: 10
BEARING, LH
€ 16.00
11
2474105200
ref: 11
RETAINER,DRIVE SHAFT BEARING
€ 3.50
12
0212206128
ref: 12
SCREW
€ 3.00
13
2413005200
ref: 13
SHAFT,DRIVE
€ 93.00
14
2431105200
ref: 14
GEAR,FIRST DRIVEN
€ 53.00
15
0821115251
ref: 15
WASHER
€ 2.00
16
0926315023
ref: 16
BEARING(15X19X7.8)
€ 10.50
17
2432005200
ref: 17
GEAR,SECOND DRIVEN
€ 40.50
18
0938020009
ref: 18
CIRCLIP
€ 2.00
19
2433105200
ref: 19
GEAR,THIRD DRIVEN
€ 50.00
20
0916720011
ref: 20
WASHER,LOCK
€ 2.50
21-1
2434105200
ref: 21-1
MODEL Z
GEAR,FOURTH DRIVEN
€ 50.00
21-2
2434105201
ref: 21-2
MODEL D
GEAR,FOURTH DRIVEN
€ 50.00
22-1
2435105200
ref: 22-1
MODEL Z
GEAR,FIFTH DRIVEN
€ 47.00
22-2
2435105201
ref: 22-2
MODEL D
GEAR,FIFTH DRIVEN
€ 47.00
23
2435905200
ref: 23
WASHER,OIL SEALING
€ 4.50
24
2436105200
ref: 24
GEAR,SIXTH DRIVEN
€ 50.00
25
0926315024
ref: 25
BEARING(15X33X12)
€ 50.00
26
0811362040
ref: 26
Bearing
€ 28.00
27
2474105200
ref: 27
RETAINER,DRIVE SHAFT BEARING
€ 3.50
28
0212206128
ref: 28
SCREW
€ 3.00
29
0928327010
ref: 29
SEAL,OIL(27X40X6)
€ 8.00
30
2475105201
ref: 30
PLATE,DRIVESHAFT OIL
€ 3.00
31
0110706108
ref: 31
BOLT
€ 2.00
32-1
2626005200
ref: 32-1
MODEL Z
GEAR,KICK STARTER IDLE
€ 35.50
32-2
2626005201
ref: 32-2
MODEL D
GEAR,KICK STARTER IDLE(NT:26)
€ 35.50
33
0821115201
ref: 33
WASHER
€ 2.00
34
0833131159
ref: 34
CIRCLIP,15MM
€ 2.00
35
2751141301
ref: 35
SPROCKET,ENGINE
€ 19.00
36
2753105200
ref: 36
SPACER
€ 13.50
37
0928019005
ref: 37
O RING(D:2.4,ID:19)
€ 2.00
38
0914016017
ref: 38
NUT
€ 4.00
39
0916720012
ref: 39
WASHER,LOCK
€ 2.50
40
2760005210
ref: 40
CHAIN ASSEMBLY,DRIVE
€ 46.50
41-1
2762046911
ref: 41-1
JOINT SET,CHAIN
€ 4.50
41-2
2762005220
ref: 41-2
JOINT ASSEMBLY,CHAIN
€ 7.00
