HEADLAMP (E2, E15, E17, E18, E22, E25, E26)
DR125S 1982 (Z)

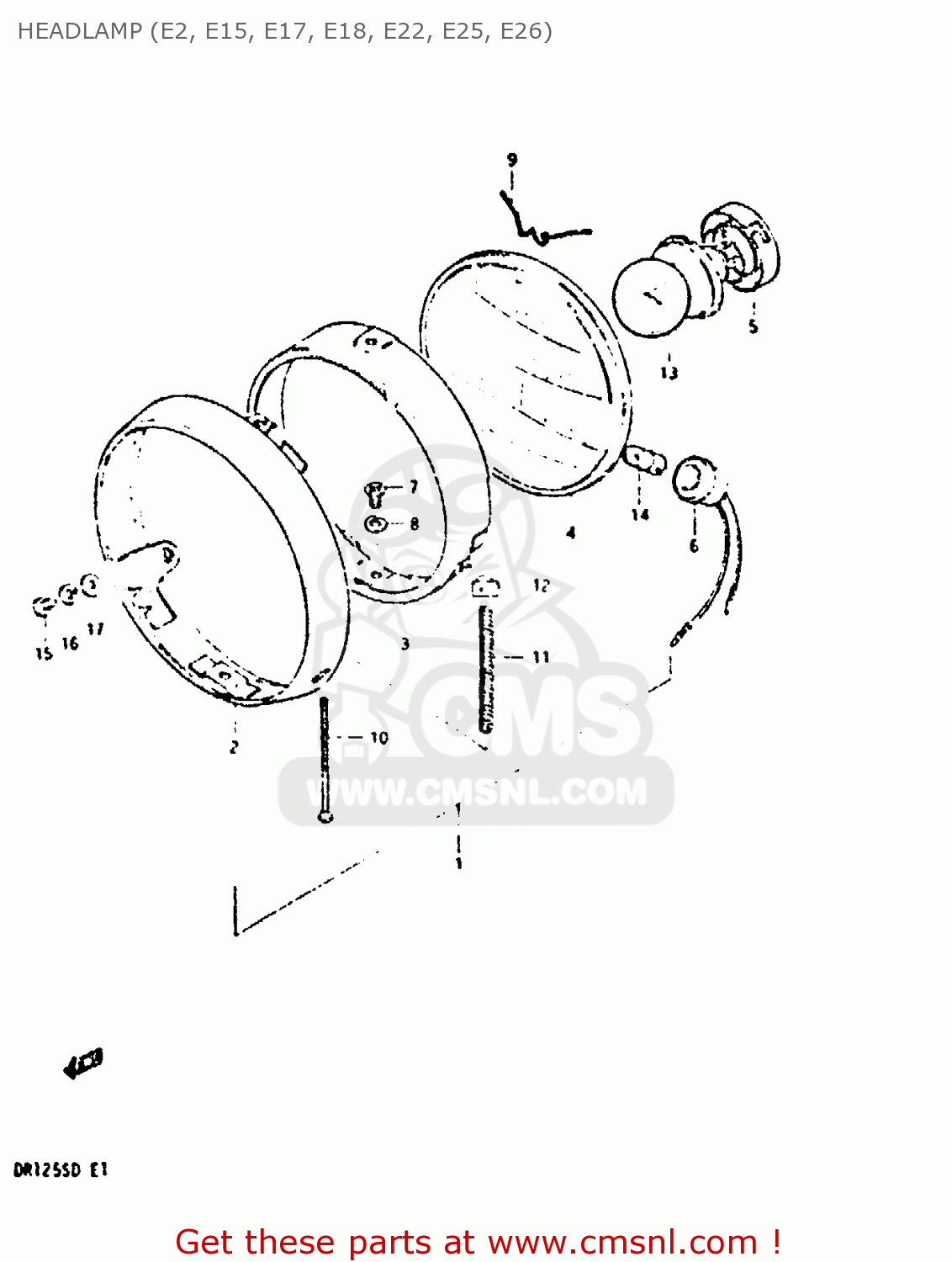

Headlamp (e2, e15, e17, e18, e22, e25, e26) diagram DR125S 1982 (Z)
HEADLAMP (E2, E15, E17, E18, E22, E25, E26) DR125S 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
3510038250999
ref: 1
HEADLAMP ASSY
€ 192.00
2
3511137130
ref: 2
RIM,HEADLAMP
€ 23.00
3
3512729610
ref: 3
RETAINER
€ 15.50
4
3512144260
ref: 4
LAMP UNIT
€ 67.00
5
3513634670
ref: 5
SETTER,BULB
€ 4.00
6
3611830500
ref: 6
SOCKET
€ 10.00
7
3513629610
ref: 7
SCREW
€ 3.00
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
3512846720
ref: 9
SPRING
€ 4.50
10
3515144260
ref: 10
SCREW
€ 4.00
11
3515433630
ref: 11
SPRING
€ 2.50
12
3515215611
ref: 12
NUT
€ 3.50
13
0947112048
ref: 13
EXECUTED LOCALLY
BULB(12V45/40W)
€ 7.50
14
0947112063
ref: 14
EXECUTED LOCALLY
BULB(12V4W)
€ 6.00
15
0211204128
ref: 15
SCREW
€ 1.50
16
0832121048
ref: 16
LOCK WASHER
€ 2.00
17
0832221048
ref: 17
WASHER
€ 2.00
