CYLINDER HEAD
DR125SE 1998 (W) (E04 E18 E22 E34)

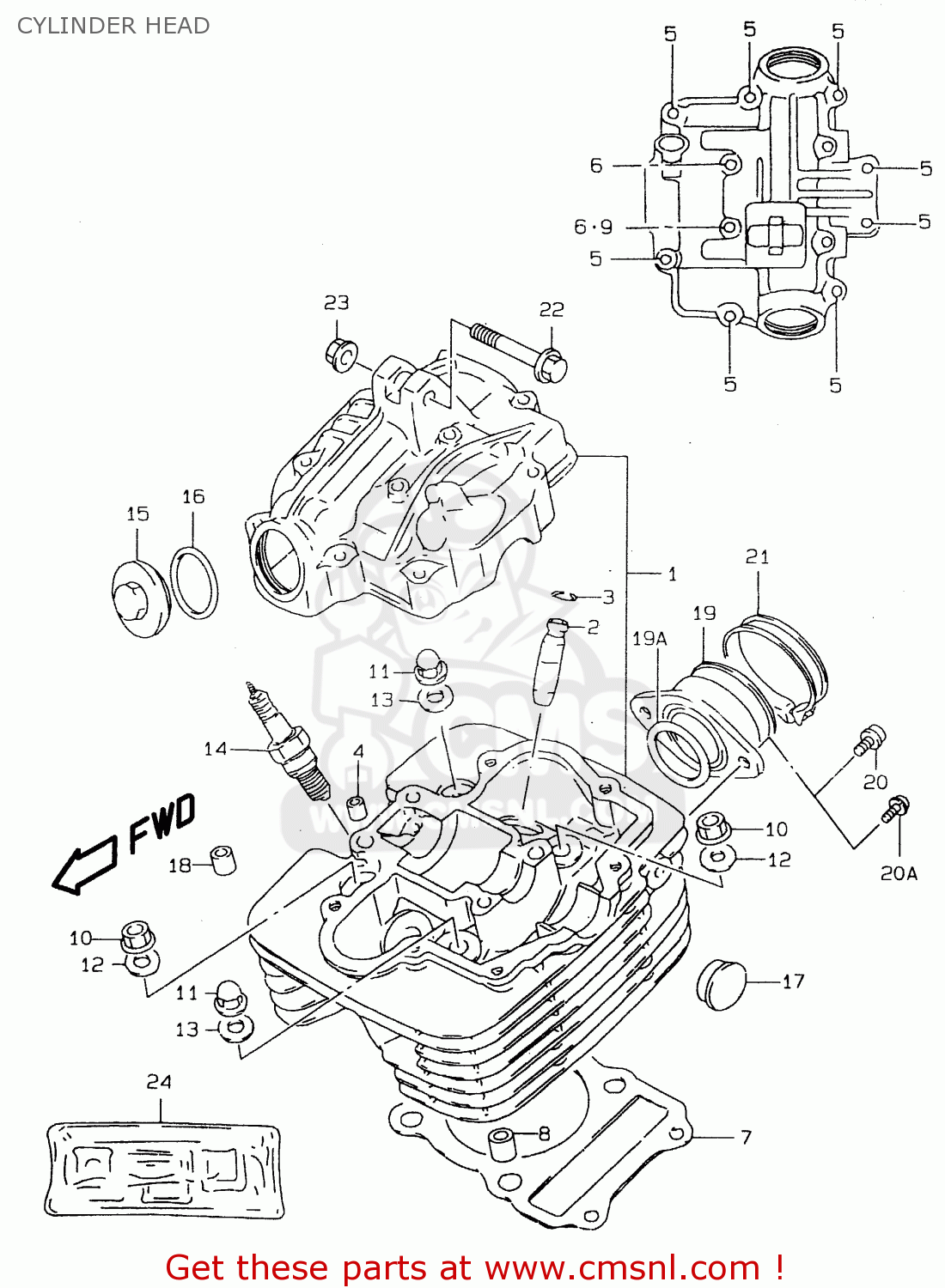

Cylinder head diagram DR125SE 1998 (W) (E04 E18 E22 E34)
CYLINDER HEAD DR125SE 1998 (W) (E04 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1110044A20
ref: 1
HEAD ASSY,CYLINDER
€ 547.00
2
1111505270
ref: 2
GUIDE,VALVE
€ 18.50
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0155006353
ref: 5
BOLT
€ 2.50
6
0155006603
ref: 6
BOLT
€ 2.50
7
1114105201
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 7.50
8
0421111169
ref: 8
PIN
€ 2.00
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
€ 2.00
10
0831610083
ref: 10
NUT
€ 3.00
11
0915908074
ref: 11
MODEL R/S/T/V
NUT
€ 7.00
11
0915908049
ref: 11
MODEL W/X
NUT
€ 7.00
12
0916008053
ref: 12
<-09160-08039
WASHER (8.5X19X2.3)
€ 2.00
13
0916808021
ref: 13
GASKET(8.5X17X2.3) (NAS)
€ 3.00
14
0948200223
ref: 14
PLUG,SPARK(X24ESR-U)
€ 3.50
14
0948200399
ref: 14
PLUG,SPARK(DR8EA)
€ 3.50
15
1117518900
ref: 15
CAP,INSPECTION
€ 14.00
16
0928030001
ref: 16
O RING(D:3,ID:29.5)
€ 2.00
17
0924122002
ref: 17
PLUG(OD:22.5)
€ 5.50
18
1115145000
ref: 18
PAD,CYLINDER HEAD
€ 3.00
19
1311044A20
ref: 19
MODEL R/S
PIPE,INTAKE
€ 27.50
19
1310144A20
ref: 19
MODEL T/V/W/X
PIPE,INTAKE
€ 27.50
19
1310144A50
ref: 19
DR125SEUV/SEUW/SEUX
PIPE ASSY,INTAKE
€ 23.50
19A
1311844A20
ref: 19A
MODEL T/V/W/X, PART
O RING,INTAKE PIPE
€ 4.00
20
0712006163
ref: 20
MODEL R/S
BOLT MAGNETO S
€ 2.50
20
0211236163
ref: 20
MODEL T/V/W/X
SCREW
€ 2.50
20
0913906014
ref: 20
DR125SEUV/SEUW/SEUX
SCREW(6X16)
€ 2.50
21
0940248208
ref: 21
CLAMP
€ 4.50
22
0910308082
ref: 22
BOLT 8X50
€ 7.00
23
0831931083
ref: 23
NUT
€ 2.50
24
1140105883
ref: 24
<-11401-05880
GASKET SET
€ 63.00
