FRAME COVER (MODEL V)

DR125SE 1998 (W) (E04 E18 E22 E34)

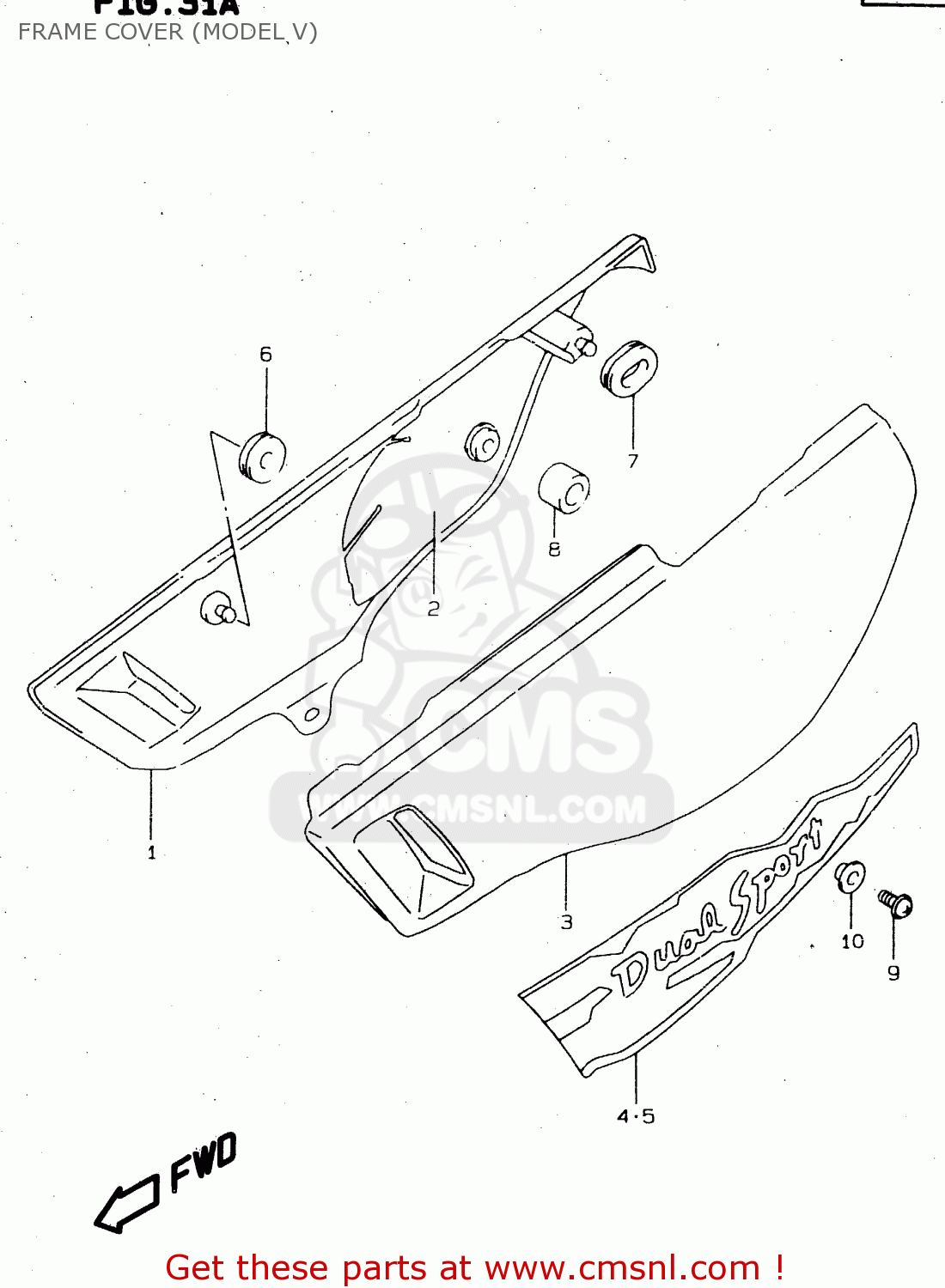

Frame cover (model v) diagram DR125SE 1998 (W) (E04 E18 E22 E34)

FRAME COVER (MODEL V) DR125SE 1998 (W) (E04 E18 E22 E34)

FRAME COVER (MODEL V) DR125SE 1998 (W) (E04 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

4711144AA030H
ref: 1

COVER,FRAME,R(WHITE)

€ 61.50

1

4711144AA0019
ref: 1

COVER, FRAME RH (BLACK)

€ 59.50

2

4716644AA0
ref: 2

SHIELD,FRAME COVER,R

€ 14.50

3

4721144AA030H
ref: 3

COVER,FRAME,L(WHITE)

€ 42.00

3

4721144AA0019
ref: 3

COVER FRAME,L(

€ 40.50

4

6813544A80G3M
ref: 4
FOR E3D

TAPE,FRAME COVER,RIGHT

€ 20.00

4

6813544A80G3N
ref: 4
FOR 019

TAPE, RH

€ 0.00

5

6814544A80G3M
ref: 5
FOR E3D

TAPE,FRAME COVER,LEFT

€ 31.00

5

6814544A80G3N
ref: 5
FOR 019

TAPE, LH

€ 17.00

6

0932008018
ref: 6

CUSHION

€ 4.00

7

0932008029
ref: 7

CUSHION

€ 2.50

8

0932110027
ref: 8

CUSHION

€ 5.50

9

0913606017
ref: 9

SCREW(6X16)

€ 2.50

10

0916906028
ref: 10

WASHER

€ 2.00
