STEERING STEM (MODEL V/W/X)

DR125SE 1998 (W) (E04 E18 E22 E34)

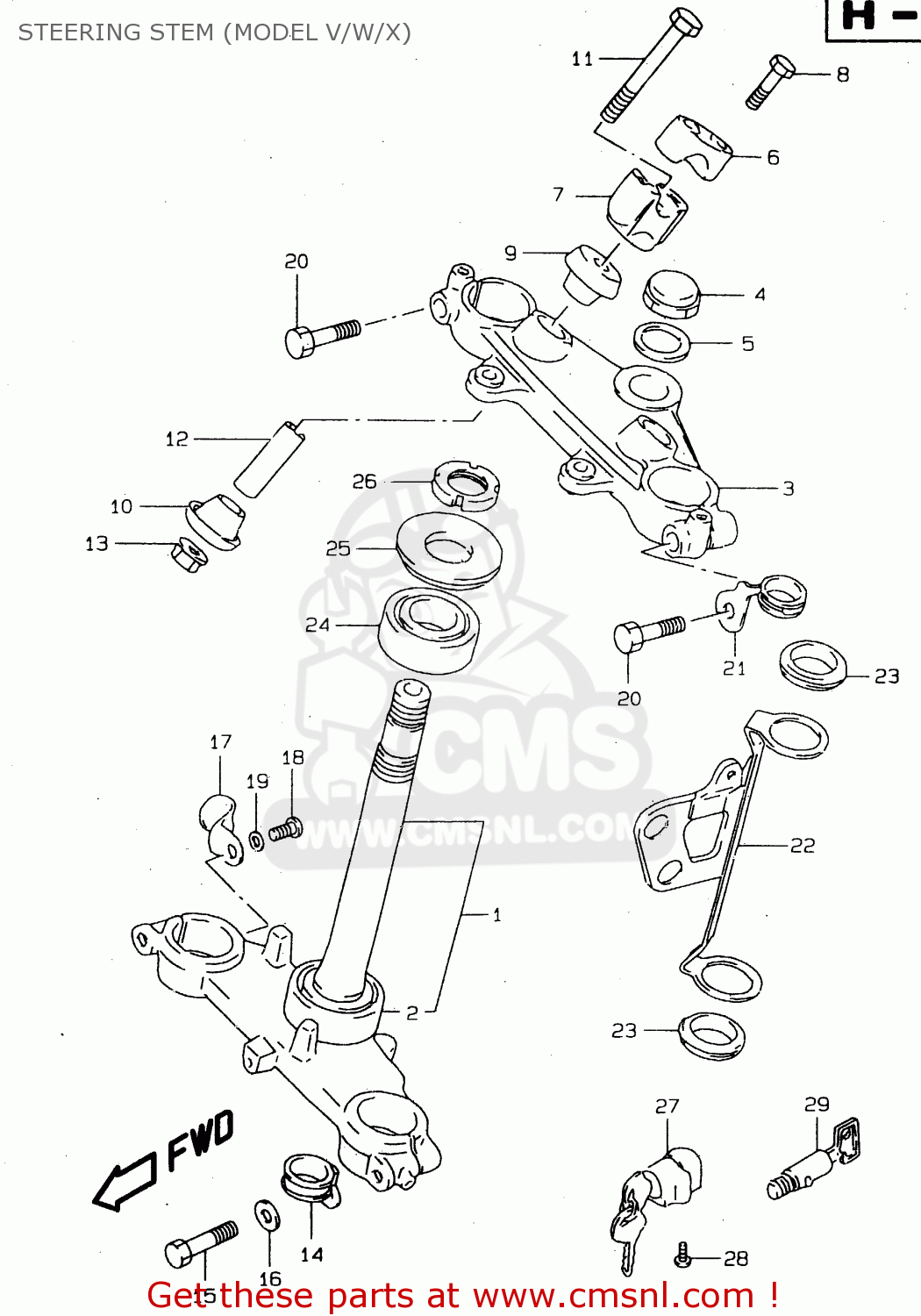

Steering stem (model v/w/x) diagram DR125SE 1998 (W) (E04 E18 E22 E34)

STEERING STEM (MODEL V/W/X) DR125SE 1998 (W) (E04 E18 E22 E34)
STEERING STEM (MODEL V/W/X) DR125SE 1998 (W) (E04 E18 E22 E34)
STEERING STEM (MODEL V/W/X) DR125SE 1998 (W) (E04 E18 E22 E34)
prices are in EUR
ref
part #
description
quantity
1
5141042AB0
ref: 1
STEM,STEERING
5141042AB0
€ 368.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5131144AA0291
ref: 3
HEAD,STEERING STEM
5131144AA0291
€ 168.00
4
5135324B00
ref: 4
NUT,CAP
5135324B00
€ 21.50
5
5135414D00
ref: 5
WASHER
€ 9.00
6
5621127200291
ref: 6
HOLDER,HANDLE UPR
5621127200291
€ 13.50
7
5622142A00291
ref: 7
HOLDER,HANDLEBAR LWR
5622142A00291
€ 24.00
8
0155008353
ref: 8
BOLT
0155008353
€ 3.50
9
5624042A00
ref: 9
RUBBER,HANDLE HOLDER
5624042A00
€ 23.00
10
5624228C60
ref: 10
CUSHION,RUBBER UNDER
5624228C60
€ 22.50
11
5632127E00
ref: 11
BOLT,HANDLE HOLDER(10X70)
5632127E00
€ 6.00
12
5624342A00
ref: 12
SPACER
5624342A00
€ 6.00
13
0831931107
ref: 13
NUT
0831931107
€ 3.00
14
5145242A00
ref: 14
CLIP,LOWER
€ 0.00
15
5145142A00
ref: 15
BOLT,INNER TUBE FITTING
€ 0.00
16
0832101103
ref: 16
WASHER
0832101103
€ 3.00
17
5145205130
ref: 17
CLIP
5145205130
€ 5.50
18
0211206087
ref: 18
SCREW
0211206087
€ 2.00
19
0832101067
ref: 19
WASHER,LOCK
0832101067
€ 2.50
20
0155010403
ref: 20
BOLT
€ 4.00
21
5145248700
ref: 21
CLIP
€ 0.00
22
5153042A00
ref: 22
BRACKET,HEADLAMP,R
€ 51.50
22
5154042A00
ref: 22
BRACKET,HEADLAMP,L
€ 51.50
23
5155334280
ref: 23
CUSHION,HEADLAMP HSG BRACKET
5155334280
€ 3.50
24
0926525019
ref: 24
BEARING(25X47X15)
0926525019
€ 48.50
25
5164301B10
ref: 25
SEAL,STEERING UPR DUST
5164301B10
€ 6.00
26
5163108D30
ref: 26
NUT,STEERING
€ 17.50
27
5190044810
ref: 27
MODEL V E4, E34
LOCK SET,STEERING
€ 72.50
28
0211235123
ref: 28
MODEL V E4, E34
SCREW
0211235123
€ 1.50
29
5190030901
ref: 29
MODEL W/X E4, E18, E
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
29
5190030901
ref: 29
E22, PURCHASE LOCALL
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
