FRAME (MODEL X)
DR125SE 1998 (W) (E04 E18 E22 E34)

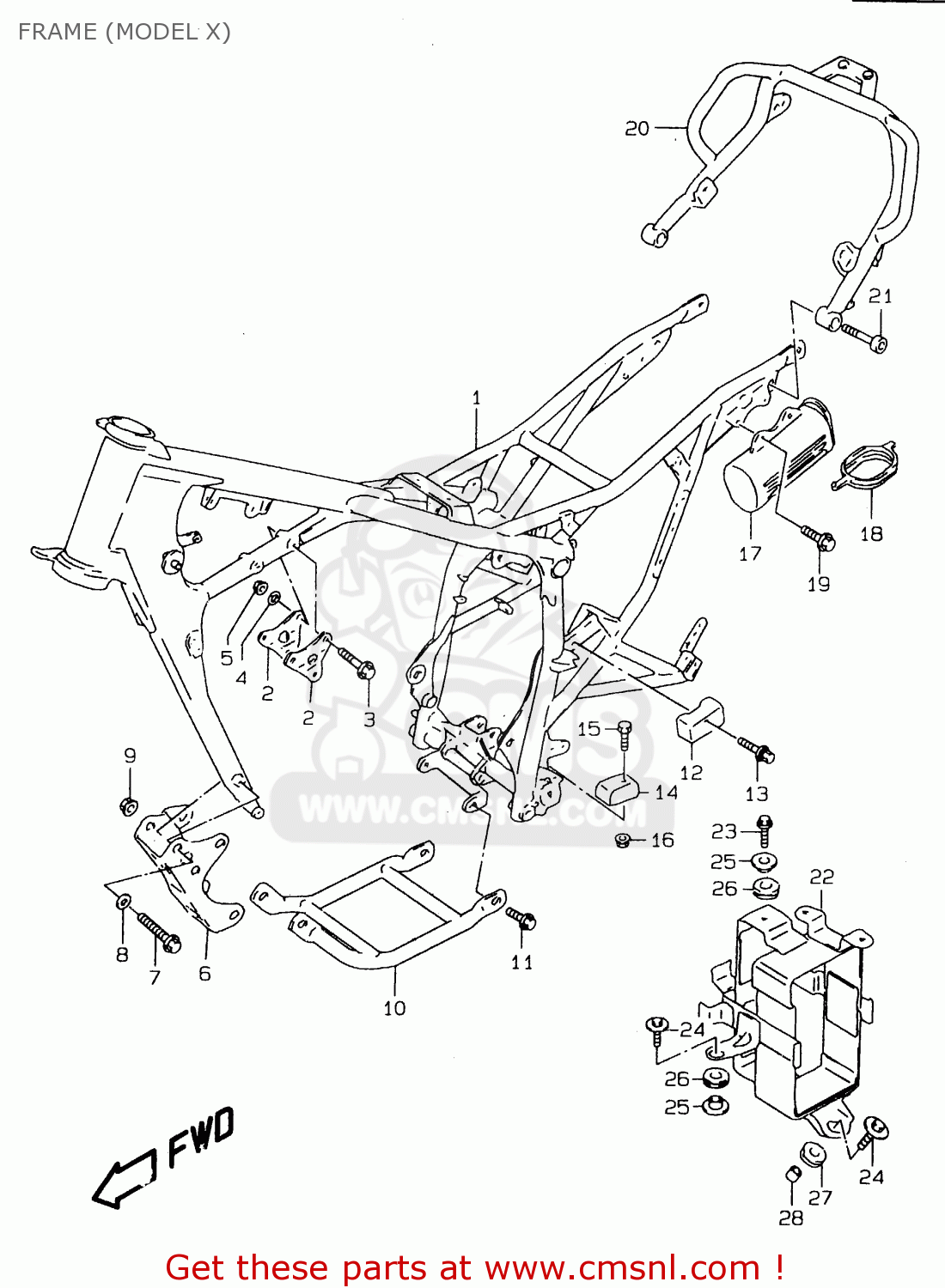

Frame (model x) diagram DR125SE 1998 (W) (E04 E18 E22 E34)
FRAME (MODEL X) DR125SE 1998 (W) (E04 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
4110044AE024K
ref: 1
FRAME(CHARCOAL)
€ 885.50
2
4199144A00291
ref: 2
PLATE,ENGINE MOUNT UPR
€ 10.00
3
0910308332
ref: 3
BOLT(8X53)
€ 3.50
4
0832101083
ref: 4
LOCK WASHER
€ 2.50
5
0831931083
ref: 5
NUT
€ 2.50
6
4199244AA124K
ref: 6
PLATE,ENGINE MOUNT LWR
€ 0.00
7
0910308328
ref: 7
BOLT(8X65)
€ 4.00
8
0832101083
ref: 8
LOCK WASHER
€ 2.50
9
0831931083
ref: 9
NUT
€ 2.50
10
4251044AA024K
ref: 10
PROTECTOR ENGINE(CHARCOAL)
€ 113.00
11
0155010163
ref: 11
BOLT
€ 2.50
12
4391144A00
ref: 12
GUIDE,CH CONTROL UPR
€ 12.00
13
0158006353
ref: 13
BOLT
€ 3.50
14
4391244A00
ref: 14
GUIDE,CH LENGTH CONTROL LWR
€ 14.50
15
0150006203
ref: 15
BOLT
€ 2.00
16
0831931063
ref: 16
NUT
€ 2.50
17
4155138200
ref: 17
HOLDER,TOOL
€ 17.00
18
4155237210
ref: 18
CAP,HOLDER
€ 5.00
19
0911606144
ref: 19
BOLT 6X16
€ 2.50
20
4398044AB21TS
ref: 20
FOR L3E, L9V
GRIP,RR
€ 187.50
20
4398044AB224K
ref: 20
FOR 019
GRIP,RR
€ 189.00
21
0910608105
ref: 21
BOLT(8X30)
€ 3.00
22
4154044AA0
ref: 22
HOLDER,BATTERY
€ 0.00
23
0155006203
ref: 23
BOLT
€ 2.50
24
0911606047
ref: 24
BOLT(6X25)
€ 2.00
25
0916906065
ref: 25
WASHER
€ 3.50
26
0932008021
ref: 26
CUSHION
€ 4.00
27
0932010501
ref: 27
CUSHION
€ 5.50
28
0918006285
ref: 28
SPACER(6.5X10X9)
€ 2.50
