FRONT CALIPER
DR125SE 2000 (Y)

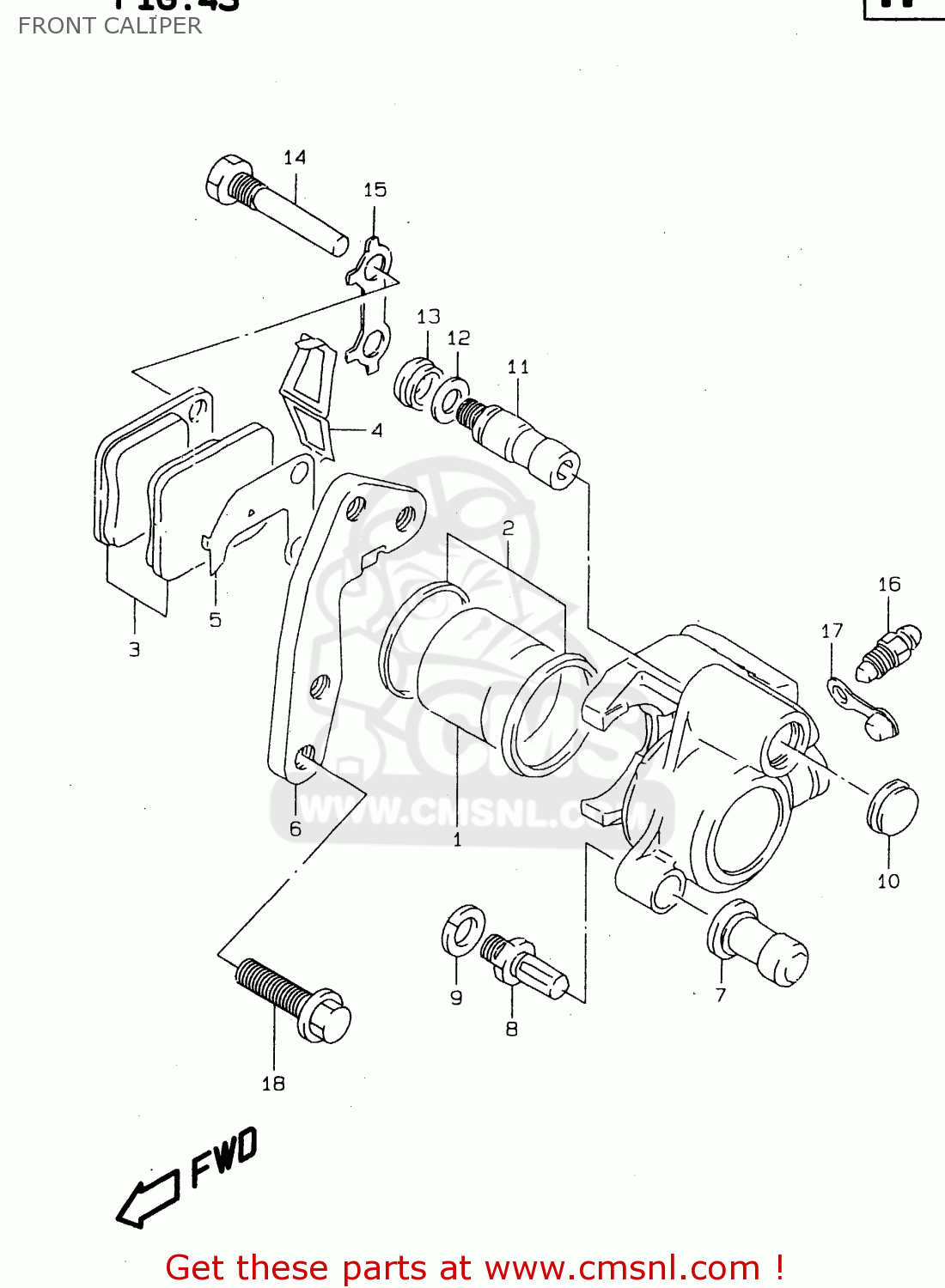

Front caliper diagram DR125SE 2000 (Y)
FRONT CALIPER DR125SE 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
0
5930042A10
ref: 0
CALIPER ASSEMBLY,FRONT,LEFT
€ 324.00
1
5930013810
ref: 1
PISTON SET,CALIPERS
€ 40.00
2
5930013840
ref: 2
SEAL SET,PISTON
€ 11.00
3
5930042810
ref: 3
PAD SET (NAS)
€ 59.00
4
5931513A00
ref: 4
SPRING,PAD
€ 4.50
5
5937113A00
ref: 5
SHIM
€ 5.00
6
5935113A01
ref: 6
BRACKET
€ 29.50
7
5938613A00
ref: 7
BOOT
€ 6.50
8
5938213A00
ref: 8
BOLT,PIN
€ 6.50
9
5931413A00
ref: 9
WASHER,WAVE
€ 2.00
10
5938413A00
ref: 10
DUST SEAL
€ 5.00
11
5930513A01
ref: 11
PIN,SLIDE
€ 10.50
12
5930613A00
ref: 12
SPRING,FRICTION
€ 2.50
13
5930313A00
ref: 13
BOOT,PIN
€ 5.00
14
5934513A00
ref: 14
PIN,HANGER
€ 6.00
15
5934613A00
ref: 15
WASHER
€ 2.50
16
5912101A00
ref: 16
BLEEDER
€ 8.50
17
5912201A00
ref: 17
CAP,BLEEDER
€ 4.50
18
0910308269
ref: 18
BOLT(8X30)
€ 2.50
