STAND (MODEL V/W/X)
DR125SE 2000 (Y)

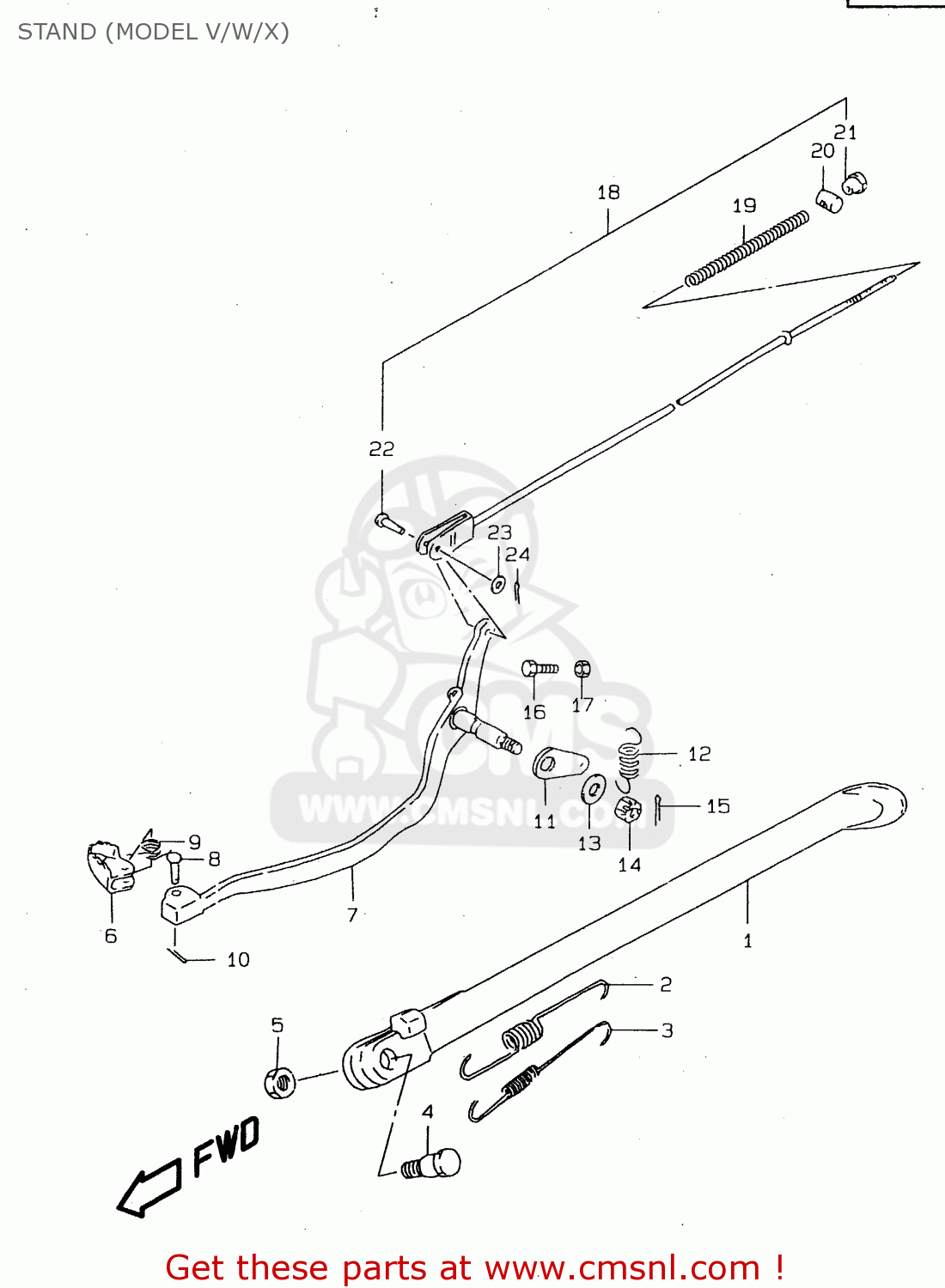

Stand (model v/w/x) diagram DR125SE 2000 (Y)
STAND (MODEL V/W/X) DR125SE 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
4231044A32019
ref: 1
STAND COMP,PROP
€ 48.00
2
0944320003
ref: 2
SPRING
€ 9.00
3
0944312035
ref: 3
SPRING
€ 6.00
4
0911110019
ref: 4
BOLT L:30
€ 4.50
5
0915910097
ref: 5
NUT
€ 5.00
6
4311014130
ref: 6
PEDAL,BRAKE
€ 6.00
7
4312044A12
ref: 7
ARM,BRAKE PEDAL
€ 34.00
8
0920006038
ref: 8
PIN
€ 2.00
9
0944411005
ref: 9
SPRING
€ 3.00
10
0411120158
ref: 10
PIN
€ 1.50
11
4312838200
ref: 11
ARM,BRAKE RETURN SPRING
€ 3.50
12
0944314002
ref: 12
SPRING
€ 2.50
13
0821108202
ref: 13
WASHER
€ 1.50
14
0831440083
ref: 14
NUT
€ 2.50
15
0411120208
ref: 15
PIN 20X20
€ 1.50
16
0910006009
ref: 16
BOLT(6X23)
€ 1.50
17
0831000063
ref: 17
NUT 6MM
€ 2.00
18
4330044A03
ref: 18
ROD ASSY,RR BRAKE
€ 20.00
19
0944009004
ref: 19
SPRING
€ 2.00
20
0920913018
ref: 20
PIN(13X18)
€ 3.50
21
0915006014
ref: 21
NUT
€ 3.50
22
0920006013
ref: 22
PIN(L:13.5)
€ 2.00
23
0832201063
ref: 23
WASHER
€ 2.00
24
0411120208
ref: 24
PIN 20X20
€ 1.50
