KNUCKLE COVER (OPTION)(MODEL X)
DR125SE 2000 (Y)

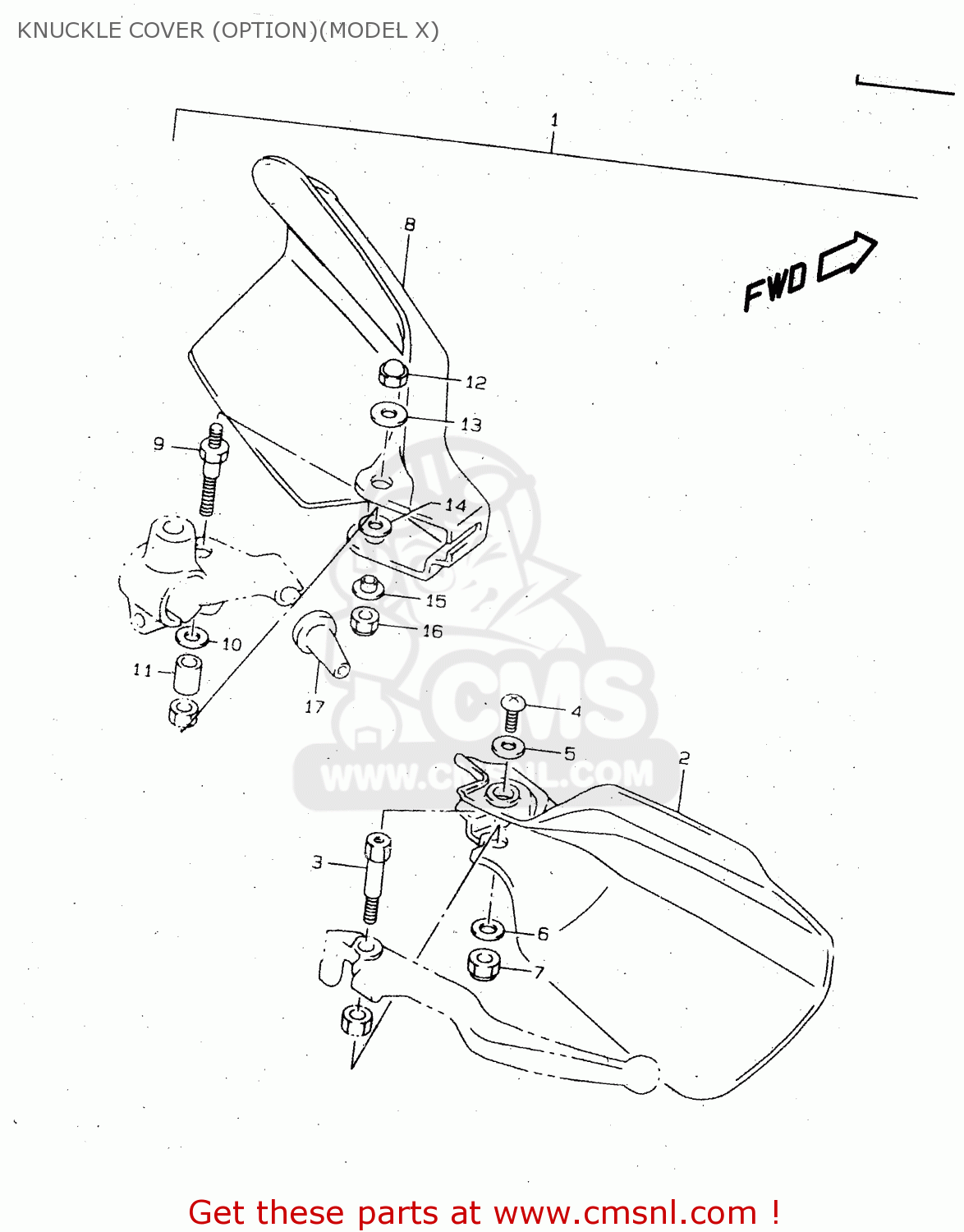

Knuckle cover (option)(model x) diagram DR125SE 2000 (Y)
KNUCKLE COVER (OPTION)(MODEL X) DR125SE 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
5730005810019
ref: 1
FOR 019
COVER SET, KNUCKLE (BLACK)
€ 62.00
1
573000581030H
ref: 1
FOR L3E, L9V
COVER SET,KNUCKLE
€ 69.00
2
5734105D00019
ref: 2
FOR 019
COVER,KNUCKLE,RIGHT
€ 21.00
2
5734105D0030H
ref: 2
FOR L3E, L9V
COVER,KNUCKLE,RIGHT
€ 18.00
3
5743105D00
ref: 3
BOLT,BRAKE LEVER PIVOT
€ 9.00
4
0214205107
ref: 4
SCREW
€ 2.50
5
0916005043
ref: 5
WASHER(5.5X16X1.2)
€ 2.50
6
0916006130
ref: 6
WASHER(6.5X16X1.6)
€ 2.00
7
0831921068
ref: 7
NUT 6MM
€ 2.00
8
5754131D00019
ref: 8
FOR 019
COVER,KNUCKLE,LEFT
€ 21.50
8
5754131D0030H
ref: 8
FOR L3E, L9V
COVER,KNUCKLE,LEFT
€ 14.50
9
5753144B01
ref: 9
BOLT,CLUTCH LEVER PIVOT
€ 6.50
10
5753344B00
ref: 10
WASHER,LEVER SET
€ 2.50
11
5753244B00
ref: 11
SPACER,LEVER SET
€ 3.50
12
0831310067
ref: 12
NUT
€ 2.00
13
0916006066
ref: 13
WASHER(6.5X20X1.6)
€ 2.00
14
0916006019
ref: 14
WASHER(6.5X16X1.2)
€ 1.50
15
0916906055
ref: 15
WASHER
€ 2.00
16
0831921068
ref: 16
NUT 6MM
€ 2.00
17
5827331000
ref: 17
BOOT,CLUTCH CABLE
€ 2.50
