STAND (MODEL R/S/T)
DR125SE 2000 (Y)

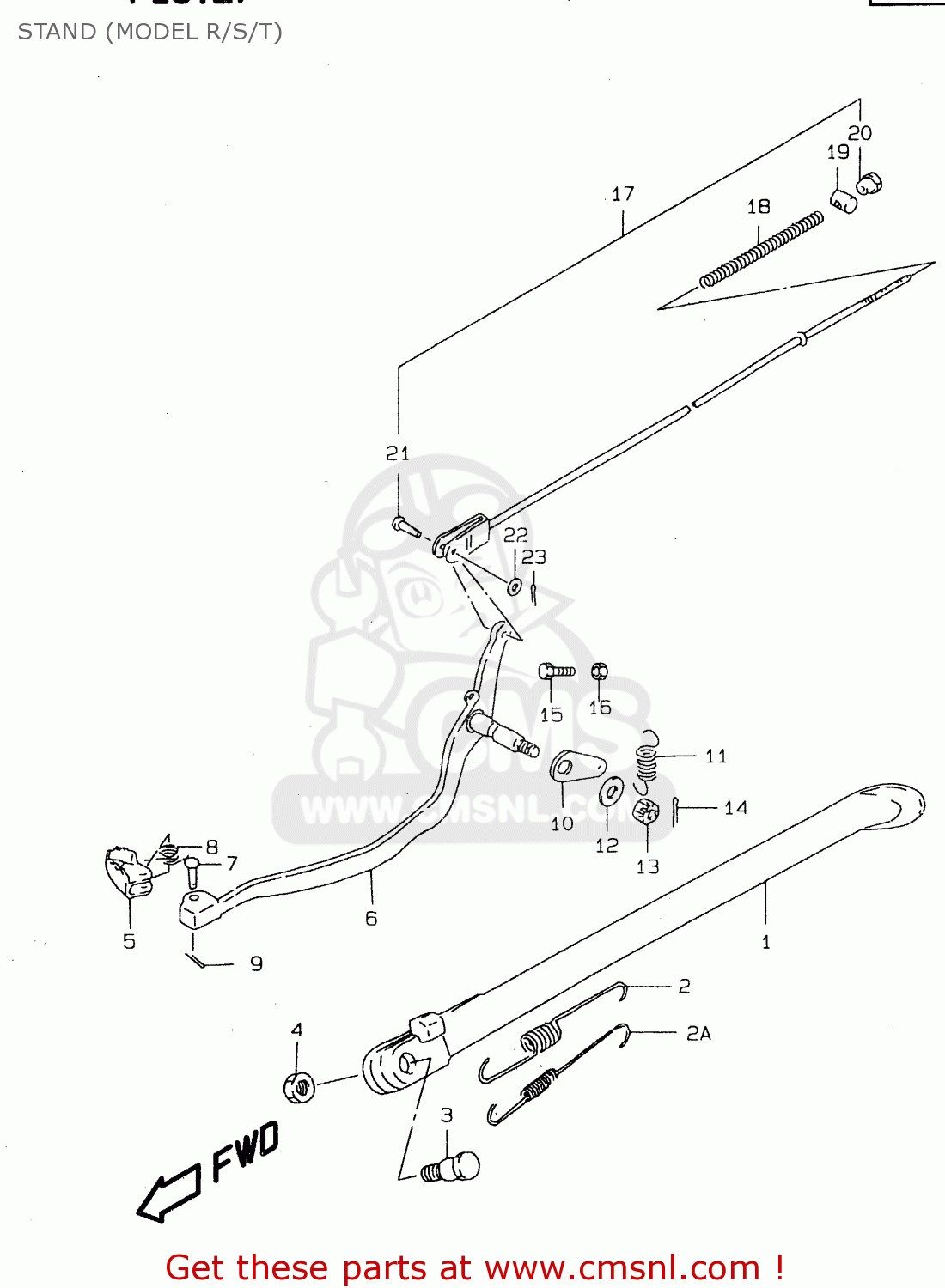

Stand (model r/s/t) diagram DR125SE 2000 (Y)
STAND (MODEL R/S/T) DR125SE 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
4231044A00019
ref: 1
STAND,PROP
€ 206.00
1
4231044A20019
ref: 1
MODEL S E22
STAND, PROP (BLACK)
€ 27.50
1
4231044A32019
ref: 1
MODEL T E22
STAND COMP,PROP
€ 48.00
2
0944317007
ref: 2
SPRING
€ 4.50
2
0944320003
ref: 2
E22
SPRING
€ 9.00
2A
0944312035
ref: 2A
E22
SPRING
€ 6.00
3
0911110038
ref: 3
MODEL R
BOLT L:30
€ 4.50
3
0911110019
ref: 3
MODEL S/T
BOLT L:30
€ 4.50
4
0915910097
ref: 4
NUT
€ 5.00
5
4311014130
ref: 5
PEDAL,BRAKE
€ 6.00
6
4312044A11
ref: 6
ARM,BRAKE PEDAL
€ 34.00
7
0920006038
ref: 7
PIN
€ 2.00
8
0944411005
ref: 8
SPRING
€ 3.00
9
0411120158
ref: 9
PIN
€ 1.50
10
4312838200
ref: 10
ARM,BRAKE RETURN SPRING
€ 3.50
11
0944314002
ref: 11
SPRING
€ 2.50
12
0821108202
ref: 12
WASHER
€ 1.50
13
0831440083
ref: 13
NUT
€ 2.50
14
0411120208
ref: 14
PIN 20X20
€ 1.50
15
0910006009
ref: 15
BOLT(6X23)
€ 1.50
16
0831000063
ref: 16
NUT 6MM
€ 2.00
17
4330044A03
ref: 17
ROD ASSY,RR BRAKE
€ 20.00
18
0944009004
ref: 18
SPRING
€ 2.00
19
0920913005
ref: 19
PIN
€ 3.50
20
0915006009
ref: 20
NUT (6MM)
€ 3.50
21
0920006013
ref: 21
PIN(L:13.5)
€ 2.00
22
0832201063
ref: 22
WASHER
€ 2.00
23
0411120208
ref: 23
PIN 20X20
€ 1.50
