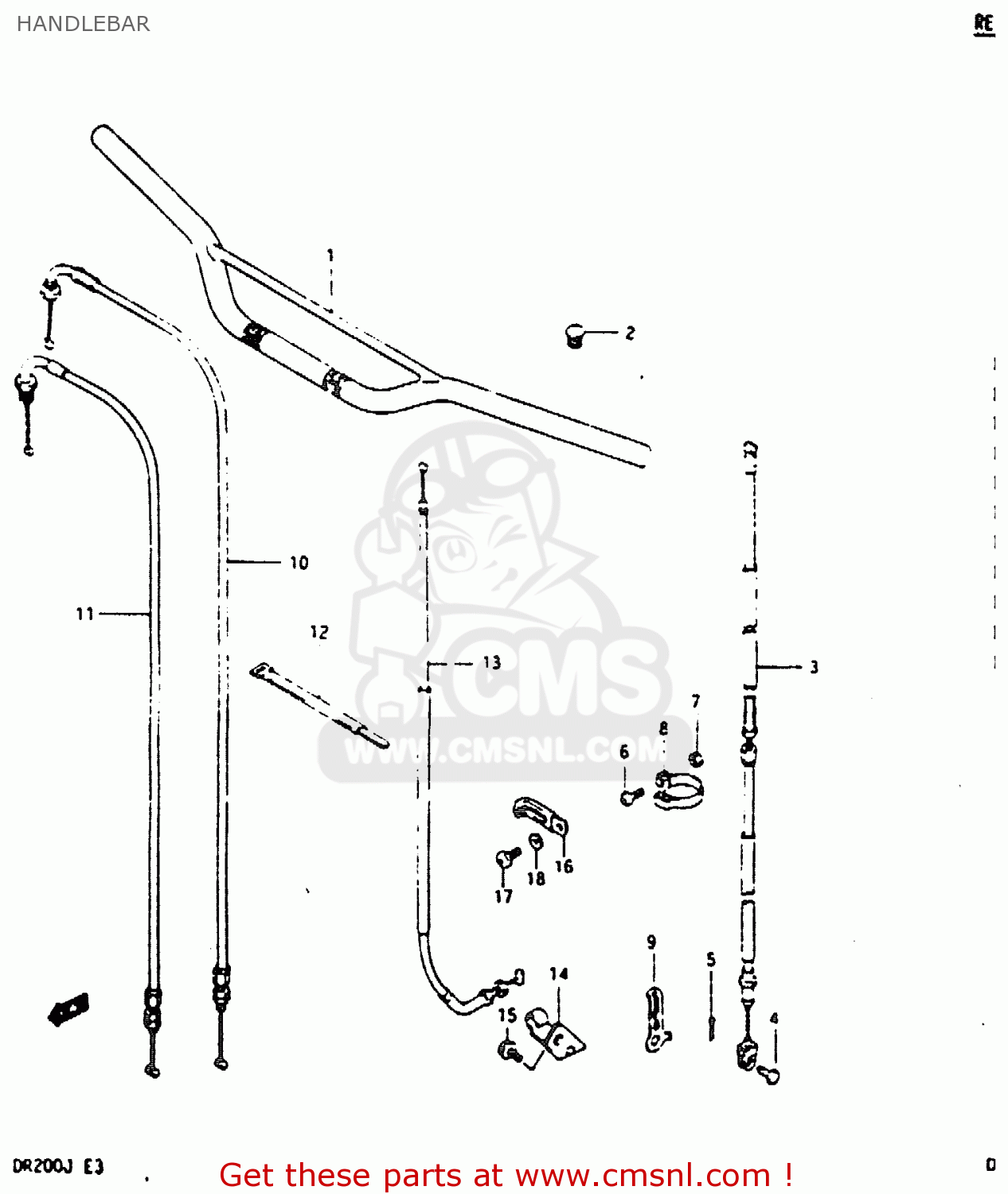

HANDLEBAR

ref

part #

description

quantity

1-1

5611001A2019T
ref: 1-1
MODEL G

HANDLEBAR

€ 75.50

1-2

5611001A20291
ref: 1-2
MODEL H/J

HANDLEBAR

€ 75.50

2

0925009001
ref: 2

CAP(OD:14)

€ 1.00

3

5820042A10
ref: 3

CABLE ASSY,CLUTCH

€ 24.00

4

0920006011
ref: 4

PIN(L:15)

€ 2.50

5

0411120158
ref: 5

PIN

€ 1.50

6

0211205165
ref: 6

SCREW

€ 2.00

7

0831022055
ref: 7

NUT 5MM

€ 2.00

8

5828505350
ref: 8

CLAMP,CABLE

€ 4.00

9

5828505201
ref: 9

CLAMP,CABLE

€ 1.50

10-1

5830042A10
ref: 10-1
MODEL G

CABLE ASSEMBLY,THROTTLE

€ 25.00

10-2

5830042A11
ref: 10-2
MODEL H/J

CABLE ASSY,THROTTLE NO.1

€ 25.00

11-1

5830042A20
ref: 11-1
MODEL G

CABLE ASSEMBLY,THROTTLE

€ 25.00

11-2

5830042A21
ref: 11-2
MODEL H/J

CABLE ASSY,THROTTLE NO.2

€ 25.00

12

0940718301
ref: 12
MODEL G/H

CLAMP

€ 6.00

13

5890042A00
ref: 13

CABLE ASSY,DECOMP

€ 27.00

14

5894142A00
ref: 14

BRACKET,DECOMP CABLE

€ 0.00

15

0151706125
ref: 15

BOLT 6X12

€ 2.50

16

0940406201
ref: 16

CLAMP

€ 2.50

17

0211206128
ref: 17

SCREW 6X12

€ 2.00

18

0832121067
ref: 18

WASHER,LOCK

€ 2.50
