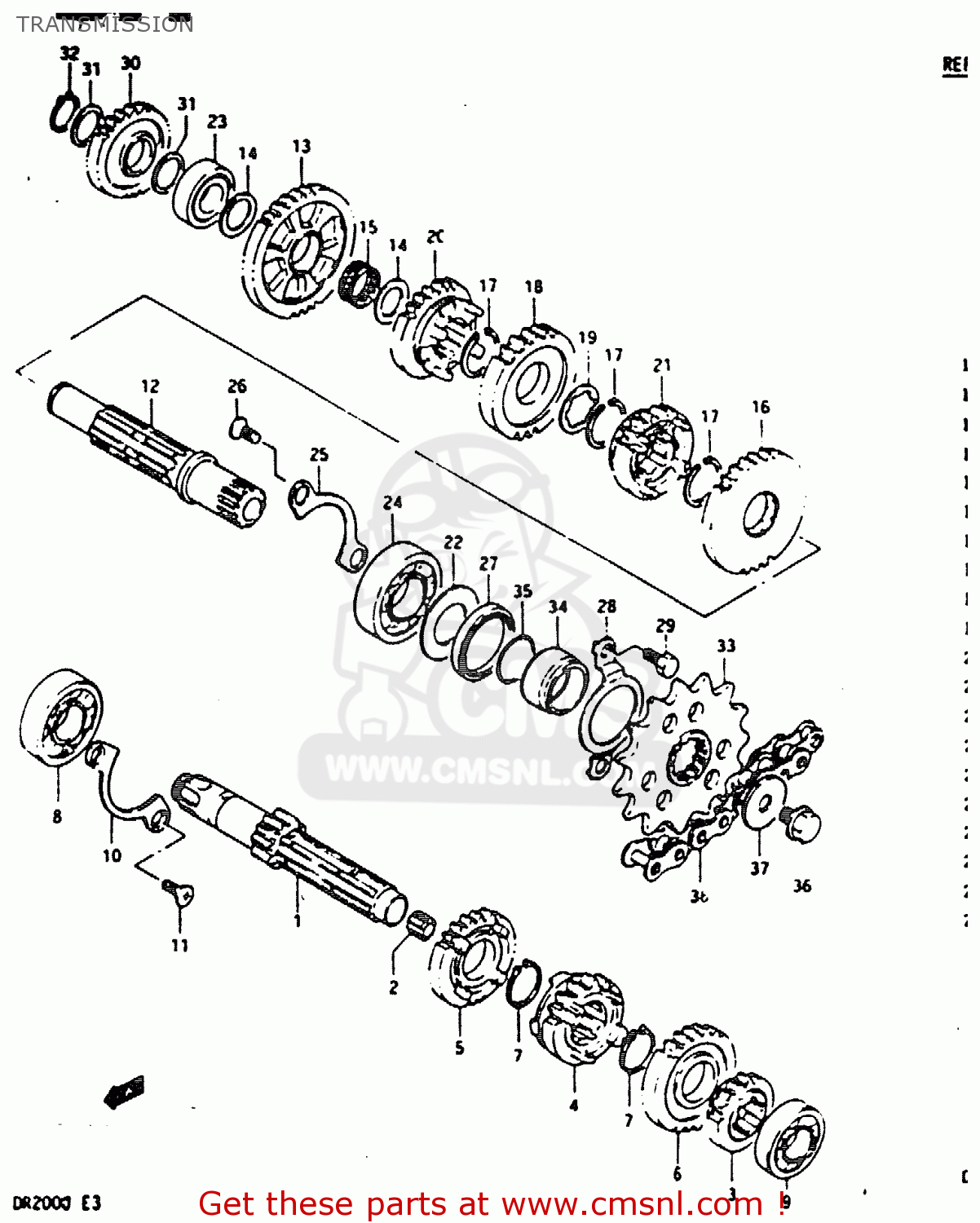

TRANSMISSION

ref

part #

description

quantity

1

2412042A00
ref: 1

SHAFT,COUNTER (NT:11)

€ 246.50

2

2412538201
ref: 2

BUSH

€ 3.50

3

2422142A02
ref: 3

GEAR,2ND DRIVE

€ 56.00

4

2423142A02
ref: 4

GEAR,THIRD DRIVE (NT:16)

€ 66.00

5

2424142A00
ref: 5

GEAR,4TH DRIVE

€ 51.50

6

2425142A03
ref: 6

GEAR,FIFTH DRIVE

€ 57.50

7

0938020009
ref: 7

CIRCLIP

€ 2.00

8

0926220062
ref: 8

BEARING

€ 28.00

9

0812360020
ref: 9

BEARING, LH

€ 16.00

10

2474105200
ref: 10

RETAINER,DRIVE SHAFT BEARING

€ 3.50

11

0212206128
ref: 11

SCREW

€ 3.00

12

2413042A00
ref: 12

SHAFT COMP,DRIVE

€ 102.50

13

2431142A00
ref: 13

GEAR,1ST DRIVEN

€ 59.50

14

0821117261
ref: 14

WASHER,THRUST

€ 3.00

15

0926317004
ref: 15

BEARING(17X21X9.8)

€ 7.00

16

2432042A02
ref: 16

GEAR,SECOND DRIVEN (NT:29)

€ 49.00

17

0938022006
ref: 17

CIRCLIP

€ 3.00

18

2433142A01
ref: 18

GEAR,THIRD DRIVEN (NT:23)

€ 50.50

19

0916722011
ref: 19

WASHER,LOCK

€ 3.00

20

2434142A01
ref: 20

GEAR,FOURTH DRIVEN (NT:23)

€ 73.50

21

2435142A02
ref: 21

GEAR,5TH DRIVEN

€ 49.00

22

2435942A00
ref: 22

WASHER,OIL SEALING

€ 3.00

23

0926417001
ref: 23

BEARING(17X36X12)

€ 27.00

24

0926222018
ref: 24

BEARING(22X50X14)

€ 17.50

25

2474105200
ref: 25

RETAINER,DRIVE SHAFT BEARING

€ 3.50

26

0212206128
ref: 26

SCREW

€ 3.00

27

0928330053
ref: 27

SEAL,OIL(30X40X6)

€ 8.00

28

2475142A01
ref: 28

RETAINER,DRIVESHAFT O

€ 2.50

29

0110706106
ref: 29

BOLT

€ 2.00

30

2626042A01
ref: 30

GEAR,KICK STARTER IDLE

€ 35.50

31

0821117221
ref: 31

WASHER

€ 0.00

32

0833131178
ref: 32

CIRCLIP

€ 2.00

33

2751142A00
ref: 33

SPROCKET,ENGINE

€ 26.00

34

2753142A00
ref: 34

SPACER,ENGINE SPROCKET

€ 12.00

35

0928021008
ref: 35

O RING(D:2.5,ID:21)

€ 2.00

36

0151708125
ref: 36

BOLT

€ 3.50

37

0821108283
ref: 37

WASHER

€ 2.50

38

2760042A11112
ref: 38

CHAIN ASSEMBLY,DRIVE

€ 110.50
