TRIP METER

DR200 1988 (J)

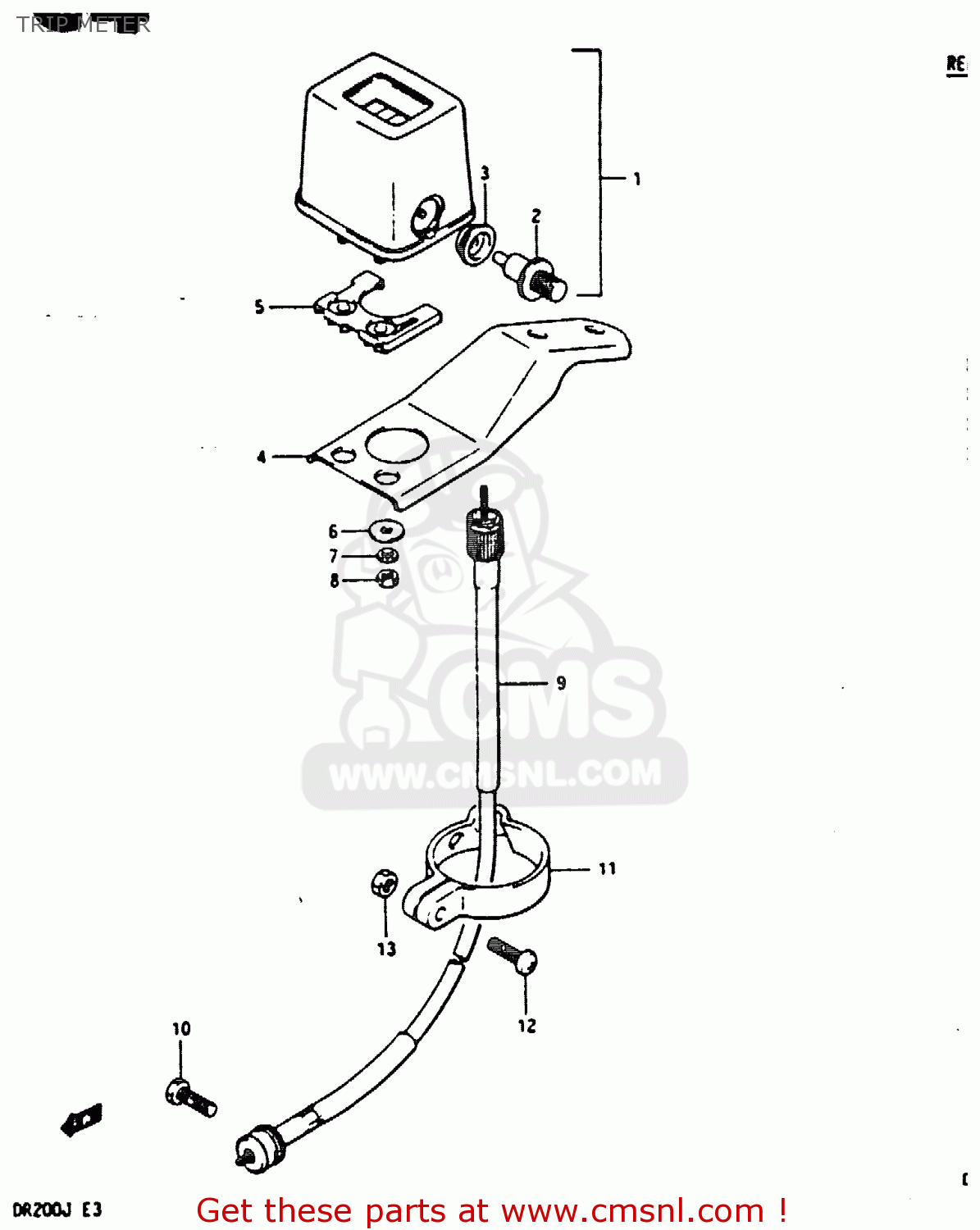

Trip meter diagram DR200 1988 (J)

TRIP METER DR200 1988 (J)

TRIP METER DR200 1988 (J)

prices are in EUR

ref

part #

description

quantity

1

3472140610
ref: 1

TRIP METER

€ 136.50

2

3412440610
ref: 2

KNOB,TRIP METER

€ 6.00

3

3412641410
ref: 3

COVER,TRIPMETER KNOB

€ 2.00

4

3472544A10
ref: 4

BRACKET,TRIPMETER

€ 27.00

5

3472641410
ref: 5

CUSHION,TRIPMETER

€ 4.00

6

3472741410
ref: 6

WASHER,METER

€ 1.50

7

0832121048
ref: 7

LOCK WASHER

€ 2.00

8

0831011047
ref: 8

NUT

€ 2.00

9

3491042A10
ref: 9

CABLE ASSEMBLY,SPEEDOMETER

€ 65.50

10

0110705167
ref: 10

BOLT

€ 1.50

11

3493801A00
ref: 11

CLAMP,SPEEDOMETER CABLE

€ 7.50

12

0211205165
ref: 12

SCREW

€ 2.00

13

0831012055
ref: 13

NUT ,5MM

€ 2.50
