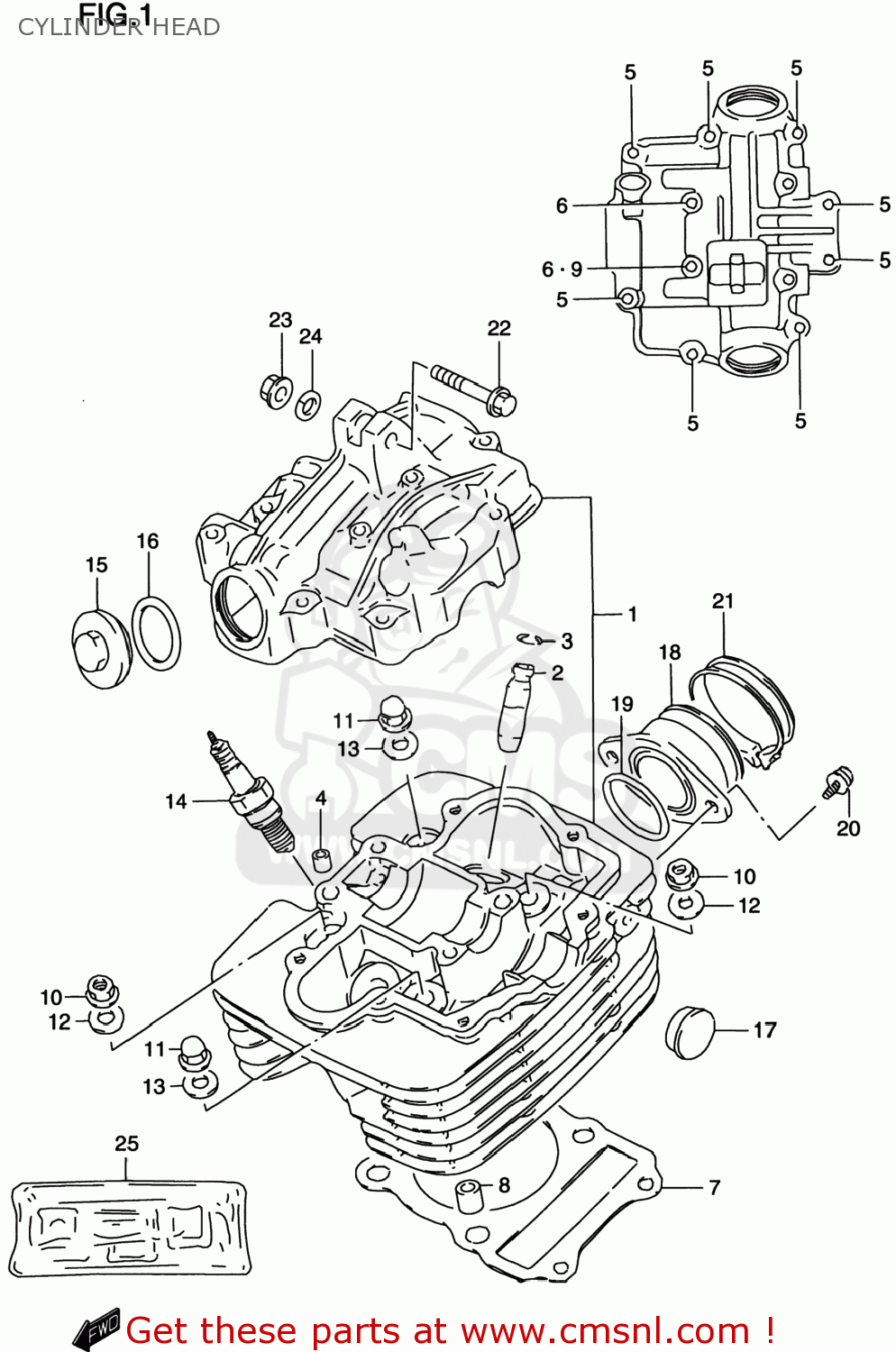

CYLINDER HEAD

ref

part #

description

quantity

1

1110042A20
ref: 1

HEAD ASSY,CYLINDER

€ 617.00

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0155006353
ref: 5
01550-0635A

BOLT

€ 2.50

6

0155006603
ref: 6
01550-0660A

BOLT

€ 2.50

7

1114118A00
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 8.00

8

0421111169
ref: 8

PIN

€ 2.00

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

0831610083
ref: 10
08316-1008B

NUT

€ 3.00

11-1

0915908074
ref: 11-1

NUT

€ 7.00

11-2

0915908049
ref: 11-2

NUT

€ 7.00

12-1

0916008039
ref: 12-1

WASHER(8.5X19X2.3)

€ 2.00

12-2

0916008053
ref: 12-2
09160-08039

WASHER (8.5X19X2.3)

€ 2.00

13

0916808021
ref: 13

GASKET(8.5X17X2.3) (NAS)

€ 3.00

14-1

0948200223
ref: 14-1

PLUG,SPARK(X24ESR-U)

€ 3.50

14-2

0948200399
ref: 14-2

PLUG,SPARK(DR8EA)

€ 3.50

15-1

1117537111
ref: 15-1

CAP,INSPECTION HOLE

€ 14.00

15-2

1117518900
ref: 15-2
11175-37111

CAP,INSPECTION

€ 14.00

16

0928030001
ref: 16

O RING(D:3,ID:29.5)

€ 2.00

17

0924122002
ref: 17

PLUG(OD:22.5)

€ 5.50

18-1

1311042A11
ref: 18-1
13110-42A12

PIPE,INTAKE

€ 18.50

18-2

1311042A12
ref: 18-2

PIPE,INTAKE

€ 18.50

19

0928035001
ref: 19

O RING(D:1.9,ID:34.6)

€ 1.00

20

0211236163
ref: 20
02112-3616A

SCREW

€ 2.50

21

0940248208
ref: 21

CLAMP

€ 4.50

22

0910308332
ref: 22

BOLT(8X53)

€ 3.50

23

0831931083
ref: 23
08319-3108A

NUT

€ 2.50

24

0832101083
ref: 24
08321-0108A

LOCK WASHER

€ 2.50

25-1

1140042823
ref: 25-1
11400-42825

GASKET SET (NAS)

€ 74.50

25-2

1140042824
ref: 25-2
11400-42825

GASKET SET (NAS)

€ 74.50
