MAGNETO

DR200SE 1998 (W) USA (E03)

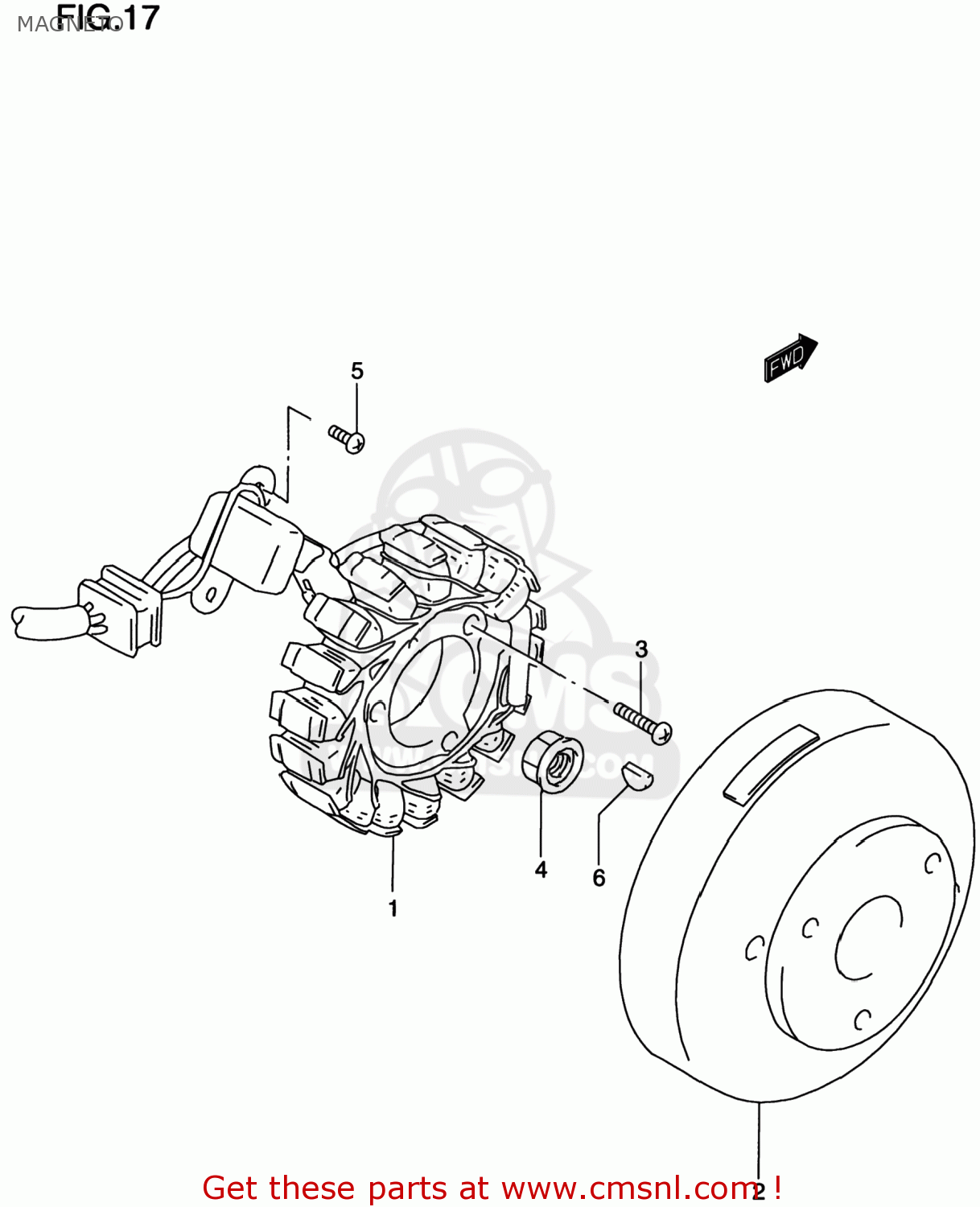

Magneto diagram DR200SE 1998 (W) USA (E03)

MAGNETO DR200SE 1998 (W) USA (E03)

MAGNETO DR200SE 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210142A30
ref: 1
32101-42A40

STATOR ASSEMBLY

€ 458.50

2

3210242A30
ref: 2

ROTOR ASSY

€ 0.00

3

0211205253
ref: 3
02112-0525A

SCREW

€ 1.50

4

0831610103
ref: 4
08316-1010B

NUT

€ 2.00

5

0211205123
ref: 5
02112-0512A

SCREW

€ 1.50

6

0942003008
ref: 6

KEY

€ 2.50
