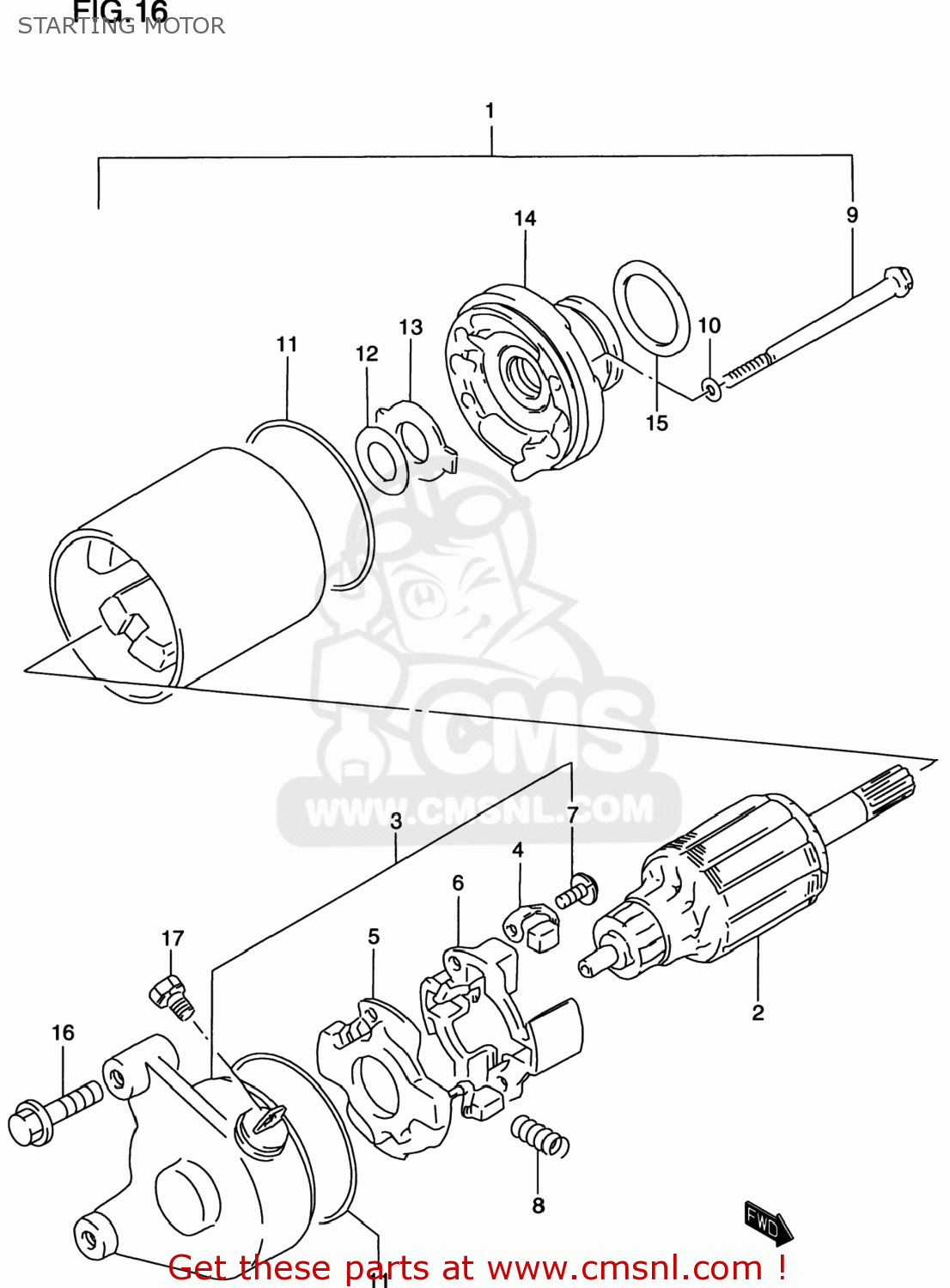

STARTING MOTOR

ref

part #

description

quantity

1

3110042A01
ref: 1
31100-42A20

MOTOR ASSEMBLY,STARTING

€ 526.50

2

3131011D00
ref: 2

ARMATURE

€ 265.50

3

3117542A01
ref: 3

FRAME ASSY,COMMUTATOR END

€ 66.50

4

3113232C10
ref: 4

BRUSH

€ 14.50

5

3113032C20
ref: 5

BRUSH SUB ASSY,STARTER

€ 28.00

6

3113332C10
ref: 6

HOLDER,BRUSH

€ 9.00

7

0211234123
ref: 7
02112-3412B

SCREW

€ 2.00

8

3113532C10
ref: 8

SPRING

€ 3.50

9

3128132C10
ref: 9

BOLT

€ 8.50

10

3115638300
ref: 10

O RING

€ 3.00

11

3126432C10
ref: 11

O RING

€ 9.00

12

3136138300
ref: 12

SHIM

€ 1.50

13

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

14

3115042A01
ref: 14

BRACKET

€ 0.00

15

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

16

0154706303
ref: 16
01547-0630B

BOLT,G/S SWITC

€ 3.00

17

0913705004
ref: 17

SCREW(5X8)

€ 2.00

all assemblies
