TRANSMISSION
DR200SE 1998 (W) USA (E03)

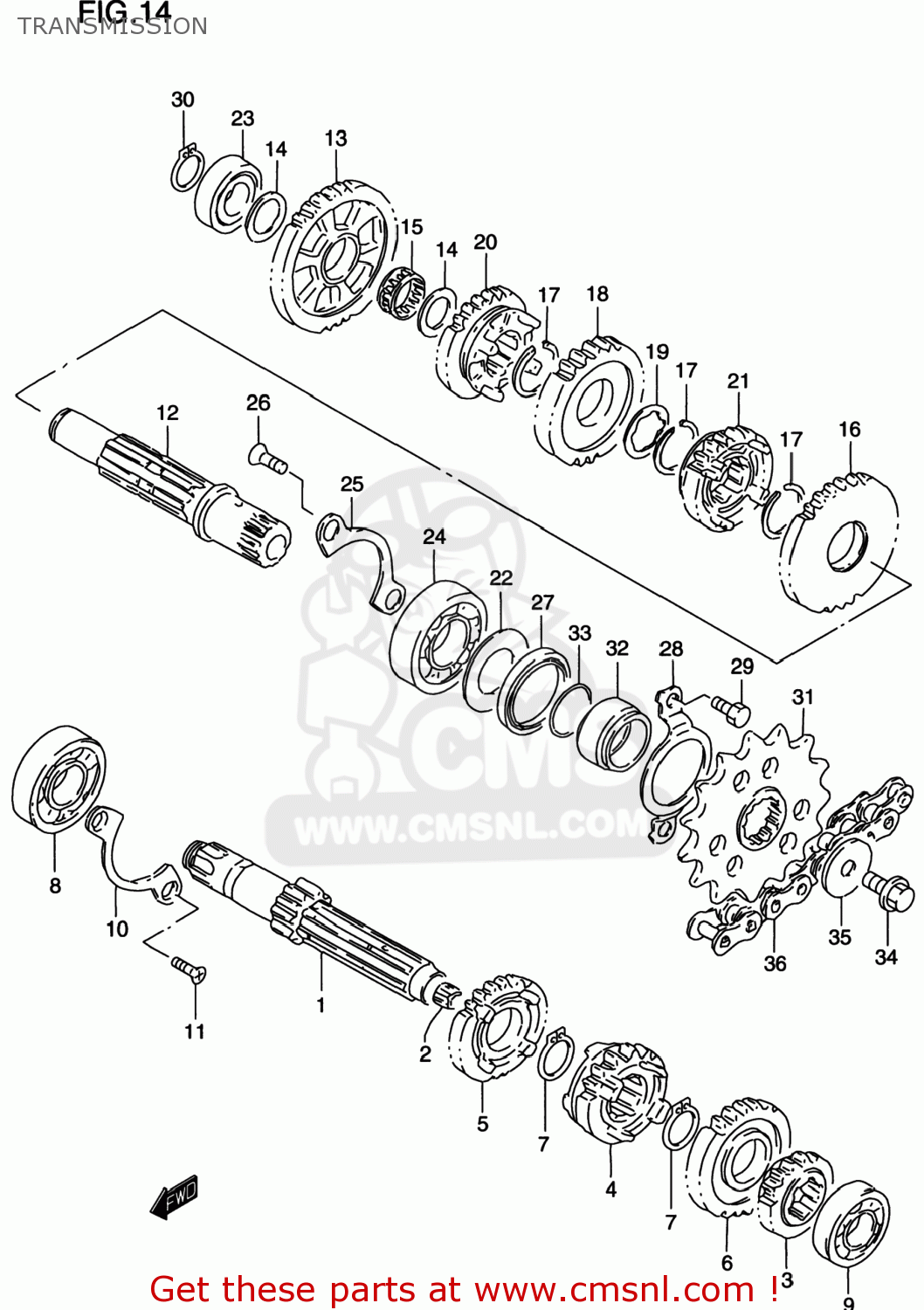

Transmission diagram DR200SE 1998 (W) USA (E03)
TRANSMISSION DR200SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412042A00
ref: 1-1
24120-42A01
SHAFT,COUNTER (NT:11)
€ 246.50
1-2
2412042A01
ref: 1-2
SHAFT,COUNTER(NT:11)
€ 246.50
2
2412538201
ref: 2
BUSH
€ 3.50
3
2422142A02
ref: 3
GEAR,2ND DRIVE
€ 56.00
4-1
2423142A02
ref: 4-1
24231-42A03
GEAR,THIRD DRIVE (NT:16)
€ 66.00
4-2
2423142A03
ref: 4-2
GEAR,3RD DRIVE(NT:16)
€ 66.00
5
2424142A00
ref: 5
GEAR,4TH DRIVE
€ 51.50
6
2425142A03
ref: 6
24251-42A10
GEAR,FIFTH DRIVE
€ 57.50
7
0938020009
ref: 7
CIRCLIP
€ 2.00
8
0926220069
ref: 8
BEARING(20X47X14)
€ 28.00
9
0812360027
ref: 9
BEARING
€ 16.00
10
2474105200
ref: 10
RETAINER,DRIVE SHAFT BEARING
€ 3.50
11
0212206123
ref: 11
02122-0612A
SCREW
€ 3.00
12
2413042A20
ref: 12
SHAFT,DRIVE
€ 0.00
13
2431142A00
ref: 13
GEAR,1ST DRIVEN
€ 59.50
14-1
0821117261
ref: 14-1
09181-17167
WASHER,THRUST
€ 3.00
14-2
0918117167
ref: 14-2
SHIM(17X26X1)
€ 3.00
15
0926317004
ref: 15
BEARING(17X21X9.8)
€ 7.00
16-1
2432042A02
ref: 16-1
24320-42A03
GEAR,SECOND DRIVEN (NT:29)
€ 49.00
16-2
2432042A03
ref: 16-2
GEAR,2ND DRIVEN(NT:29)
€ 49.00
17
0938022006
ref: 17
CIRCLIP
€ 3.00
18-1
2433142A01
ref: 18-1
24331-42A02
GEAR,THIRD DRIVEN (NT:23)
€ 50.50
18-2
2433142A02
ref: 18-2
GEAR,3RD DRIVEN(NT:23)
€ 50.50
19
0916722011
ref: 19
WASHER,LOCK
€ 3.00
20-1
2434142A01
ref: 20-1
24341-42A02
GEAR,FOURTH DRIVEN (NT:23)
€ 73.50
20-2
2434142A02
ref: 20-2
GEAR,4TH DRIVEN(NT:23)
€ 73.50
21
2435142A02
ref: 21
GEAR,5TH DRIVEN
€ 49.00
22
2435942A00
ref: 22
WASHER,OIL SEALING
€ 3.00
23
0926417001
ref: 23
BEARING(17X36X12)
€ 27.00
24
0926222018
ref: 24
BEARING(22X50X14)
€ 17.50
25
2474105200
ref: 25
RETAINER,DRIVE SHAFT BEARING
€ 3.50
26
0212206123
ref: 26
02122-0612A
SCREW
€ 3.00
27
0928330053
ref: 27
SEAL,OIL(30X40X6)
€ 8.00
28
2475142A01
ref: 28
24751-42A10
RETAINER,DRIVESHAFT O
€ 2.50
29
0150006103
ref: 29
01500-0610B
BOLT
€ 2.00
30
0833131176
ref: 30
08331-3117A
CIRCLIP,17MM
€ 2.00
31
2751042A10
ref: 31
SPROCKET,ENGINE
€ 26.00
32
2753142A00
ref: 32
SPACER,ENGINE SPROCKET
€ 12.00
33
0928021008
ref: 33
O RING(D:2.5,ID:21)
€ 2.00
34
0155008123
ref: 34
01550-0812A
BOLT
€ 3.50
35
0821108283
ref: 35
WASHER
€ 2.50
36
2760014A10112
ref: 36
CHAIN(DID520VC5,112LE)
€ 110.50
